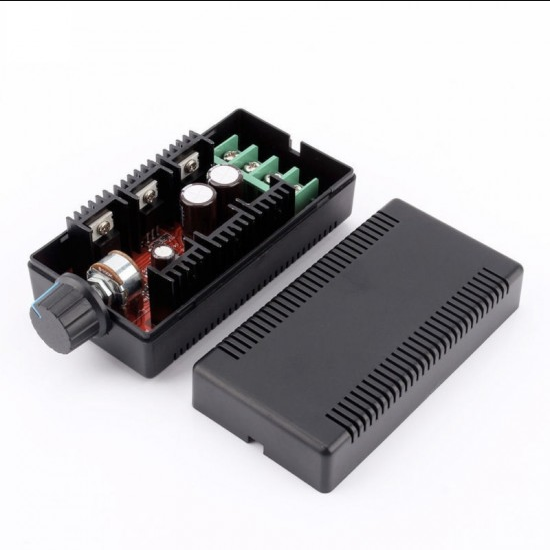

12V 24V 48V 40A DC Motor Speed Regulator PWM Controller 2000W is a PWM speed controller which enables you to control the speed of those DC brush motors smoothly. It's great for applications like car motors, DC heater, bulb etc. providing nice adjustment of motor speed. Its best speed controller for higher current rating and wide voltage range with best reliability.
Voltage range can be utilize in engineering system and e-bike motors to speed control.
Features:
PWM Working Principle:
By changing the duty ratio of square wave(output) to adjust average current power from 0-100% on load, thus to change the motor speed or light brightness.
Specifications:
|
Speed Controller Model |
40A PWM DC Motor Speed Regulator |
|
Operating Voltage(VDC) |
10V to 50V. |
|
Peak Current (A) |
40 |
|
Control Power |
0.01-2000W |
|
Working Voltage 12V |
12V*40A=480W(max) |
|
Working Voltage 24V |
24V*40A=960W(max) |
|
Working Voltage 36V |
36V*40A=1440W(max) |
|
Working Voltage 50V |
50V*40A=2000W(max) |
|
Quiescent Current |
0.025A |
|
PWM Regulation range |
5-100% |
|
PWM Frequency |
12khz |
|
Operating Temperature |
-20 ~40 DegC |
|
Module Size |
90 x 51mm |
|
Case size |
103 x 53 x 35 mm |
|
Weight |
95 gm |
Main Applications:
Package includes:
