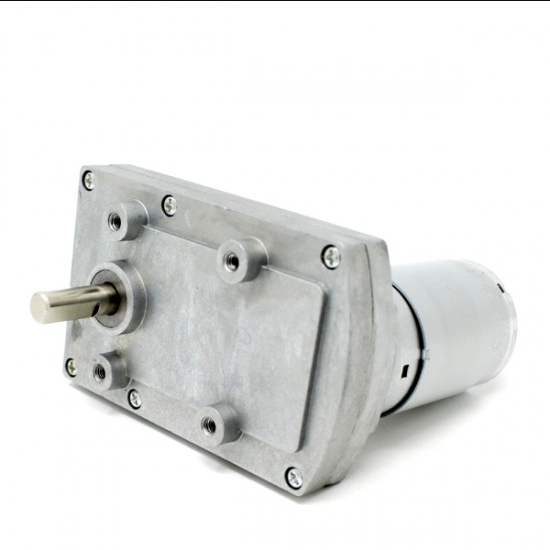

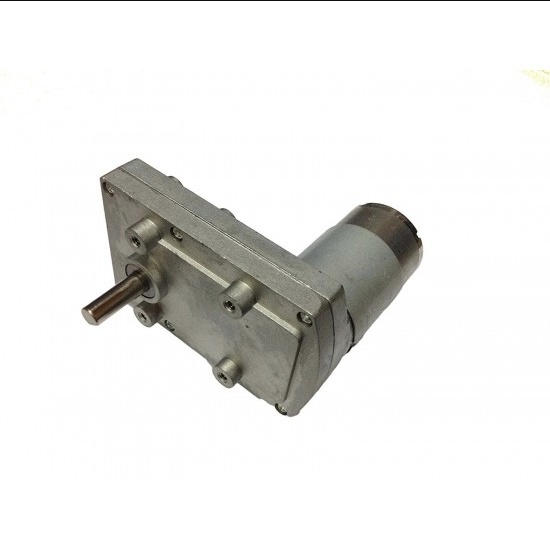

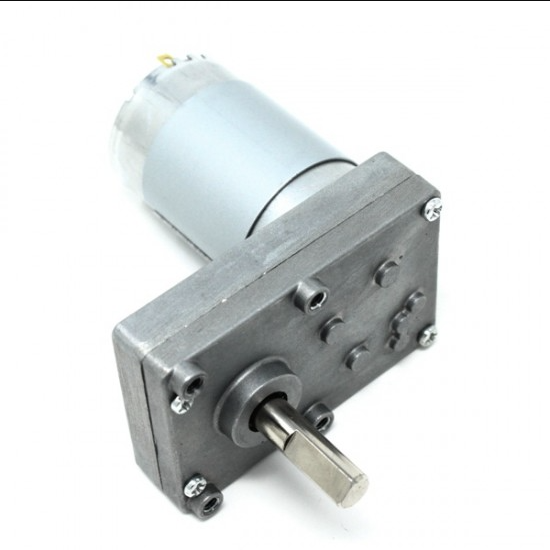

12v DC Square Gear / Geared Motor 150 RPM - High Torque is a very high torque motor which should be used to make big robots or robotized platform. Gear box is built to handle the stall torque produced by the motor. Drive shaft is supported from with metal bushes.
FEATURES:
Specifications:
|
Operating Voltage |
12 V DC |
|
No Load Current |
≤220 mA |
|
No load Speed |
150 RPM (at 12V) |
|
Full Load Current (mA) |
≤1300 |
|
Rated Current |
≤4800 mA |
|
Rated Torque (Kg-cm) |
20 |
|
Shaft Length (mm) |
27 |
|
Shaft Diameter (mm) |
8 |
|
Length (mm) |
92 |
|
Dimension Overall |
70 X 70 (Sq.) X 90 (Length) |
|
Mounting Holes |
M5 threading (60 X 60 Square) |
|
Weight (gm) |
490 |
Application:
Package Includes:
| Product Name | 12V DC Square Gear / Geared Motor 150 RPM - High Torque |
| Minimum Order | 0 |
| Shipping Cost | 60 |
| GST | 18% Including |
