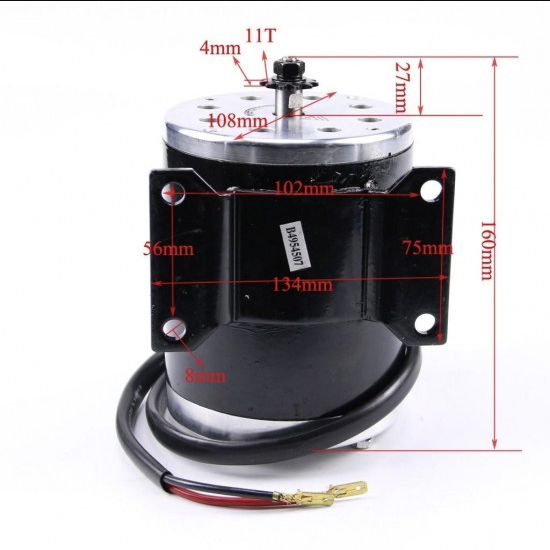

500W 24V DC 2500 RPM Motor for Scooter Bike Go-Kart Mini-Bike E-ATV MY1020 motor work with some extreme or Razor Electric scooter, Mini bike or Go-kart using a 500W motor. Should also work with any other brand with similar specs in motor.
Specification:
|
Model |
MY1020 |
|
Motor Type |
Brushed Motor Permanent Magnet |
|
Reversible |
Yes |
|
Operating Power |
500 W |
|
Operating Voltage |
DC 24V |
|
Rated Current(A) |
Rated: 27.4A, No Load: 2.5A. |
|
Rated Speed(RPM) |
2500 |
|

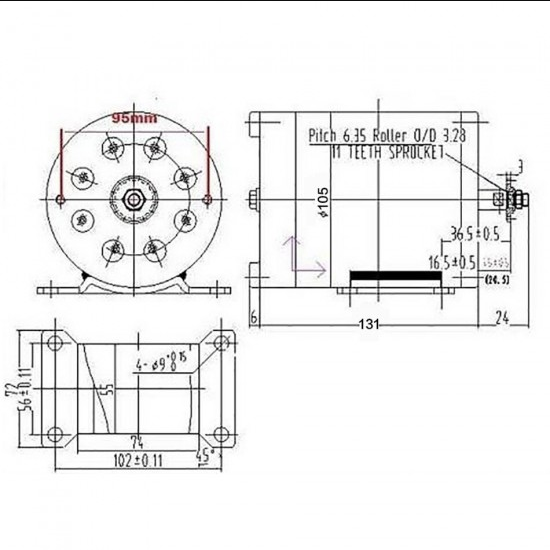

Number of teeth, Pitch |
11 teeth, Pitch 6.35 #25 Chain |
|
Height (from the shaft center axis to the bottom of the base plate) |
60 mm |
|
Rated Torque |
190 N-cm |
|
Efficiency |
≥75%. |
|
Cable length (cm) |
50 |
|
Length (mm) |
160 |
|
Width (mm) |
120 |
|
Height (mm) |
110 |
|
Weight (Kg) |
4.1 |
Package Includes :
1 x 500W 24V DC 2500 RPM Motor for Scooter E-Bike Go-Kart Mini-Bike E-ATV MY1020
| Product Name | 500W 24V DC 2500 RPM Motor for Scooter E-Bike Go-Kart Mini-Bike E-ATV MY1020 |
| Minimum Order | 0 |
| Shipping Cost | 60 |
| GST | 18% Including |
