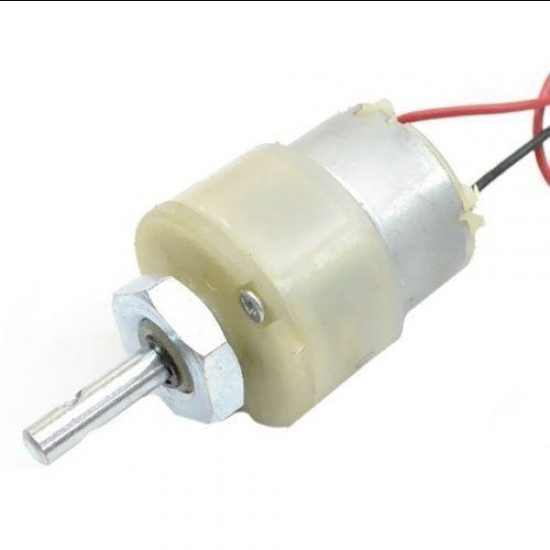

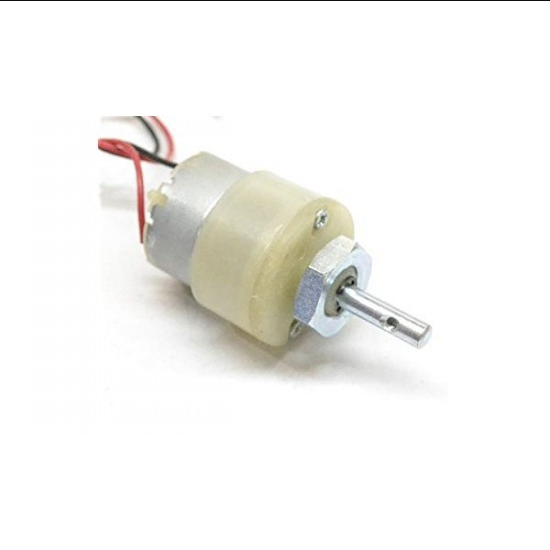

Center Shaft Geared motors specifically designed for robotic applications offer a wide variety of options. 6 RPM Center Shaft DC Motor is high quality low cost DC geared motor used for robotic applications normally. Nut and threads on shaft are there to easily connect the motor to chassis or other fixture and internal threaded hole on shaft make easy for connecting it to wheel.
6 RPM 12V DC geared motors widely use for robotics applications. Very easy to use and available in standard size. Also, you don’t have to spend a lot of money to control motors with an Arduino or compatible board. The most popular L298N H-bridge module with on-board voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC or you can choose the most precise motor diver module from the wide range available in our Motor divers category as per your specific requirements.
Features:
Specifications:
|
Gear Material |
Metal |
|
Rated RPM |
6 |
|
Operating Voltage(VDC) |
12 |
|
Rated Torque(kg-cm) |
12 |
|
Stall Torque(Kg-Cm) |
20 |
|
Load Current(A) |
0.3 |
|
No-Load Current |
60mA |
|
Gearbox Diameter (mm) |
35 |
|
Motor Diameter(mm) |
30 |
|
Motor Length(mm) |
72 |
|
Shaft Diameter (mm) |
6 |
|
Shaft Length (mm) |
22 |
|
Weight (gm) |
80 |
Package Includes:
| Product Name | 6 RPM 12V Center Shaft DC Gear Motor |
| Minimum Order | 0 |
| Shipping Cost | 60 |
| GST | 18% Including |
