This 7 inch Official Raspberry Pi Display with Capacitive Touchscreen gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects.

The 800 x 480 display connects via an adapter board which handles power and signal conversion. Only two connections to the Pi are required; power from the Pi’s GPIO port and a ribbon cable that connects to the DSI port present on all Raspberry Pis (except Raspberry Pi Zero and Zero W).  Touchscreen drivers with support for 10-finger touch and an on-screen keyboard will be integrated into the latest Raspbian OS for full functionality without a physical keyboard or mouse.

Features:

• Turn your Raspberry Pi into a touch screen tablet, infotainment system, or standalone device.
• Truly interactive – the latest software drivers will support a virtual ‘on-screen’ keyboard, so there is no need to plug in a keyboard and mouse.
• Make your own Internet of Things (IoT) devices including a visual display. Simply connect your Raspberry Pi, develop a Python script to interact with the display, and you’re ready to create your own home automation devices with touch screen capability.
• A range of educational software and programs available on the Raspberry Pi will be touch enabled, making learning and programming easier on the Raspberry Pi.
• Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port.

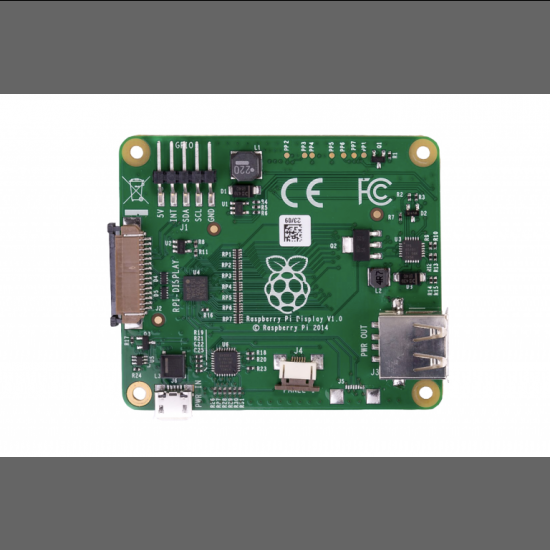

• Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi.
• Will require the latest version of Raspbian OS to operate correctly.

Specifications:

Package Includes:

• 1 x 7” Touchscreen Display.
• 1 x Adapter Board.
• 1 x DSI Ribbon cable.
• 4 x stand-offs and screws (used to mount the adapter board and Raspberry Pi board to the back of the display.
• 4 x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the 2Amp power is shared across both units).

Useful Links:

• Build Instructions
