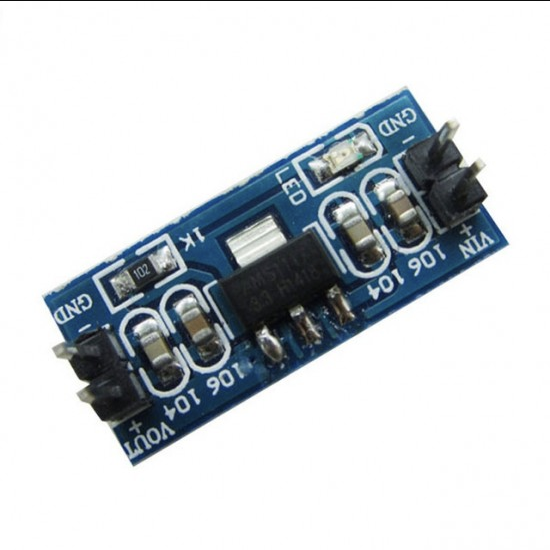

This power supply module is based on the AMS1117 5V regulator. It is capable of regulating a wide range of input voltage (6.0 to 12V) down to a fixed 5V output at up to 1A.  Standard 0.1″ header pins provide a means of connecting to its input and output terminals.

These header pins have also been conveniently placed so that the module can be inserted face down into the standard.

Features :

• Onboard AMS1117 chip.
• Onboard power indicator to indicate power is turned on: Red LED.
• Output voltage interface, connection to facilitate the experimental.
• Small Compact Size, 4Pin Type, Breadboard Friendly.
• 2P single row pin input and output for easy connection
• Dual-panel design, the layout is nice

Specifications:

Package Includes :

• 1 x AMS1117 5V Step-Down Power Supply Module (Unsoldered).

Note:

• Do not exceed absolute maximum input voltage (12.5V) or output current. Exceeding maximum specifications can result in permanent damage to this module or any connected devices. Jumper connector is not soldered.
