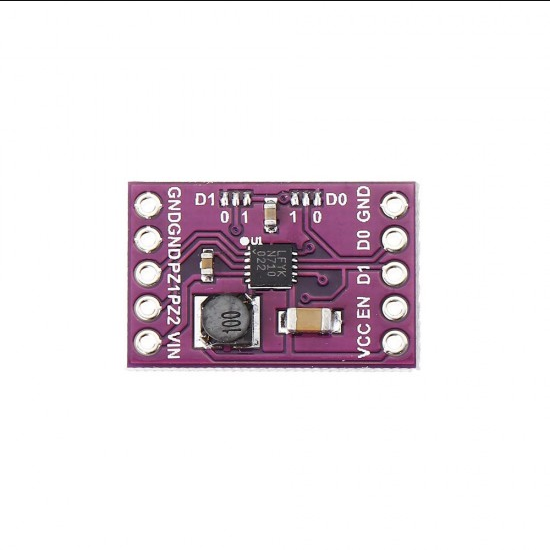

CJMCU-3588 LTC3588 Energy Harvester Breakout integrates a low-loss full-wave bridge rectifier with a high-efficiency buck converter to form a complete energy harvesting solution optimized for high output impedance energy sources such as piezoelectric transducers. An ultralow quiescent current under voltage lockout (UVLO) mode with a wide hysteresis window allows charge to accumulate on an input capacitor until the buck the converter can efficiently transfer a portion of the stored charge to the output. In regulation, the LTC3588-1 enters a sleep state in which both input and output quiescent currents are minimal. The buck converter turns on and off as needed to maintain regulation.

Four output voltages, 1.8V, 2.5V, 3.3V and 3.6V, are pin selectable with up to 100mA of continuous output current; however, the output capacitor may be sized to service a higher output current burst. An input protective shunt set at 20V enables greater energy storage for a given amount of input capacitance.

Features:

• 950nA Input Quiescent Current (Output in Regulation – No Load)
• 450nA Input Quiescent Current in UVLO
• 2.7V to 20V Input Operating Range
• Integrated Low-Loss Full-Wave Bridge Rectifier
• Up to 100mA of Output Current
• Selectable Output Voltages of 1.8V, 2.5V, 3.3V, 3.6V
• High-Efficiency Integrated Hysteretic Buck DC/DC
• Input Protective Shunt – Up to 25mA Pull-Down at VIN ≥ 20V
• Wide Input Undervoltage Lockout (UVLO) Range

Applications:

• Piezoelectric Energy Harvesting
• Electro-Mechanical Energy Harvesting
• Wireless HVAC Sensors
• Mobile Asset Tracking
• Tire Pressure Sensors
• Battery Replacement for Industrial Sensors
• Remote Light Switches
• Standalone Nanopower Buck Regulator

Package Includes:

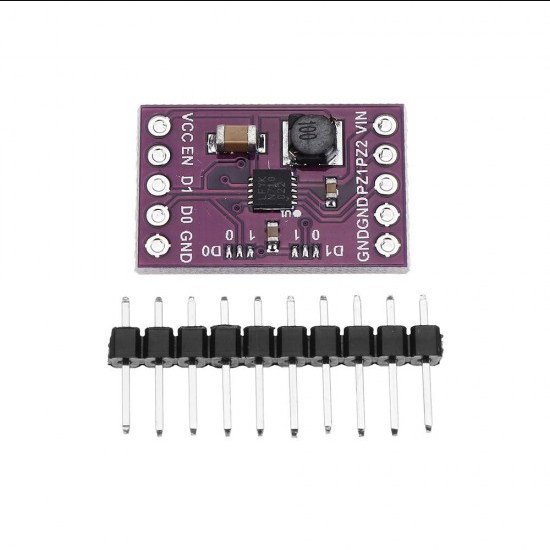

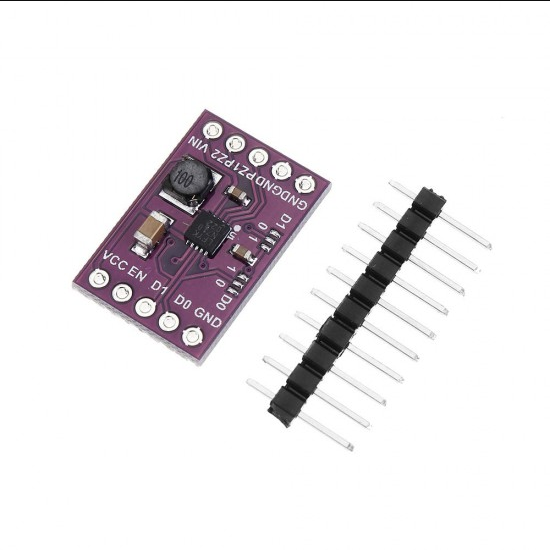

• 1 x CJMCU-3588 LTC3588 Energy Harvester Breakout
