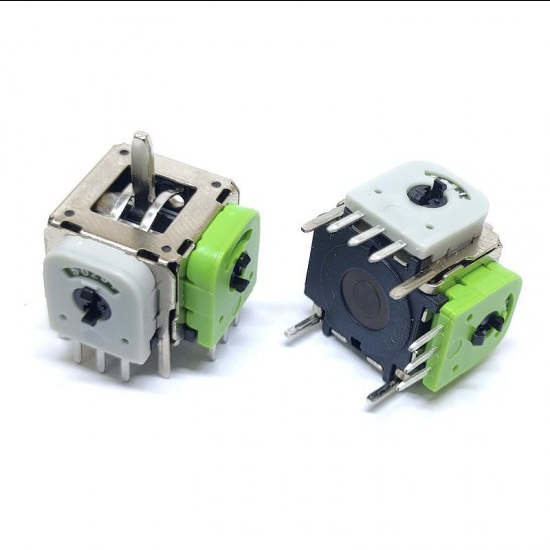

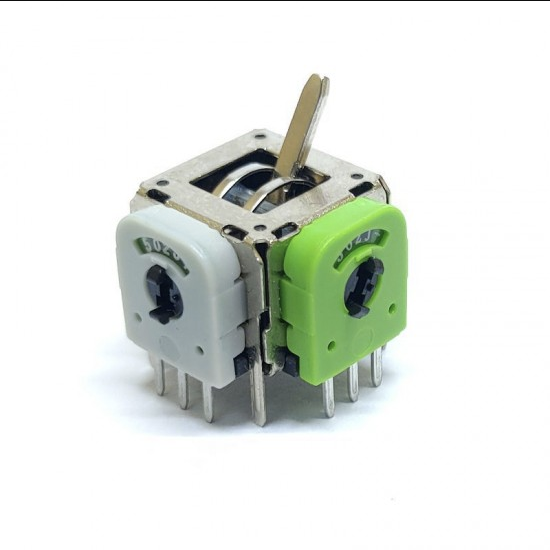

This is a Game Controller Analog Joystick very similar to the ‘analog’ joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply two potentiometers – one for each axis. Pots are ~5k each. This joystick also has a select button that is actuated when the joystick is pressed down. A good replacement for your damaged or non-working 3D joystick axis & thumbstick. It will make your controller work normally again.

Features:

• Model : RJ1313T-55J-HG
• Once achieved a desirable setting, the operator can let go of the control.
• The potentiometer will always return to its resting point.
• The signal output, either in voltage or resistance, is nearly step-less.
• A layer of silver can be added onto the potentiometer substrate, this band of silver can determine whether the potentiometer has returned to its resting point or not, also it widens the tolerance of error for its resting point.

Electrical Characteristics:

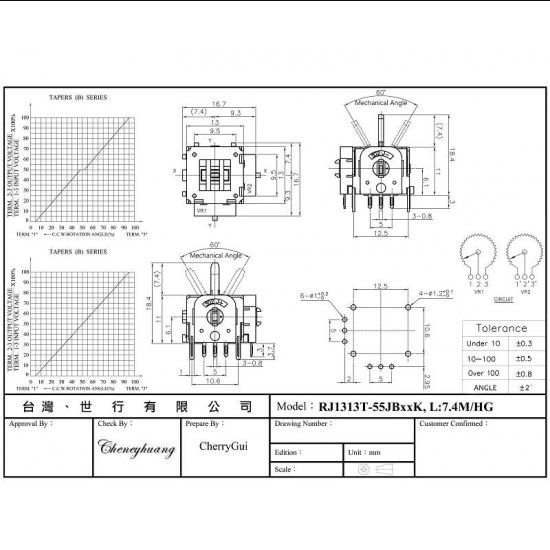

Mechanical Characteristics:

Application:

• Using in game handle for controlling roles that move around. (PlayStation XBOX Nintendo)
• Remote control car, directional control for ships, and cruising speed setting.
• Remote control aircraft altitude and directional control and cruising speed setting.
• Disable vehicle's steering control and cruising speed setting.

Package Includes:

• 1 x Game Controller Analog Joystick 5k
