Max232 RS232 to TTL Serial Interface Module

Max232 RS232 to TTL Serial Interface Module

By Anil Electronics
Anil373

76.7

69

quantity
add to cart buy now
Related Tags
Wireless and IOTs Anil Electronics Interface Converter Modules Max232 RS232 to TTL Serial Interface Module
share it

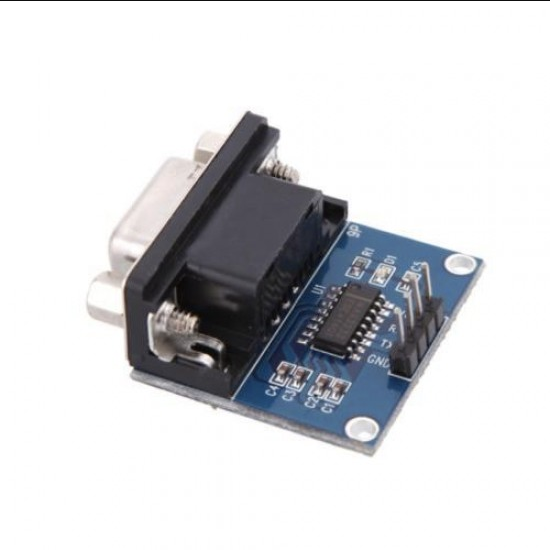

Max232 RS232 to TTL Serial Interface Module is a board with the MAX3232 transceiver integrated circuit (IC). It facilitates serial communication between TTL and RS232 ports by providing the necessary electrical signal conversion.

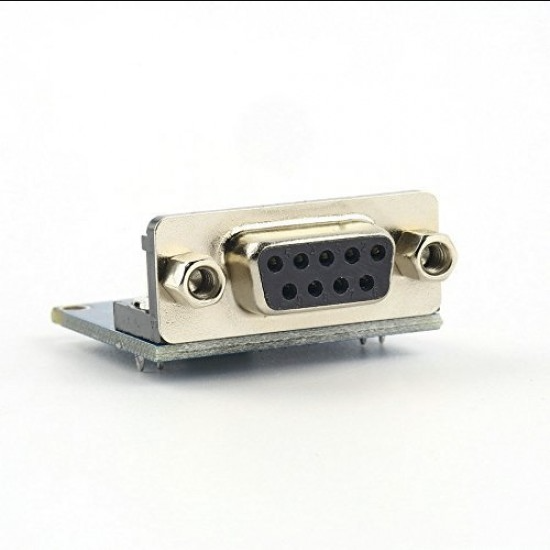

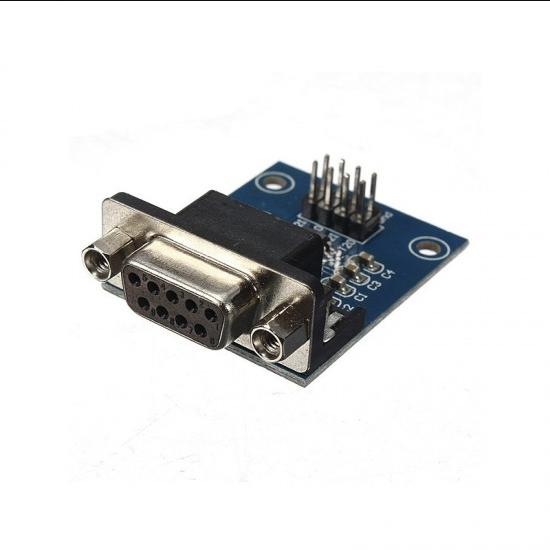

These boards have a DB9 connector soldered at one end, and four header pins with jumper cables at the other end. The jumper cables enable the user to connect the wires to a breadboard or a microcontroller project board, whilst the DB9 connects directly to a COM port of a computer. This module can be used to the serial port of microcontroller module expand DVD, router, hard drive and other equipment to upgrade.

Features :

  • It is widely used in radio modification, phone flash, XBOX360 flash, GPS, vehicle detection, DVD flash, hard disk repair set-top box upgrade.
  •  It can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, N+-2EC MCU
  • Pre-assembled compact size board
  • Suitable for use with most microcontrollers
  • Operates up to 250 kbit/s
Specifications:


IC Chip

MAX3232

Operating Voltage

DC 3.3~5.5 V

Length (mm)

45

Width (mm)

32

Height (mm)

15

Weight (gm)

12

Package Includes :

  • 1 x Max232 RS232 to TTL Serial Interface Module

Product Name Max232 RS232 to TTL Serial Interface Module
Minimum Order 0
Shipping Cost 60
GST 18% Including
