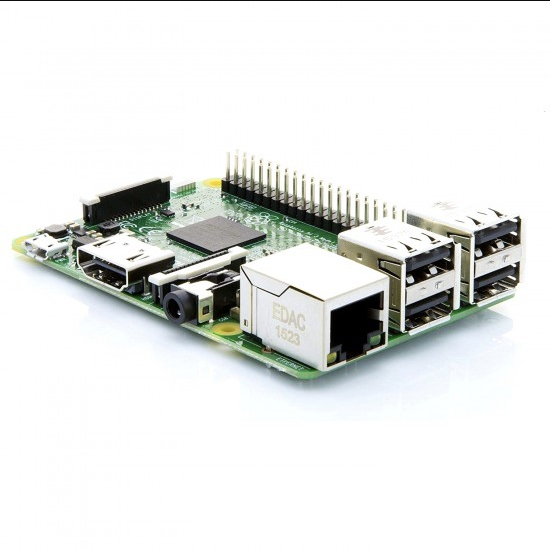

Raspberry Pi 3 – Model B quad-core 1.2GHz 64Bit SoC and onboard WiFi and Bluetooth is best product among raspberry pi family. The Raspberry Pi 3 – Model B Original is a third generation product which maintains the same popular board format as other raspberry pi modules, but it has faster 1.2GHz 64Bit SoC, and onboard WiFi and Bluetooth

Raspberry Pi 3 Model B ARMv8 w/ 1GB RAM provides the same Pi features as before but with double the ram and a much faster processor. The Pi 3 has two major upgrades. The first is a next-generation Quad-Core Broadcom BCM2837 64-bit ARMv8 processor. This processor has speeds of up to 1.2GHz compared to the previous 900MHz on the Pi 2. The second upgrade is the addition of a built-in BCM43143 WiFi chip, allowing the Pi 3 to go wireless without additional peripherals. No more WiFi adapters. The Raspberry Pi 3 is also an excellent IoT solution with onboard Bluetooth Low Energy (BLE).

Back-Compatibility note: The Raspberry Pi 3 Model B original quad-core 1.2GHz 64Bit SoC and onboard WiFi and Bluetooth has the same footprint and layout as the previous Model 2/B+ version, so will fit all Model 2/B+ items. However, the addition of a WiFi & Bluetooth Antenna has resulted in the ACT and PWR LEDs being moved to the opposite side of the SD card slot. Cases for the 2/B+ with LED light pipes will fit the new RPi 3, but the light pipes will not match up with the LEDs.

Features :

• Processor:

  • Broadcom BCM2387 chipset.
  • 1.2GHz Quad-Core ARM Cortex-A53 (64Bit)
  • 802.11 b/g/n Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)

• GPU:

  • Dual-Core VideoCore IV? Multimedia Co-Processor. Provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode.
  • Capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure

• Operating System:

  • Boots from Micro SD card, running a version of the Linux operating system or Windows 10 IoT

Connectors and Ports:

• Ethernet:

  • 10/100 BaseT Ethernet socket

• Video Output:

  • HDMI (rev 1.3 & 1.4)
  • Composite RCA (PAL and NTSC)

• Audio Output:

  • Audio Output 3.5mm jack
  • HDMI
  • 4 x USB 2.0 Connector

• GPIO Connector:

  • 40-pin 2.54 mm (100 mil) expansion header: 2×20 strip
  • Providing 27 GPIO pins as well as +3.3 V, +5 V and GND supply lines

• Camera Connector:

  • 15-pin MIPI Camera Serial Interface (CSI-2)

• Display Connector:

  • Display Serial Interface (DSI) 15 way flat flex cable connector with two data lanes and a clock lane

• Memory Card Slot:

  • Push/pull Micro SDIO

Package Includes :

• 1x Raspberry Pi 3 – Model B with On-board WiFi and Bluetooth

Useful Links :

• Raspberry Pi 3B Details
• Raspberry Pi Software Guide.
• GPIO Header Pinout
• Creating a Boot Card
• Raspberry pi 3 FAQ
• Downloads from Raspberry Pi
