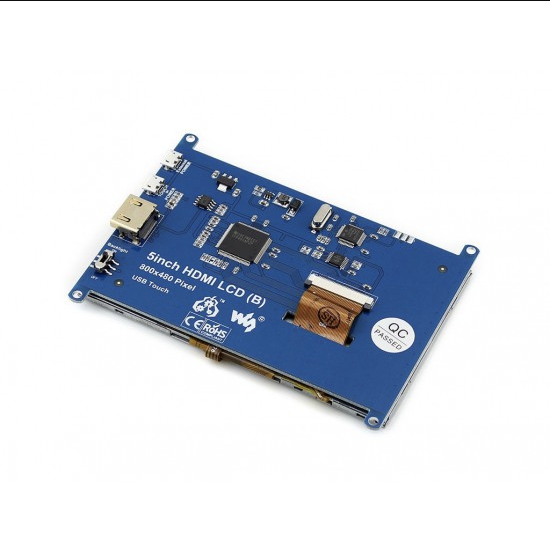

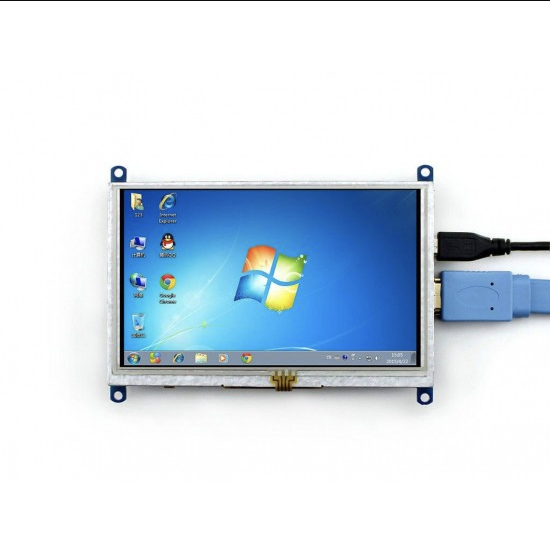

Waveshare 5inch HDMI 800X480 Resistive LCD Touch Screen Display for Raspberry Pi is a 5" Capacitive Touch Screen LCD enhances the UI experience in any project. It supports various systems such as Raspberry Pi, Banana Pi, Banana Pro, BeagleBone Black etc. The built in HDMI interface enables the display to work as computer monitor just like any other HDMI screen.

Display comes with pre-loaded Raspbian driver and Ubuntu image. While the display is controlled over the HDMI interface the touch control is done via USB interface. To reduce the power consumption backlight of the display can be switched on/off as per user preference.

Specification:

• 800x480 high resolution
• Resistive touch control
• Supports Raspberry Pi
• Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
• Supports BB Black, comes with Angstrom image
• For other mini-PCs, driver is required and should be developed by users
• Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen
• HDMI interface for displaying, USB interface for touch control
• Back light control to lower power consumption

Note: Touch function is unavailable when the display module is controlled via HDMI interface alone.

Package Includes:

• 1 x Waveshare 5inch HDMI LCD (B) 800X480 Resistive Touch Screen
