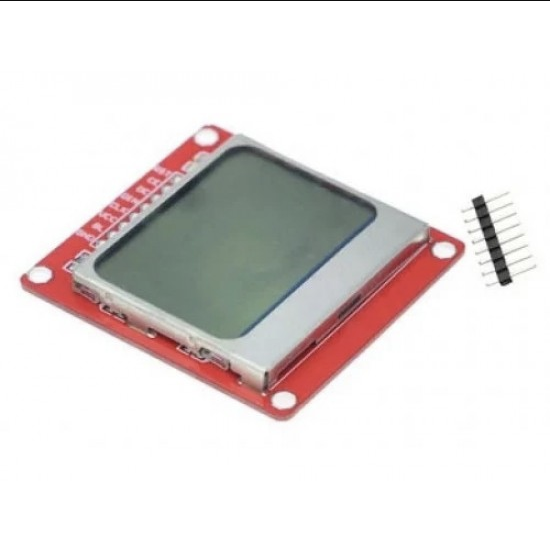

The name of this product itself is enough to explain its origin. Yes of course !!! this LCD module was used in old Nokia 5110/3310 cell phones. Now its been widely used by hobbyists for graphics, text etc.

Nokia 5110 LCD Display Module is a low-cost monochrome LCD module comprised of 84x48 pixels that can be used to display rich graphic and text content. Though it's an industrial module, this LCD display is extremely easy to use. This module is are vision that accepts 3-5V input. So no extra level shifter is needed. To have full control, you just need 5 pins. And as a classic display module among opensource communities, there are handful related tutorials available over the Internet. So there is no need to panic even if you just got your foot in the door.

Though it’s an industrial module, this LCD display is extremely easy to use. The Nokia 5110 is a basic graphic LCD screen for lots of applications. It was originally intended for as a cell phone screen.

This Nokia 5110 LCD Display Module is mounted on an easy to solder PCB. The Nokia 5110 LCD Module uses a Philips PCD8544 LCD driver, which is designed for mobile phones.

Nokia 5110 LCD Display Module is a low-cost monochrome LCD module comprised of 84 X 48 pixels that can be used to display rich graphics and text content. This module is a revision that accepts 3-5V input. So no extra level shifter is needed.

It uses the PCD8544 controller, which is the same used in the Nokia 3310 LCD. The PCD8544 is a low power CMOS LCD controller/driver, designed to drive a graphic display of 48 rows and 84 columns. All necessary functions for the display are provided in a single chip, including on-chip generation of LCD supply and bias voltages, resulting in a minimum of external components and low power consumption. The PCD8544 interfaces to microcontrollers through a serial bus interface.

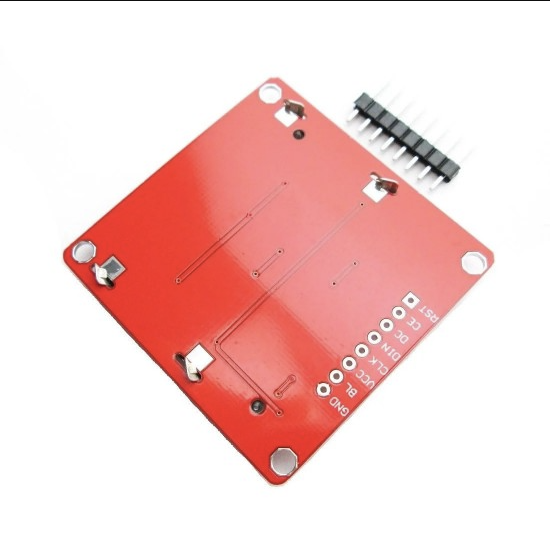

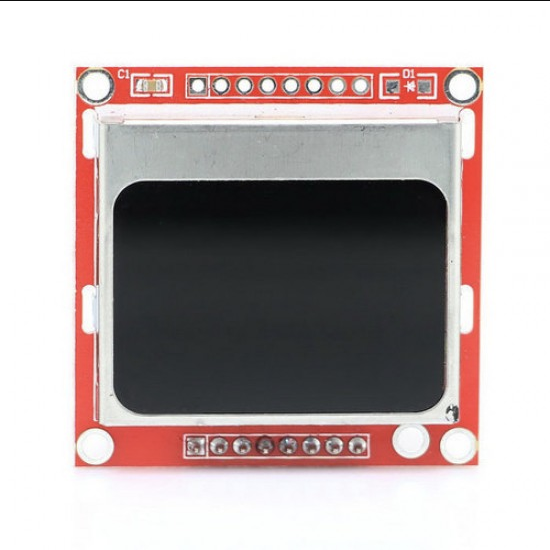

Pin Configuration:-

• RST– reset
• CE– chip selection
• DC– data/commands choice
• DIN– serial data line
• CLK– serial Clock Speed.
• VCC– 3.3V
• LIGHT– backlight control terminal
• GND– power negative

Features :

• 84 X 48 dot matrix LCD, can show 4 lines of characters.
• Use serial interface communicate with the master processor, the number of interface signal line reduced greatly, only 8 signal lines including power and GND.
• Support different types of MCU, such as the Arduino, AVR, SPI, MCS51 and so on.
• Transfer rate up to 4Mbps, can full speed write display data without waiting time.
• Can use the conductive glue to connect the module to the printed board, without cables. The metal hooks on the module can fix the module on the printed board, which is very easy to install and replace.
• LCD controller/driver chip has been bound to LCD chip, the volume of LCD is small.
• Low power supply, the working current in a normal situation is lower than 200µA and has the power-down mode.
• \”LIGHT\” linked with GND, the backlight to be lit.
• Need you to compress the screen and PCB tighter, might be got loose after the delivery.
• Use a 5 to 7V controller, otherwise, the display could be quite vague.

Specifications:

Package Includes :

• 1 x Nokia 5110 LCD Display.

Note: Nokia 5110 LCD Display Module comes in Red or Blue PCB randomly.
