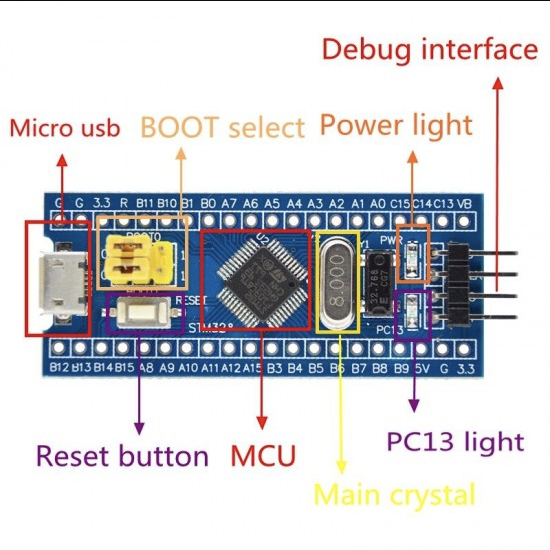

The STM32F1038T6 board is a low cost STM32 microcontroller development board for learners. This board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F103C8T6.

Specifications:

• 64 or 128 K bytes of Flash memory
• 20 K bytes of SRAM
• 2.0 to 3.6 V application supply and I/Os
• 4-to-16 MHz crystal oscillator
• Internal 40 kHz RC
• 32 kHz oscillator for RTC with calibration
• 2 x 12-bit, 1μs A/D converters (up to 16 channels)
• 7-channel DMA controller
• Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
• Up to 2 x I2C interfaces (SMBus/PMBus)
• Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
• Up to 2 SPIs (18 Mbit/s)
• CAN interface (2.0B Active)

Package Includes:

• 1 x STM32F103C8T6 system board single chip core board STM32 ARM
