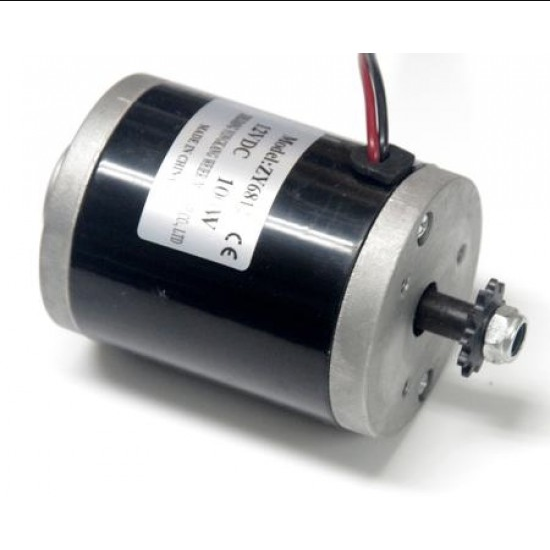

MY6812 100W 12V 2650RPM DC Motor for E-bike bicycle is a unite make motor popular as a scooter motor or general application motor or Electric Bike Motor. Commonly found in 12V scooters or even small kiddies carts and It's also been a proven motor in robotics! Extremely durable and reliable.

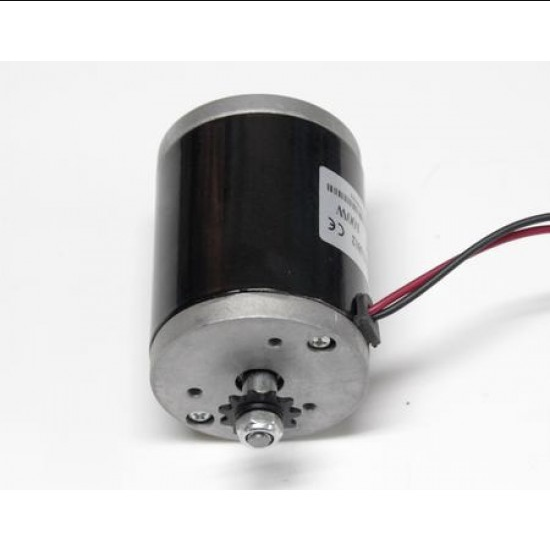

This one is a chain drive type of DC motor for E-bike. Fitted with a 11 tooth sprocket for #25 chain.
Specifications:
|
Model |
MY6812 100W |
|
Operating Power |
100W |
|
Operating Voltage |
12V DC |
|
Rated Current(A) |
No load current : < 1A, Rated current : < 7.0A |
|
Rated Torque |
4 KgCm (0.35N.m) |
|
Gearbox |
No |
|
Efficiency |
>70% |
|
Length of Cable |
25 cm |
|
Rated Speed(RPM) |
3500RPM. |
|
Loaded Speed (RPM) |
2600-2900 RPM |
|
Weight (Kg) |
1.3 |
| Dimensions (LxD) | 120mmx68mm |
Package Includes :
| Product Name | MY6812 12V DC 100W 2750 RPM Electric Motor (Chain) - Unite Make |
| Minimum Order | 0 |
| Shipping Cost | 60 |
| GST | 18% Including |
