MY6812 150W 24V 2750RPM DC Motor for E-Bike Bicycle - Unite Make

MY6812 150W 24V 2750RPM DC Motor for E-Bike Bicycle - Unite Make

By Anil Electronics
Anil856

2795

2160

quantity
add to cart buy now
Related Tags
E-Bike Parts Anil Electronics E-Bike Motors MY6812 150W 24V 2750RPM DC Motor for E-Bike Bicycle - Unite Make
share it

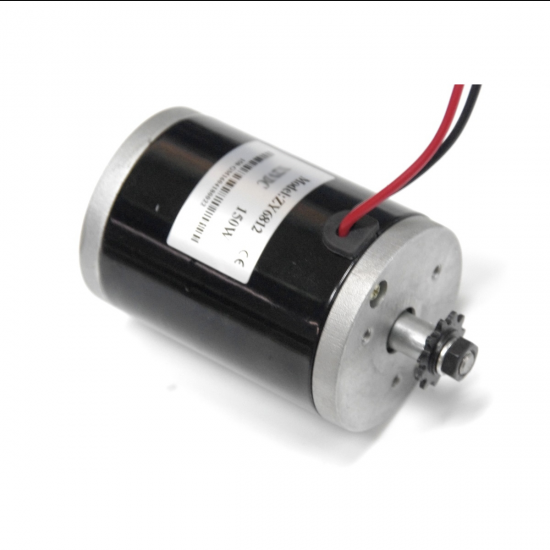

MY6812 150W 24V 2750RPM DC Motor is a Unite make motor popular as a scooter motor or general application motor. Extremely durable and reliable. Commonly found in 24V scooters or even small kiddies carts and It's also been a proven motor in robotics!

100% Ball Bearing construction! The belt drive has the belt sprocket fitted to an 8mm d-cut shaft, that is held together with a circlip and some type of filler glue to stop any movement of the sprocket onto the shaft. The way we remove these is to brace the back of the shaft on the motor and tap the top sprocket to break the beading of the glue, then use two screwdrivers or similar to remove the sprocket. never attempt the brace the motor on the bearings!

It is also possible to brace underneath the sprocket and tap the shaft to push the pulley off that way.

Specifications:


Model

MY6812

Operating Power

150 W

Operating Voltage

24 V

Rated Current(A)

14.3

No-Load Current

1 A

Rated Speed(RPM)

2750

Loaded RPM

2600-3000

Rated Torque

0.56 N-m

Length of Cable

50 cm

Sprocket

9 tooth, #25 bicycle chain

Efficiency

72%

Weight (Kg)

1.4

Package Includes:
  • 1 x MY6812 150W 24V 2750RPM DC MOTOR

Product Name MY6812 150W 24V 2750RPM DC Motor for E-Bike Bicycle - Unite Make
Minimum Order 0
Shipping Cost 60
GST 18% Including
