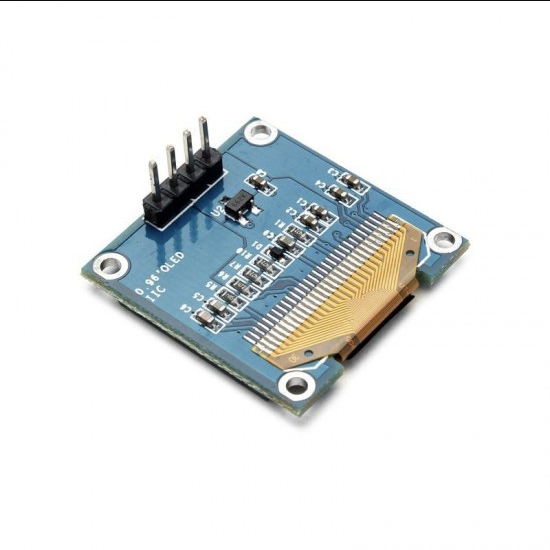

0.96 inch OLED Display Module Yellow-Blue 128X64 - 4 Pin

This is a 0.96 inch OLED Display Module Yellow-Blue 128X64 - 4 Pin. The display module can be interfaced with any microcontroller using SPI/IIC protocols. It is having a resolution of 128x64. The package includes display board,display, 4 pin male header with board.

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

Specifications:

• Size: 0.96
• Resolution: 128X64
• Viewing angle: greater than 160 degrees
• Supported platforms: for arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips
• Low power consumption: 0.04W during normal operation
• Support wide voltage: 3.3V-5V DC
• Working temperature: -30-80 degrees
• Volume: 27MM * 27MM * 4.1MM
• Driver IC: SSD1306
• Communication: IIC, only two I / O ports
• No font: The software takes word modulo
• Backlight: OLED self light, no backlight

Interface:

• VCC: 3.3-5V
• GND: Ground
• SCL: Serial Clock
• SDA: Serial Dat

Package Includes:

• 1 x 0.96 inch OLED module Yellow-Blue 128X64 OLED LCD LED Display Module
