E3D V6 All metal J-head V6 Hotend Full Kit

This is E3D V6 All metal J-head V6 Hotend Full Kit. its All metal J-head Hotend Full Kit, 1.75mm Direct Wade Extruder. The – has been redesigned from the ground up. has invested a lot of time and used all of their experience to design’s latest and greatest HotEnd. With no PEEK or PTFE in hot regions of the HotEnd, you can reach 300°C with the supplied Heating Element.

This Extruder is mainly suitable for the material which needs printing temperature between the range of 200ºC  to 280ºC like ABS and PTEG Although the latest hotend has a PTFE liner inside the hotend this liner is never subjected to high temperatures so there is no risk of damaging the liner through overheating.

The new Heater Block gives the fastest heat-up times and the most responsive temperature control by clamping around the cartridge for maximum thermal contact. The new thermistor placement means you get the most accurate temperature readings with the fastest response. What this means for you the user is that you can go from 20C to 200C in just 65 seconds, temperature control is responsive enough that you can keep the hotend within 0.5C of your set temperature or less with ease.

1.75mm Direct Extruder Full Kit has kept their acerb thermal transition that gives the high-quality printing performance users have come to expect from hot-ends. An acerb thermal break gives better control over filament output so you get the more immediate start and stops when extruding as well as retracts that are more effective in combatting ooze. For the user this means sharper more accurate prints that have less stringing, oozing or blobs on the prints.

Specifications:

• Nozzle Diameter(mm): 0.4
• Wire length: Red: 1m : White: 1m
• Operating Voltage (VDC): 12
• Operating Temperature Range (°C): 200 ~280
• Compatibility: ABS and PTEG
• Feed Diameter: For 1.75 mm Filaments
• Power Consumption (Watt): 40

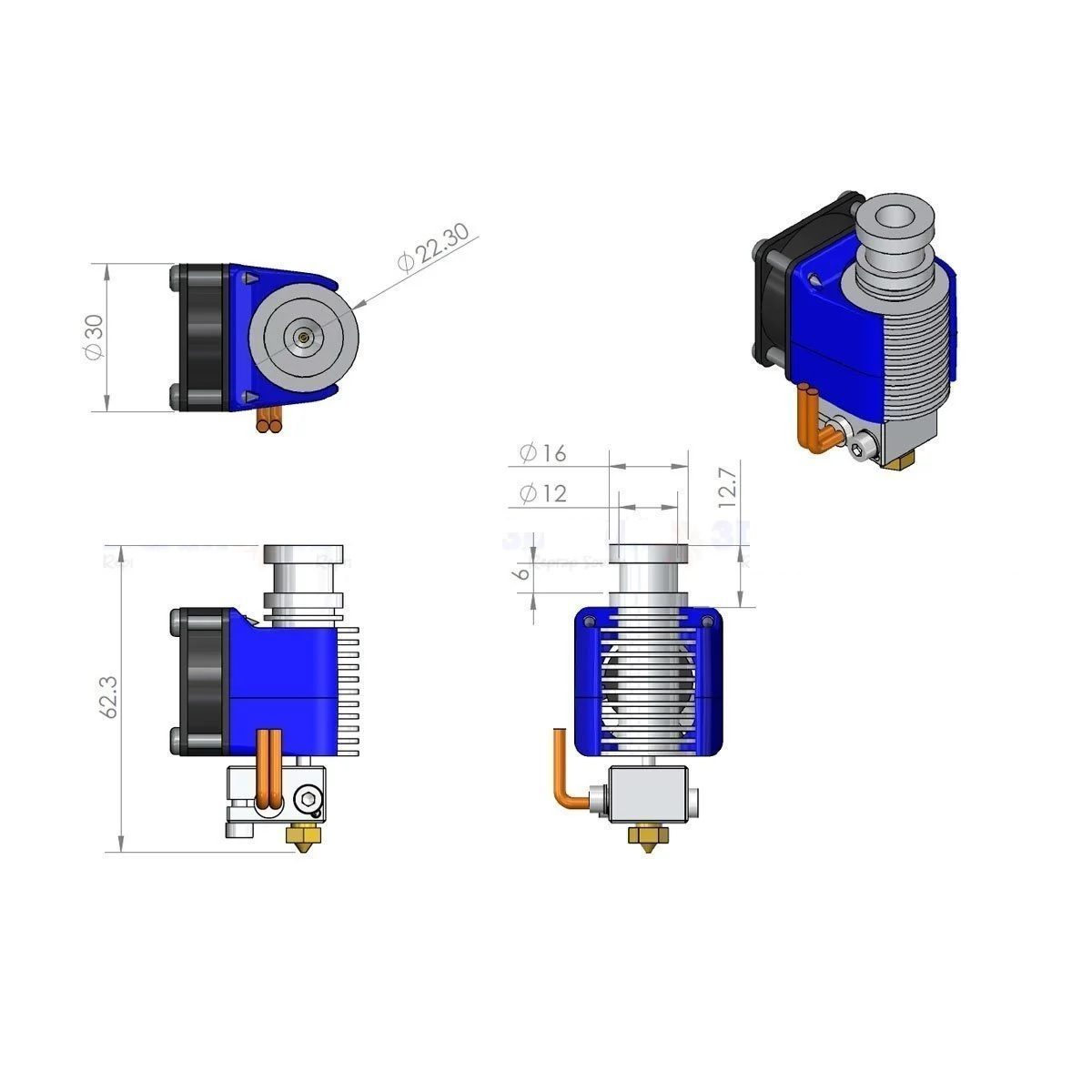

• Dimensions (mm) LxWxH: (DxL) : 40 x 62.14
• Cooler Fan: 30mm x 10mm : Fan cable: 30cm

Package Includes:

• 1 x 1.75mm Direct Extruder
• 1 x Blue Fan Duct (injection moduled PC).
• 1x Cooling Fan(12v).
• 1 x 12v 40w Heater.
• 1 x 100K NTC thermistor.

Note:

• This Wade Extruder is only compatible with 1.75 mm filaments
• It is suitable for a temperature range of 200ºC  to 280ºC like for ABS and PTEG Material
