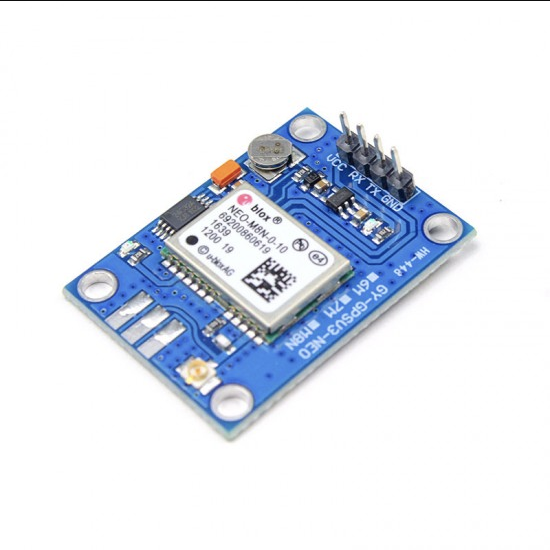

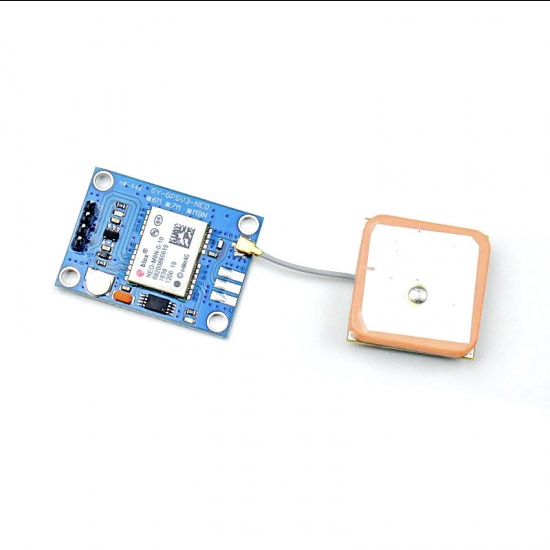

UBlox NEO-M8N GPS Module with Ceramic Active Antenna
memory Technical Parameters & Datasheet Summary
SKU: Anil408-2The UBlox NEO M8N GPS Module with Ceramic Active Antenna GYGPSV1-8M is optimized for cost-sensitive applications, while NEO-M8N/M8Q provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The futureproof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.
The NEO-M8 series of concurrent GNSS modules are built on the high performing u-Blox M8 GNSS engine in the industry proven NEO form factor. NEO-M8N provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.
Note: It is a manual measurement, there may be 2-3 mm error. And item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Features :
- The ceramic antenna provides a very strong signal
- With LED indicator lamp
- The default baud rate: 9600.
- With data backup battery.
- LED signal indicator.
- Compatible with various flight controller module.
- EEPROM save the configuration parameter data when power-down.
- Assistance AssistNow GNSS Online
- AssistNow GNSS Offline (up to 35 days)
- AssistNow Autonomous (up to 6 days)
- OMA SUPL & 3GPP compliant
- Oscillator TCXO
- Built-in RTC crystal
- Anti-jamming Active CW detection and removal.
- Extra onboard SAW bandpass filter
- Memory Flash
- Supported antennas Active and passive
- Odometer Travelled distance
- Data-logger For position, velocity, and time
Specifications:
| Model | Ublox NEO-M8N |
| Receiver Type | 72-channel Ublox M8 engine. |
| Input Supply Voltage (VDC) | 3 ~ 5 |
| Main Chip | Ublox NEO-M8N |
| Sensitivity (dBm) | 156 Cold Start (without aiding): -147 dBm |
| Position Accuracy (Meter) | 2 2.5 |
| Acceleration (g) | <4 |
| Navigation Update Rate | up to 18 HZ. |
| Operating Temperature Range (°C) | -45 to 105 |
| Tracking Sensitivity (dBm) | -161 dBm |
| Co-Ordinate System | WGS-84 |
| Capture Time | 0.1s Average |
| Avg Cold Start Time (s) | 30 |
| Warm Start Time (s) | 1 |
| Boot Time | 1S |
| Maximum Altitude (m) | 18000 |
| Dimensions (mm) LxWxH | Antenna: 26 x 26 x 9 Module: 26 x 36 x 4 |
| Weight (gm) | 17 |
Package Includes :
- 1 x Ublox NEO M8N GPS Module.
- 1 x Ceramic Active Antenna.
Be the first to review this component!
No written reviews yet
Have you built a project with this component? Share your experience!
forum Customer Questions & Answers
No questions yet for this component
Have a question about wiring, pinout, or code? Ask below!
help Ask a Question about this part
Please Log in to submit a question to our engineers.
Frequently Bought Together
Build complete embedded projects with these compatible accessories
Trending Products
Hongli 18650 3.7V Lithium-Ion Recharg...
Espressif ESP32 Development Board with Wifi and Bluetooth
Ai Thinker ESP32 CAM Development Board WiFi+Bluetooth with OV2640 Camera Module
Arduino Uno R3 SMD CH340G ATMega328P Development Board
FD2103S Gate Driver IC Fortior Tech SOP-8
Special Offers
Heat Shrink Sleeve 60mm Black 1meter Industrial Grade (HST)
SN390 Adjustable Printed Circuit Board Holder Frame PCB Soldering Assembly Stand Clamp
Multipurpose Precision Welding Soldering Machine Iron Stand with Magnifying Glass ( Helping Hands)
XH-M229 Desktop PC ATX Power Supply Transfer Module
Portronics Adapto 648 POR-648, 2.4A Quick Charging Dual USB Port with 1M Micro-USB Charging Cable (White)
Related Products & Alternatives
-23%

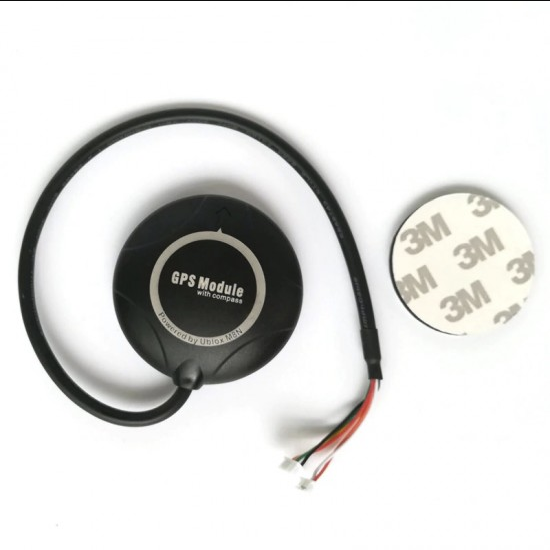

Ublox NEO-M8N GPS Module with Compass for APM with extra connector for Pixhawk
