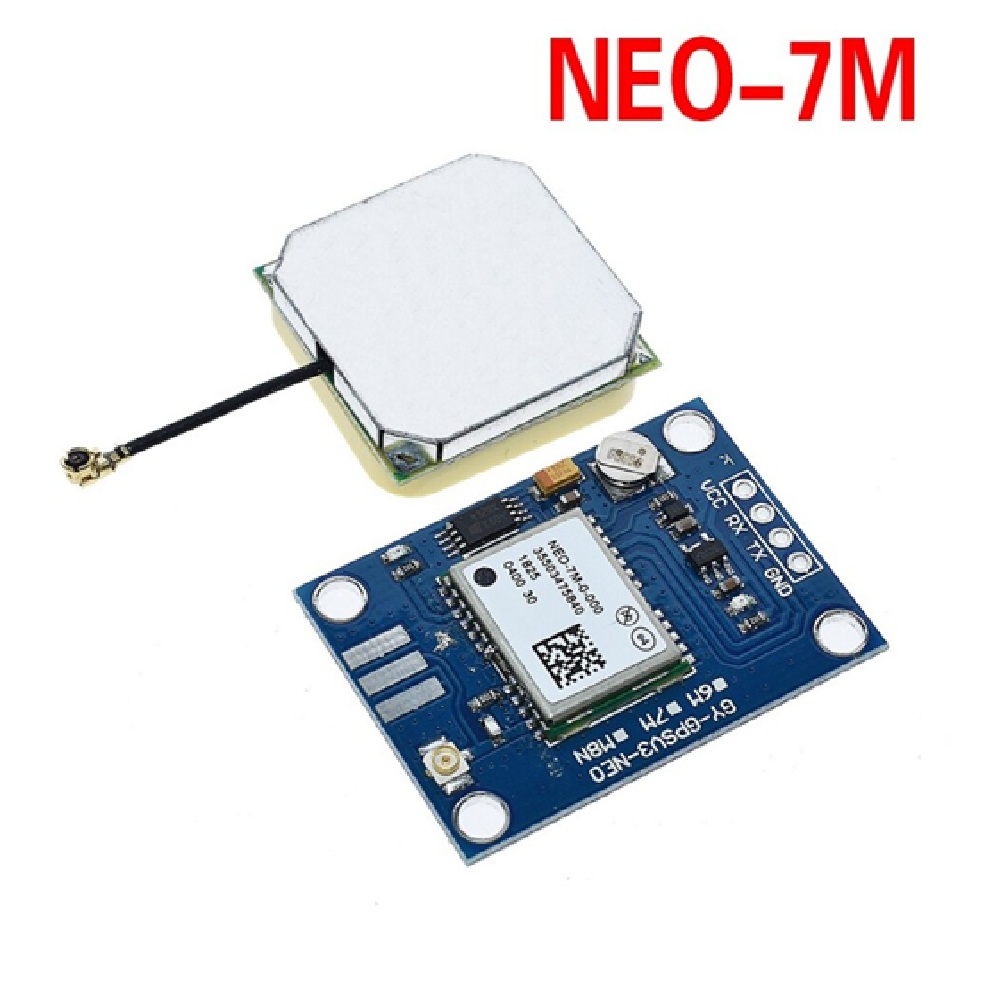

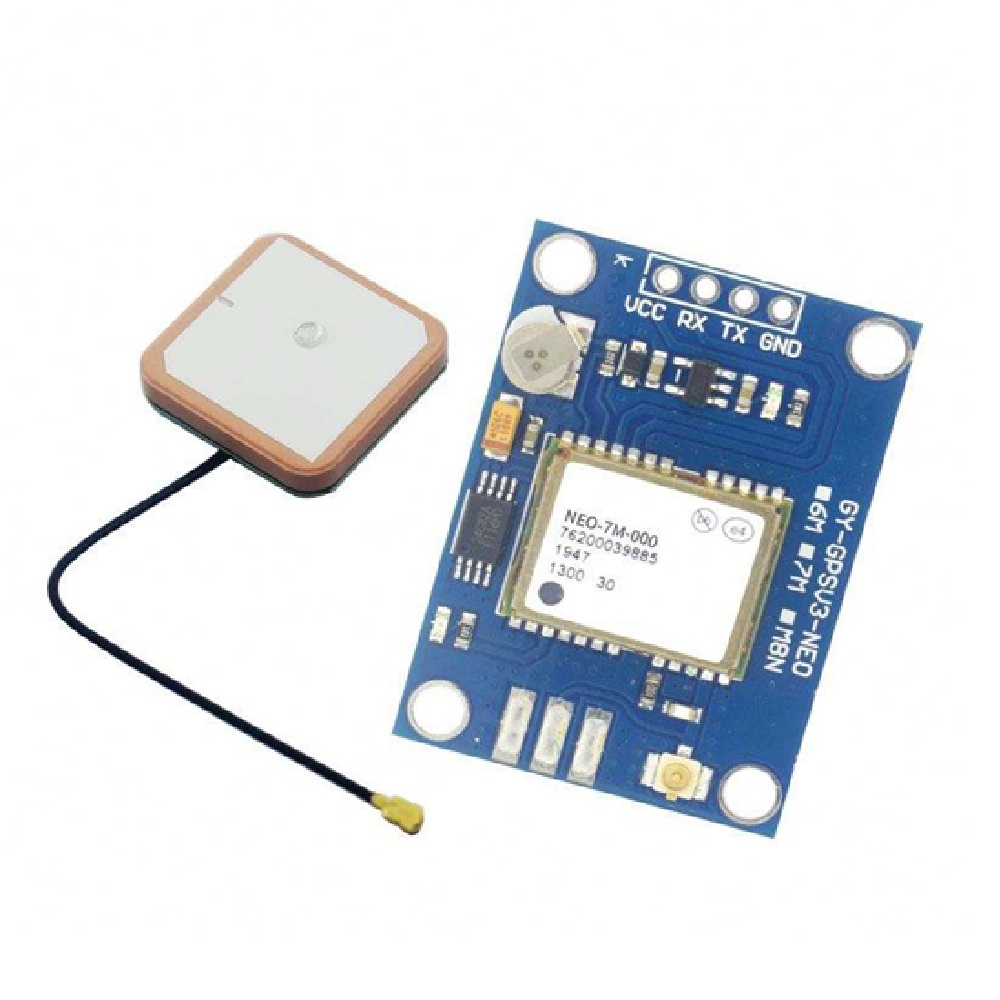

Ublox NEO-7M GPS Module with Ceramic Antenna
memory Technical Parameters & Datasheet Summary
SKU: ANIL2737The Ublox NEO-7M GPS module comes equipped with a high-gain ceramic antenna for strong GPS satellite signal reception and precise location updates. This module supports multiple satellite navigation systems (GPS, GLONASS, QZSS, SBAS), and features onboard EEPROM and a rechargeable backup battery for fast HOT starts, reliable configuration retention, and efficient power management.
The compact design and UART TTL interface make it ideal for integration with Arduino, Raspberry Pi, and other microcontroller platforms in robotics, drones, and navigation projects.
Features:
- GPS/GLONASS/QZSS/SBAS support for global satellite coverage.
- High-gain ceramic patch antenna for strong signal reception.
- 56-channel receiver for reliable and accurate positioning.
- Fast location acquisition: HOT start <1s, Cold start <30s.
- Position accuracy up to 2.5 meters (SBAS mode: 2.0 meters).
- Onboard EEPROM for parameter retention and configuration.
- Rechargeable backup battery for quick starts and configuration storage.

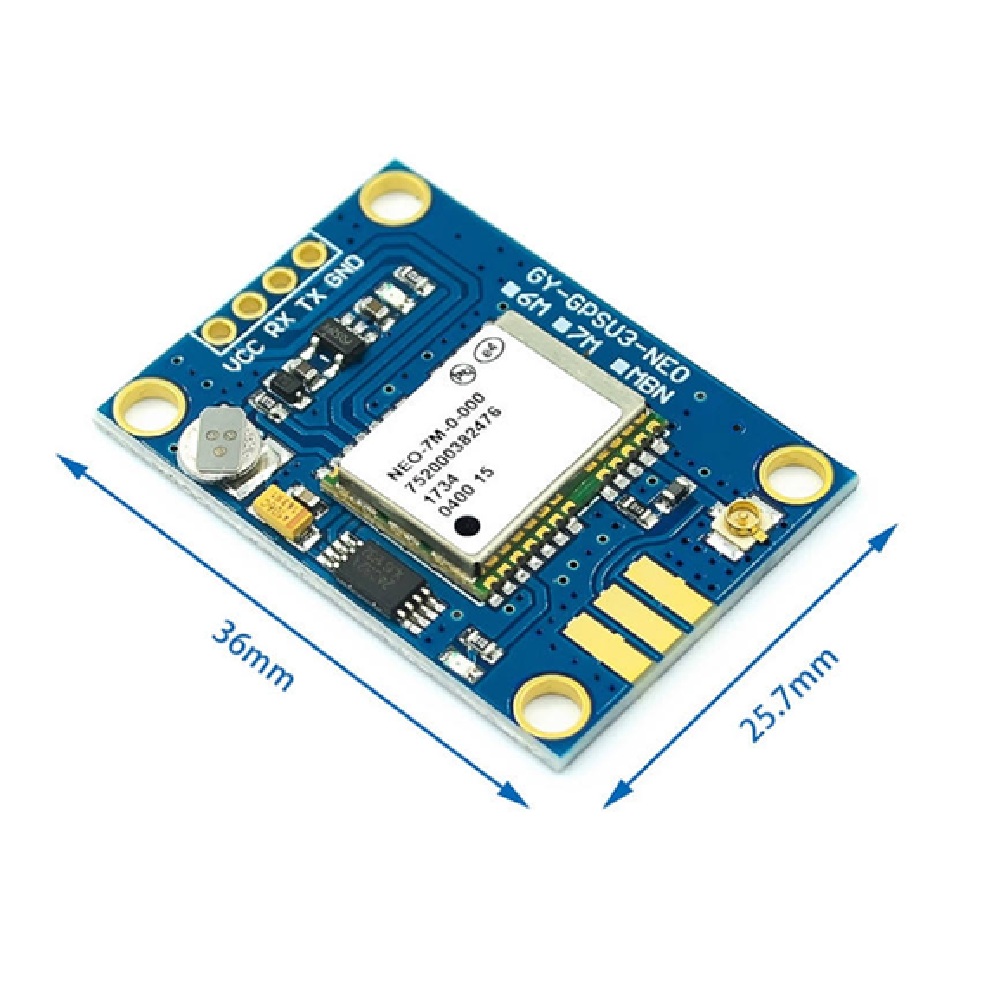

- Compact design with UART/TTL and UFL connector for antenna.
- Wide voltage supply: 3.3V/5V compatible.
- Easy connection to Arduino, Raspberry Pi, and microcontroller boards.
Specifications:
Chipset: u-blox NEO-7M
Receiver Channels: 56
Supported Systems: GPS, GLONASS, QZSS, SBAS
Frequency: L1 (1575.42 MHz)
Position Accuracy: 2.5m (SBAS: 2.0m)
Operating Voltage: 3.3V~5V
Interface: UART TTL, UFL connector
Cold Start: <30 seconds
Hot Start: <1 second
Antenna: External high-gain ceramic patch antenna
Backup Battery: Rechargeable, supports HOT start
Baud Rate: Default 9600 bps
Application:
- Drone and quadcopter navigation
- Robotics and autonomous vehicles
- GPS tracking systems
- GIS and mapping projects
- Location-based solutions for IoT devices
- Personal navigation devices
- Surveying equipment.
Package Includes:
- 1 x Ublox NEO-7M GPS Module with Ceramic Antenna
