360 PPR 2-Phase Incremental Optical Rotary Encoder 5-24V
memory Technical Parameters & Datasheet Summary
SKU: ANIL2384If you want to build a project where the machine can control the speed of the conveyer belt as well as the direction of movement, a rotary encoder is a must-have component. A rotary encoder is a type of position sensor which is used for determining the angular position of a rotating shaft. It generates an electrical signal, either analog or digital, according to the rotational movement.

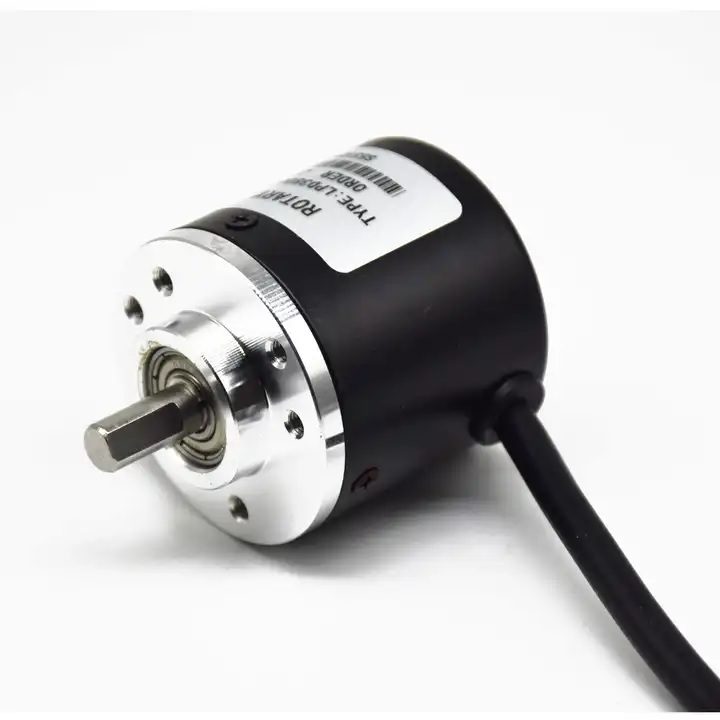

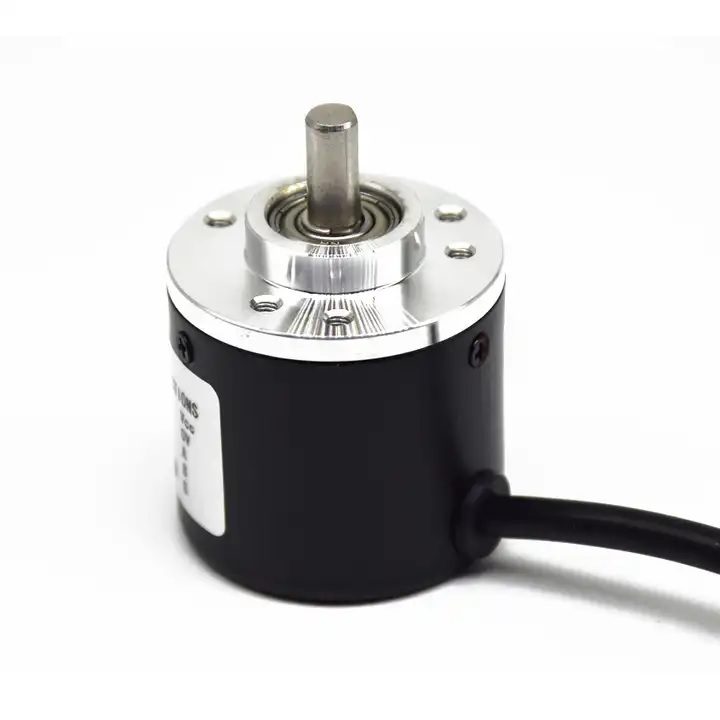

360 PPR 2-Phase Incremental Optical Rotary Encoder 5-24V is a hi-resolution optical encoder with quadrature outputs for increment counting. It will give 360 transitions per rotation between outputs A and B. A quadrature decoder is required to convert the pulses to an up count. The Encoder is built to Industrial grade.
The Encoder 360 PPR comes with a Standard 1 m cable length which can be extended with extra cable if needed.
Consider Adding Pull up resistor to both A and B phases of the encoder output to avoid the effect of interference in output and get the precise logical output value from the encoder Also adding a pull-up resistor to all phase output lines protects the open collector output-triode from damage due to direct Vcc supply short circuit.
Features :
- High cost-efficient advantages.
- Incremental rotary encoder internal adopts ASIC devices
- High reliability, long life
- Anti-jamming performance
- Small size, lightweight, compact structure
- Easy installation
- Stainless steel shaft, High resolution, High quality, line interface with waterproof protection
Specifications:
- Encoder Type: NPN
- Operating Voltage (VDC): 5-24V
- Current Consumption (mA): ＜80ma
- Maximum Speed: 6000r/min
- Pulse Per Revolution (PPR): 360
- Counts Per Revolution (CPR): 360
- Operating Temperature Range (°C): -10~+70°C
- Output Phase: NPN
- Protection Standard: Load short circuit protection, power reverse connection protection
- Shaft Type: D-type
- Shaft Length (mm): 10
- Shaft Diameter (mm): 6
- Mounting Hole(mm): M3*6
- Weight (gm): 100g
- Body Dimensions (Dia. x Length) mm: 38*34
- Cable Length (Meter): 1 meter
Power and Input Terminal Assignments:
- VCC: Red: VCC should be connected to +ve of supply
- GND: Black: The ground should be connected to negative the supply
- Phase A: Yellow: Quadrature encoded output A
- Phase B: Green: Quadrature encoded output B
- Shield: Silver: The shield should be connected to GND
Package Includes:
- 1 x 360 PPR 2-Phase Incremental Optical Encoder 5-24V
