AS5600 Absolute Encoder 12 Bit Precision Angle Measurement Sensor with Magnet Wheel

AS5600 Absolute Encoder 12 Bit Precision Angle Measurement Sensor with Magnet Wheel detects rotational position information as changes of the magnetic field, converts them into electrical signals, and outputs them. The Hall element is a magnetic sensor that uses the phenomenon of the Hall effect to output a voltage proportional to the strength of the magnetic field.

Features:

• 12-bit DAC output resolution
• Non-contact magnetic induction angle measurement module.
• High precision, a variety of output modes: IIC, PWM, and voltage.

Specifications:

• Model: AS5600 Encoder
• Operating Temperature Range: -40°C to 125°C
• Power supply: 3.3V DC
• Resolution: 12-bit DAC output
• Length: 23mm
• Height: 3 mm
• Width: 23mm
• Weight: 24g

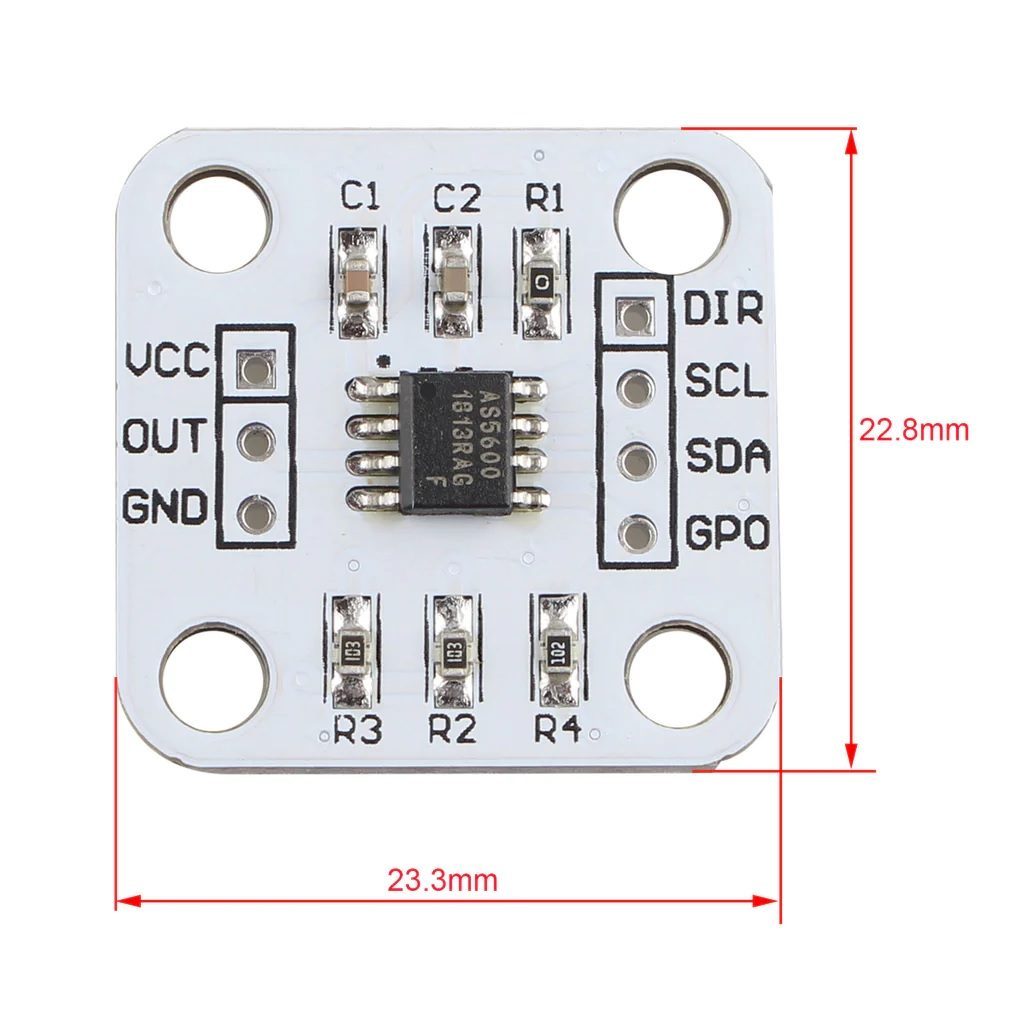

Pins:

• VCC: 3.3V
• GND: Power ground
• Out: PWM / analog voltage output
• DIR: Direction of rotation
• SCL: IIC The communication clock line
• SDA: IIC Data communication line
• GPO: Mode selection

Package Includes:

• 1 x AS5600 Magnetic Encoder 12 Bit Precision Angle Measurement Sensor with Magnet Wheel
