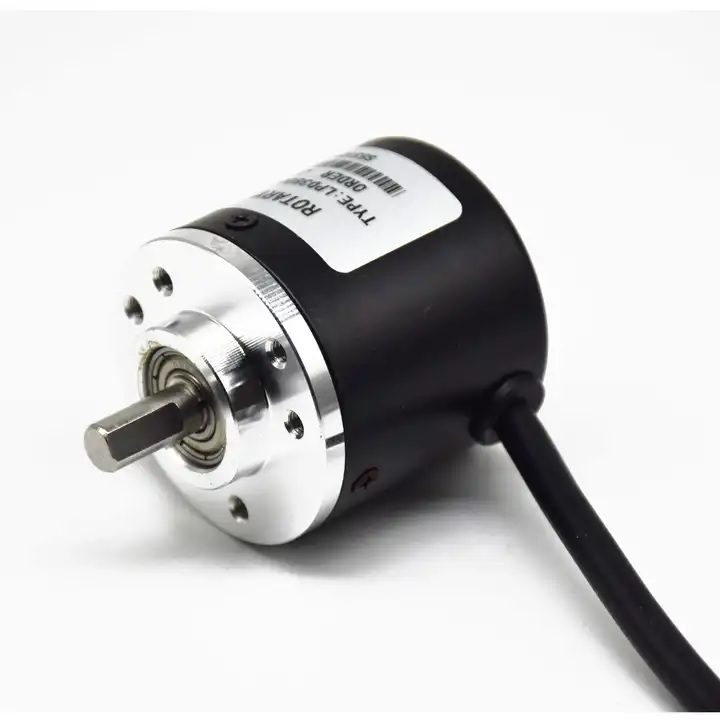

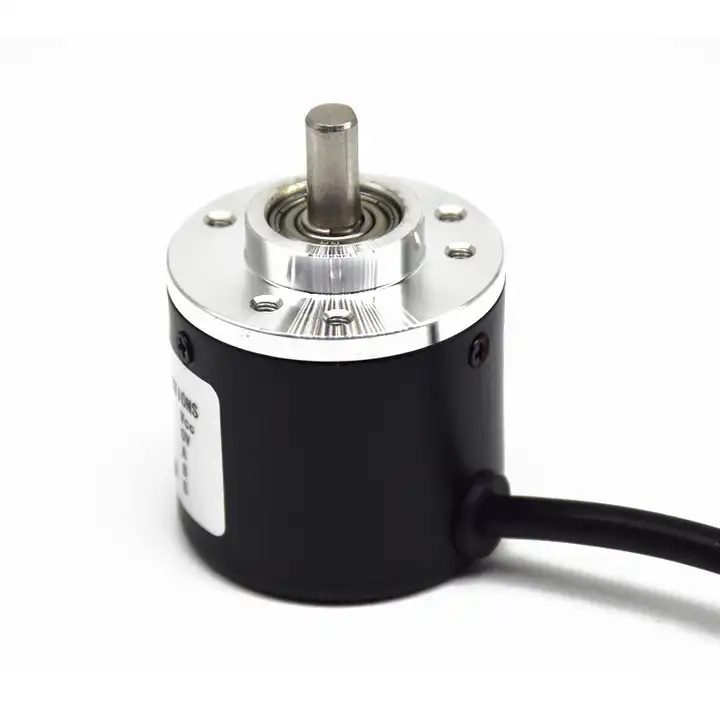

100 PPR 2-Phase Incremental Optical Rotary Encoder 5-24V

If you want to build a project where the machine can control the speed of the conveyer belt as well as the direction of movement, a rotary encoder is a must-have component. A rotary encoder is a type of position sensor which is used for determining the angular position of a rotating shaft. It generates an electrical signal, either analog or digital, according to the rotational movement.

100 PPR 2-Phase Incremental Optical Rotary Encoder 5-24V is a hi-resolution optical encoder with quadrature outputs for increment counting. It will give 100 transitions per rotation between outputs A and B. A quadrature decoder is required to convert the pulses to an up count. The Encoder is built to Industrial grade.

The 100 PPR Rotary Encoder comes with a Standard 1 m cable length which can be extended with extra cable if needed.

Consider Adding Pull up resistor to both A and B phases of the encoder output to avoid the effect of interference in output and get the precise logical output value from the encoder Also adding a pull-up resistor to all phase output lines protects the open collector output-triode from damage due to direct Vcc supply short circuit.

Features :

• High cost-efficient advantages.
• Incremental rotary encoder internal adopts ASIC devices
• High reliability, long life
• Anti-jamming performance
• Small size, lightweight, compact structure
• Easy installation
• Stainless steel shaft, High resolution, High quality, line interface with waterproof protection

Power and Input Terminal Assignments:

• VCC: Red: VCC should be connected to +ve of supply
• GND: Black: The ground should be connected to negative the supply
• Phase A: Yellow: Quadrature encoded output A
• Phase B: Green: Quadrature encoded output B
• Shield: Silver: The shield should be connected to GND

Package Includes:

• 1 x 100 PPR 2-Phase Incremental Optical Encoder 5-24V
