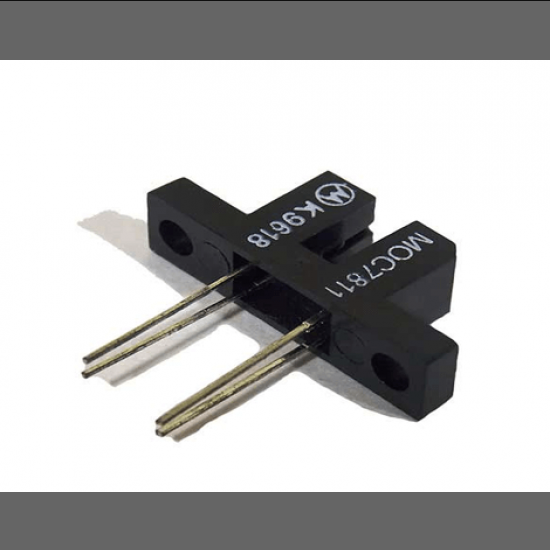

MOC-7811 IR Opto Isolated Slot Sensor (Rotation Encoder Sensor)

MOC-7811 IR Opto Isolated Slot Sensor is a slotted opto isolator module, with an IR transmitter and a photodiode mounted on it. Performs Non-Contact Object Sensing. This is normally used as positional sensor switch (limit switch) or as Position Encoder sensors used to find position of the wheel. It consists of IR LED and Photodiode mounted facing each other enclosed in plastic body.

Specifications

• Mounting hole diameter: 3mm
• Mounting hole spacing: 19mm
• Slot width: 3mm
• Slot depth: 7mm

Applications:

• DC motor position / velocity control
• Position and velocity servo mechanisms
• Factory automation robots
• Numerically controlled machinery
• Computer printers and plotters

Sensor Working:

When light emitted by the IR LED is blocked because of alternating slots of the encoder disc logic level of the photo diode changes. This change in the logic level can be sensed by the microcontroller or by discrete hardware. This sensor is used to give position feedback to the robot or as Limit switches.

Package Includes:

• 1 x MOC-7811 IR Slot Sensor
