PDB-XT60 with BEC 5V and 12V

Matek PDB-XT60 with BEC 5V and 12V has been engineered to provide the highest possible performance and reliability in a 36*50mm & 4 layers PCB. It distributes power from a LiPo pack to 6 ESCs, as well as providing synchronized & regulated DC 5V outputs & linear regulated DC 12V for powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc.

It offers a XT60 socket to connect the LiPo pack conveniently.

The PDB-XT60 with BEC 5V and 12V is a great package to get your Racing Drones powered up for racing.

Note:

Since this is an Open Source Power Distribution Board, there are many manufacturers who are supplying this product. We have picked up the best quality products from the market and tested them for their functionality. And finally selected best amongst them. Our product works exactly same as we have described above in the description.

Features :

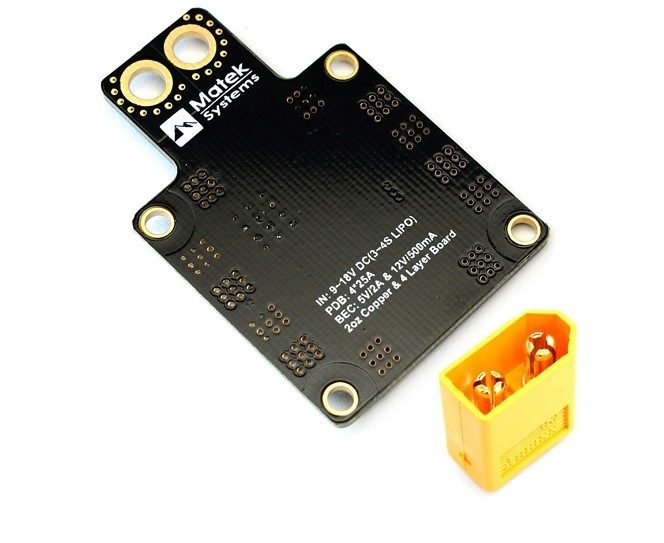

• 2oz copper, 4-layers &1.6mm PCB.

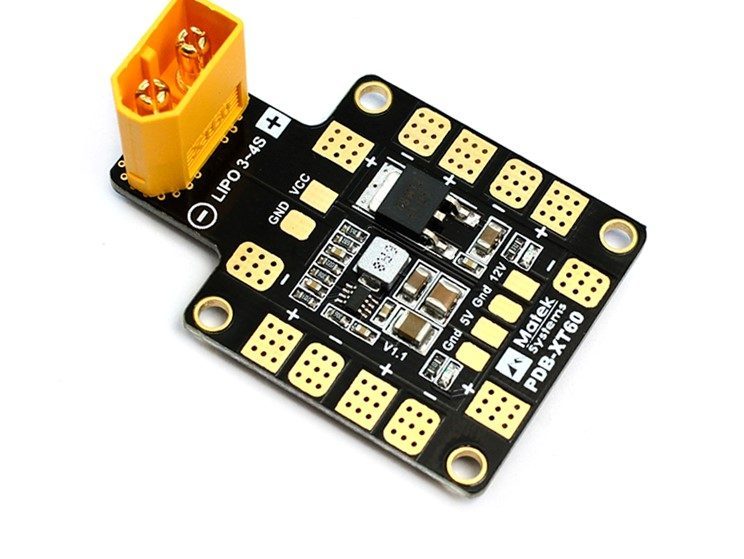

• Built-in XT60 Socket

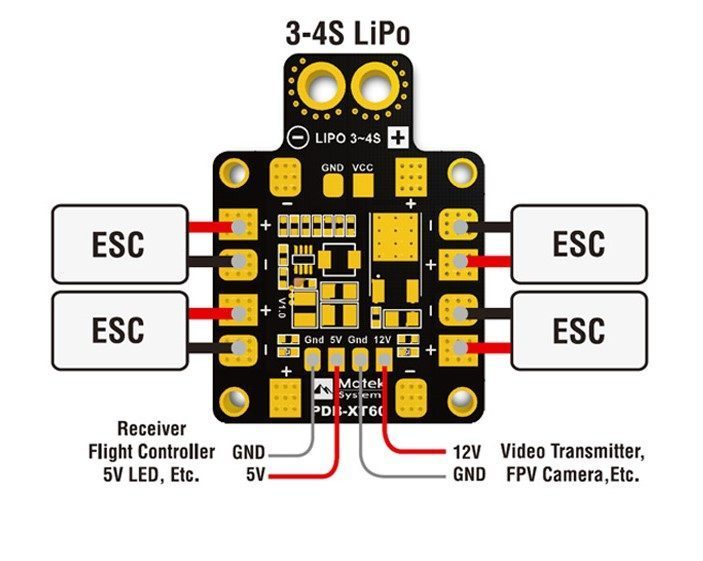

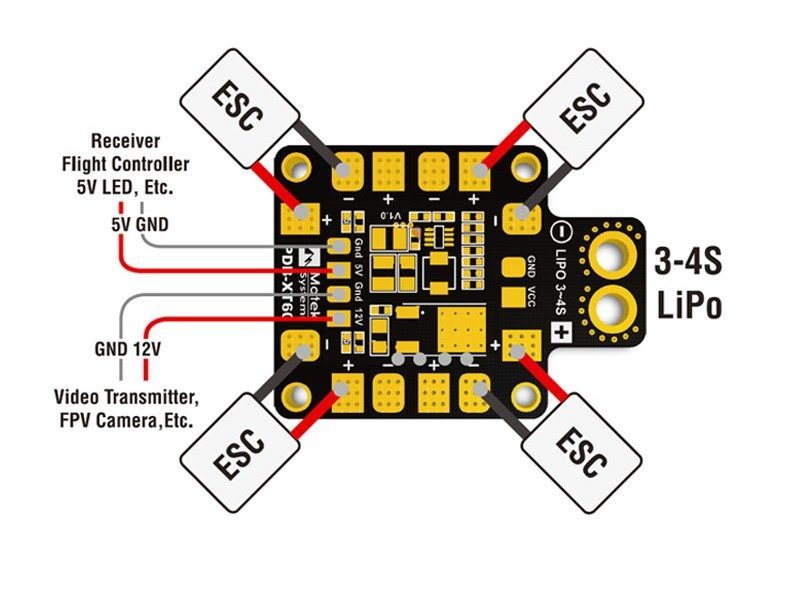

• Total 6 pairs ESC solder tabs are fit for H or X type frame
• 5V & 12V Output LED indicators & Short circuit tolerant

Specifications:

General:

• Input voltage range (3S-4S LiPo operation): 9 – 18V DC
• Regulated 5V and 12V outputs
• LED power indicators ( 5V & 12V outputs )
• 6 ESC outputs & 1 pair VCC/GND pads

ESC outputs:

• Continuous current: 25A*4 or 15A*6
• Peak current (10 seconds/minute): 30A*4 or 20A*6

BEC 5V output:

• Designed for RC Receivers, Flight controllers, OSD, and Servos.
• DC/DC synchronous buck regulator.
• Voltage: 5.0 +/- 0.1VDC
• Continuous current: 2 Amps (Max.2.5A 10s/minute)
• Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
• Short-circuit tolerant (5 seconds/minute)

BEC 12V output:

• Designed for Video TX or FPV camera with linear regulator.
• The battery should be 4S LiPo (13~18V DC)
• Voltage: 12.0 +/- 0.3VDC
• Continuous current: 500mA (Max.0.8A 5s/minute)
• Short-circuit tolerant (2 seconds/minute)

BEC 12V @ 3S LiPo

• Output voltage= 3S LiPo voltage -1V

Physical:

• Dimensions: 36 x 50 x 4 mm (without XT60)
• Mounting: 30.5 x 30.5mm, Φ3mm
• Weight: 7.5g(w/o XT60), 11g(w/ XT60)

Package includes :

• 1 x PDB-XT60 W/BEC 5V and 12V board
• 1 x XT60 male Connector

User Manual :

• PDB-XT60 with BEC 5V and 12V
