DJI Naza-M V2 Multi-Rotor Flight Controller With GPS Module

DJI Naza-M V2 Multi-Rotor Flight Controller With GPS Module Supports nine multi-rotor configurations, the DJI NAZA-M V2  Controller With GPS acts as the brains of the aircraft, managing pilot input and interpreting data from the various sensors, helping maintain a stable flying condition. There are four components to the system. Following are the capabilities inbuilt in this DJI Naza-M V2 Controller.

9 Types Multirotor Configurations Supported

The Naza-M V2 is a powerful flight controller for enthusiast, commercial and industrial flyers. It’s easy to install, simple to configure and above all, extremely stable. Nine types of traditional motor mixes are supported, making it ideal for every setup.

Free Ground Station Support

16 point Ground Station is available free for both iPad and PC, without serial number verification. 2.4G Bluetooth Datalink required.

Advanced Attitude Stabilization Algorithms

The Naza-M V2 boasts the extraordinary stability you would expect of all DJI flight control systems and combines it with unparalleled maneuverability with and without GPS. Built into it are automatic GPS course correction plus GPS and compass interference monitoring, which combine to offer more stable flight and minimal magnetic interference.

Takeoff Assistance

Drift-free, stable take offs on different surfaces is ensured with Takeoff Assistance.

Intelligent Orientation Control (IOC)

Forward on a multirotor is normally the direction the nose is facing, which can get confusing when turning, but with IOC switched on, direction is hugely simplified.

• In Course Lock mode, forward is the same as the nose direction recorded on takeoff.
• In Home Lock mode, forward is the direction from the multirotor’s current position back to home.

Motor Failure Protection

If a hexrotor or octorotor equipped with a Naza-M V2 suffers a motor failure in flight in attitude or GPS mode, it will maintain its altitude and rotate around the stopped motor. This allows it to fly safely back to home and land.

Failsafe And Auto Go Home Support

If the connection between the multirotor and the remote control are disconnected during flight, a failsafe system will activate. Provided there was enough GPS signal at the time of the disconnection, the multirotor will fly back to its point of takeoff and land automatically. This feature can also be triggered manually using the One-Key Go-Home function activated using Assistant.

Assistant for Smartphone

Using a BTU with power efficient Bluetooth, parameters can be adjusted at any time through a smartphone without excessive power use. Connection records are automatically stored by the Bluetooth module and protected by password. Parameters can be automatically synchronized to the cloud restored immediately when mobile devices are changed.

These features makes the DJI Naza-M V2 very versatile and best controller for drones.

Features:

• All-In-One Compact Multi-Rotor Autopilot System
• Supports 9 Different of Multi-Rotor Configurations, Ideal for DJI F450/F550 and E Series Tuned Propulsion Systems
• New Assistant Software for Smartphones
• Free Ground Station
• Take-Off Assistance
• Multiple Flight Control Modes and Intelligent Switching
• GPS Module Available for Accurate Position Stabilization
• Intelligent Orientation Control (IOC)
• Supports General, PPM, and S-Bus Receivers
• Arm/Disarm Modes for Safe Motor Starting
• 2-Axis Gimbal Stabilization
• Two Levels of Low Voltage Warnings and Protection
• Single Motor Failure Protection
• Supports Remote Gain Adjustment from the Transmitter
• Enhanced Failsafe Features, Including Auto Return-to-Home
• Compatible with DJI Video Downlink, iOSD, Ground Station, ZH4-3D/H3-3D Gimbals, and Future Products

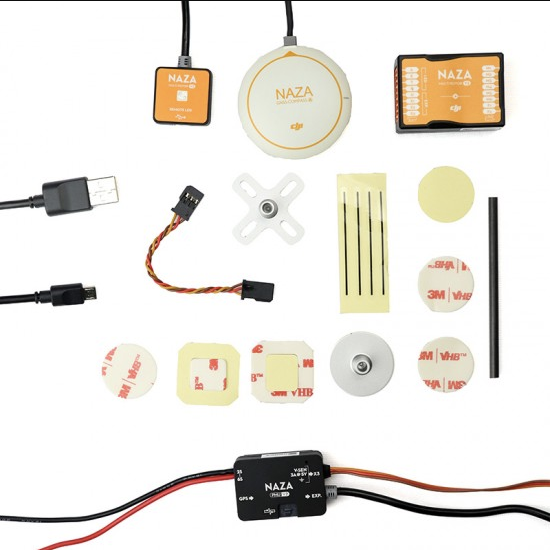

Package Includes:

• 1 x Main Controller Unit.
• 1 x Power Management unit.
• 8 x Servo cable.
• 1 x LED Module.
• 1 x Micro USB Cable.
• 2 x Adhesive Tape.
• 1 x GPS Module.
