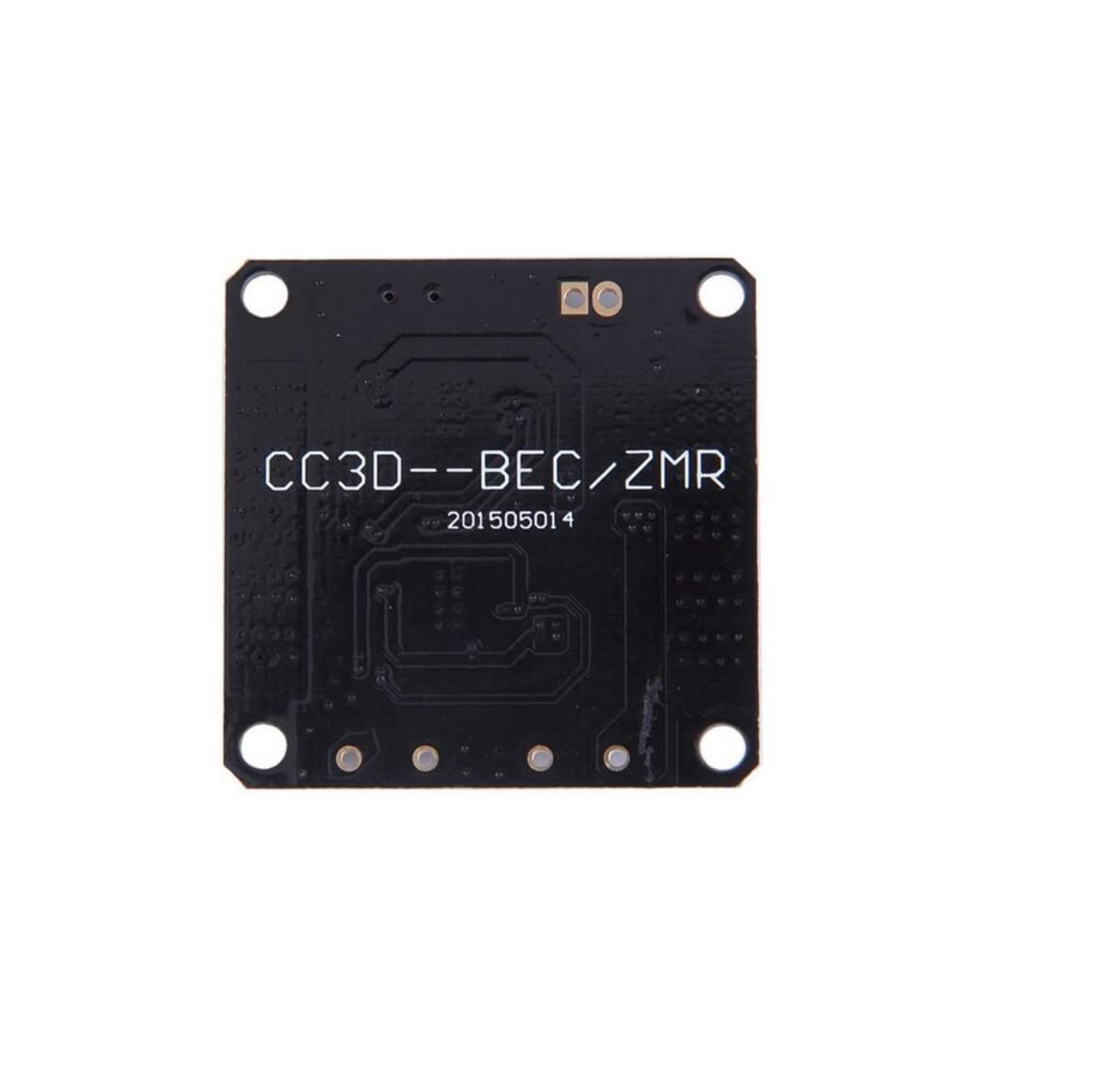

CC3D V2 ZMR Power Distribution Board with Dual BEC LC Filter & LED Switch

Power your drone build the smart way with the CC3D V2 ZMR Power Distribution Board with Dual BEC LC Filter & LED Switch, designed specifically for multi-rotor setups like the ZMR250 and similar quadcopters. This advanced PDB integrates dual BEC outputs, an LC filter, and a built-in LED switch, making it a compact all-in-one power management solution for clean and reliable flight performance.

The layout remains the same as the V1 PDB, but the BECs are now integrated into the PCB using surface-mount-technology, which makes them much more reliable.

The 5V BEC connection is ideal for powering your flight controller or RC receiver, while the 12V output could be used to power FPV components or lighting. Both BECs are compatible with 2-6S LiPo and can output up to 3A continuous. The board also features an unregulated output for powering LEDs, which is switchable so you can turn your lights off when you don’t need them or to save power.

CC3D V2 ZMR Power Distribution Board is a standard 36mm sized PDB, so you can stack it cleanly with the CC3D, Naze, and most other board type flight controllers.

This CC3D V2 ZMR Power Distribution Board is suitable for Naze32, CC3D, SP F3, APM, etc flight controller (36 * 36 hole distance). With OSD function, support KVteam, MWOSD firmware etc., comes with FTDI. When OSD connect to PC, it will auto disconnect with flight controller, TX RX Dual way BEC, DC-DC synchronous rectifier 5V voltage regulation(3A), come with LC filter.

Simplify your wiring and stabilize your power supply with the CC3D V2 ZMR PDB – an essential upgrade for any serious drone builder or FPV enthusiast.

Features:

• ⚡ Dual BEC Outputs: 5V and 12V regulated outputs for powering your flight controller, camera, and VTX
• 🧹 Built-in LC Filter: Reduces voltage noise and ripple to ensure clean power delivery—ideal for FPV systems
• 💡 LED Power Switch: Dedicated switchable LED circuit allows you to easily control onboard lighting
• 🛠️ Compact Design: Fits perfectly on 250-class frames like the ZMR250; simplifies wiring and saves space
• 🔌 Direct Solder Pads: Easy soldering points for ESCs, battery leads, and accessories

Ideal For:

• Racing drones, FPV builds, ZMR250 frames, and custom quadcopters requiring clean power distribution.

Specifications:

• Model: CC3D V2 ZMR PDB
• Input Voltage: 7V – 21V (2S–5S LiPo)
• BEC Outputs: 5V @ 3A and 12V @ 500mA
• LC Filter: Built-in, for video noise reduction
• LED Switch: On/Off control for onboard LEDs
• Compatible Controllers: CC3D/Naze32/F3 flight controller
• Board Dimensions: ~36mm x 36mm (standard 30.5mm mount holes)
• Weight: ~7g
• Mounting: M3 holes (30.5mm x 30.5mm spacing)

Package Includes:

• 1 x CC3D V2 ZMR Power Distribution Board with Dual BEC LC Filter & LED Switch
