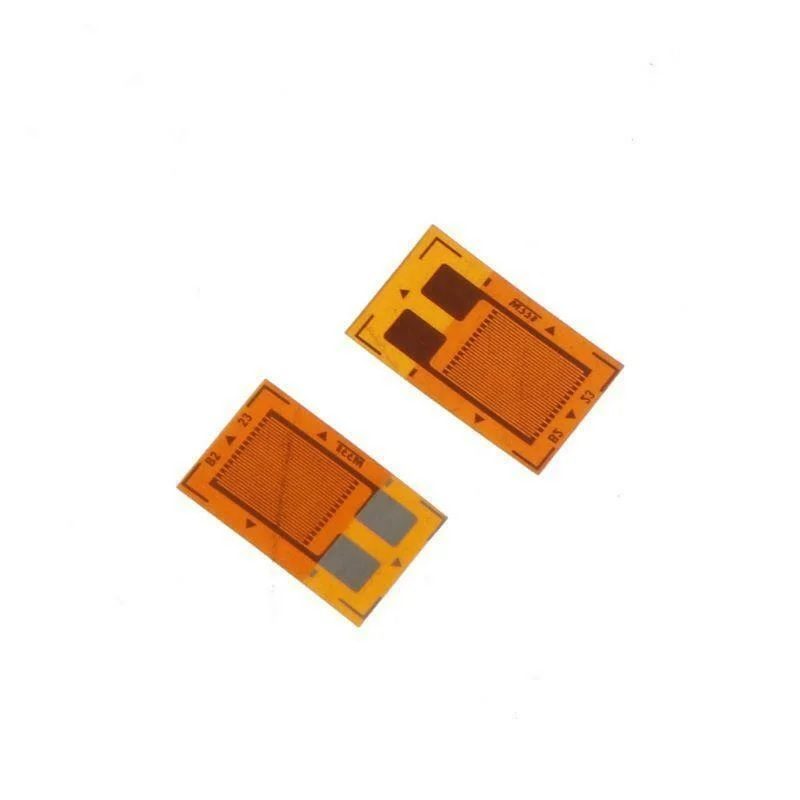

BF350 High Precision Resistance Strain Gauge / Pressure Sensor / Weighing Sensor 350 Ohm

BF350 High Precision Resistance Strain Gauge / Pressure Sensor / Weighing Sensor 350 Ohm is a foil metal strain gauge, widely used in pressure sensor and weighing sensor. BF350 is mainly fit for 0.02 level manufacturing crafts pressure sensor which means its output deviation should be controlled within 0.02 so its precision is really high. You could use it to measure the strain of components directly!

Features:

• High accuracy helps you get the accurate resistance data
• Good stability for its running and usability
• Modified phenolic of backing material and Cuni of the gate wire
• Fully-closed structure to ensure data transmission safety
• Automatic compensation of temperature and creep

Specifications:

• Technical Indexes: BF series
• Strain limit: 2.0%
• Fatigue life: ≥1M
• Resistance: 350 ohms
• Contrast: 800: 1 (Min) (transmission)
• Sensitivity coefficient: 2.00-2.20
• Using temperature range: -30–+80
• Tolerance of average resistance: ≤±0.1%
• Sensitive coefficient dispersion：≤±1%
• Temperature self compensation coefficient：9,11,16,23,27

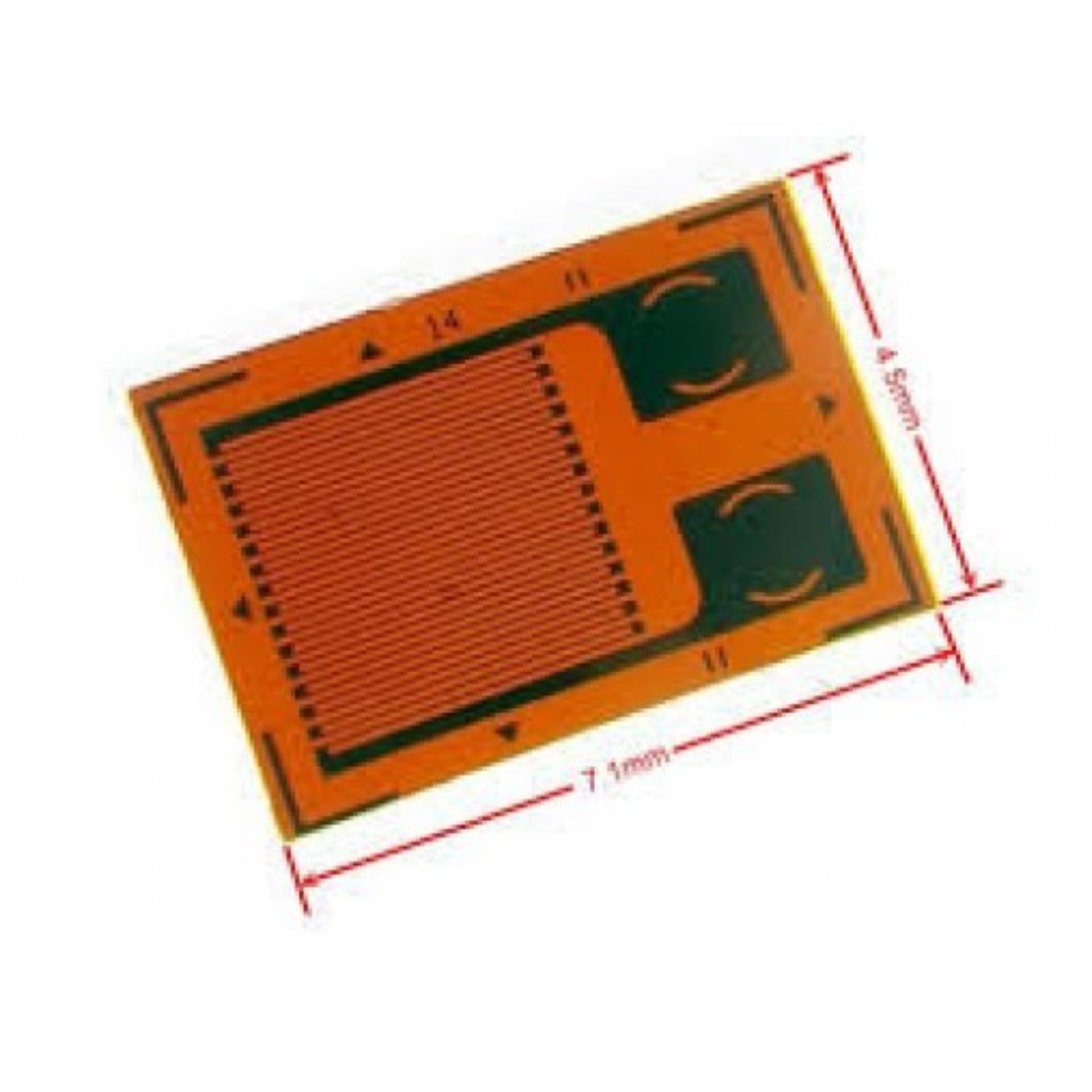

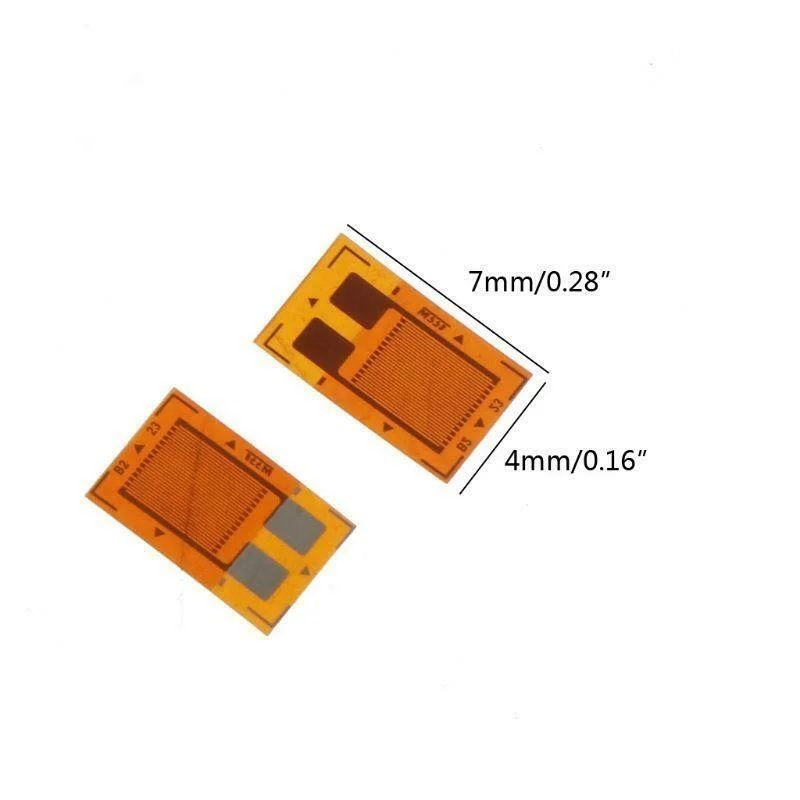

• Size: 7.4mm(length) x 4.4mm(width)

Package Includes:

• 1 x BF350 High-precision Resistance Strain Gauge
