FlexiForce A401 Large Force Sensor

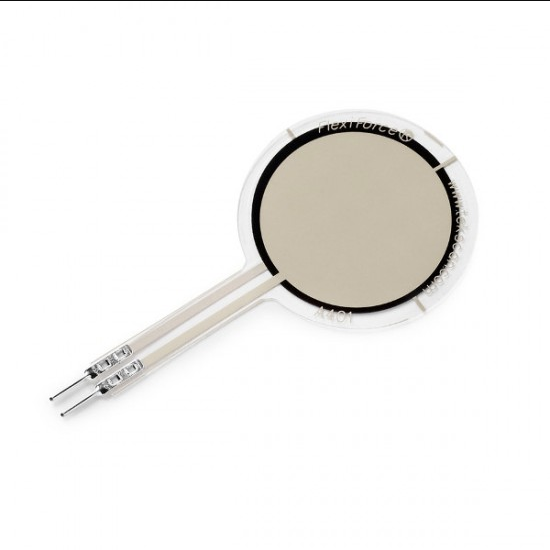

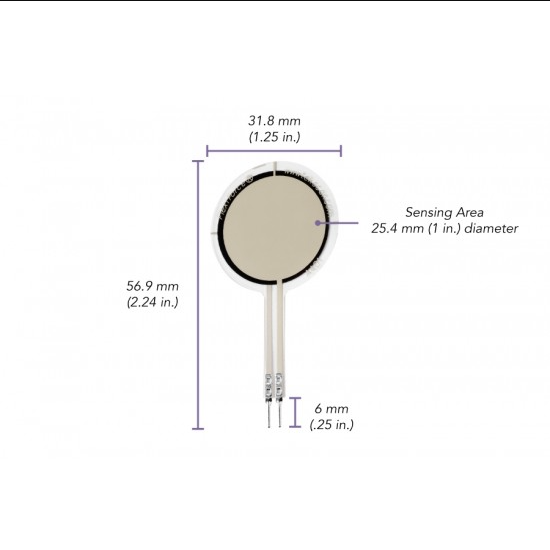

FlexiForce A401 Large Force Sensor has a 2-pin connector. This is our standard sensor with the largest sensing area: 25.4 mm (1 in.). A401 sensors are available in one force range: 111 N (0 – 25 lb).* The force ranges stated are approximations. The dynamic range of this large force sensor can be modified by changing the drive voltage and adjusting the resistance of the feedback resistor.

 Measurement ranges of 0-1 lb and 0- 7000 lb are achievable with the A401 sensor by utilizing the recommended circuitry. The force range can be extended by reducing the drive voltage, VT, or the resistance value of the feedback resistor, RF. Conversely, the sensitivity can be increased for measurement of lower forces by increasing VT or RF

How to Adjust the Force Range:

* Measurement ranges of 0-1 lb and 0-7000 lb are achievable with the A401 sensor by utilizing the recommended circuitry. The force range can be extended by reducing the drive voltage, VT, or the resistance value of the feedback resistor, RF. Conversely, the sensitivity can be increased for measurement of lower forces by increasing VT or RF.

Typical Performance

• Linearity (Error) : < ±3% of Full Scale (Line drawn from 0 to 50% load)
• Repeatability : < ±2.5% (Conditioned Sensor, 80% of Full Force Applied)
• Hysteresis : < 4.5 % of Full Scale (Conditioned Sensor, 80% of Full Force Applied)
• Drift : <5% / logarithmic time (Constant Load of 111 N (25 lb))
• Response Time : < 5 µsec (Time required for the sensor to respond to an input force; Impact load - recorded on Oscilloscope)
• Operating Temperature : -40°C - 60°C (-40°F - 140°F)
• Acceptance Criteria : ± 40% sensor-to-sensor variation
• Durability : ≥ 3 million actuations (Perpendicular load, room temperature, 22 N (5 lb))
• Temperature Sensitivity : 0.36%/°C (± 0.2%/°F) (Conductive heating)

Applications:

• Testing and Measurement Equipment
• Embedded Electronics
• OEM Development Kit
• Consumer Electronics
• Multimeter

Package Includes:

• 1 x FlexiForce A401 Force Sensor

Useful Links:

• FlexiForce A401 Datasheet
