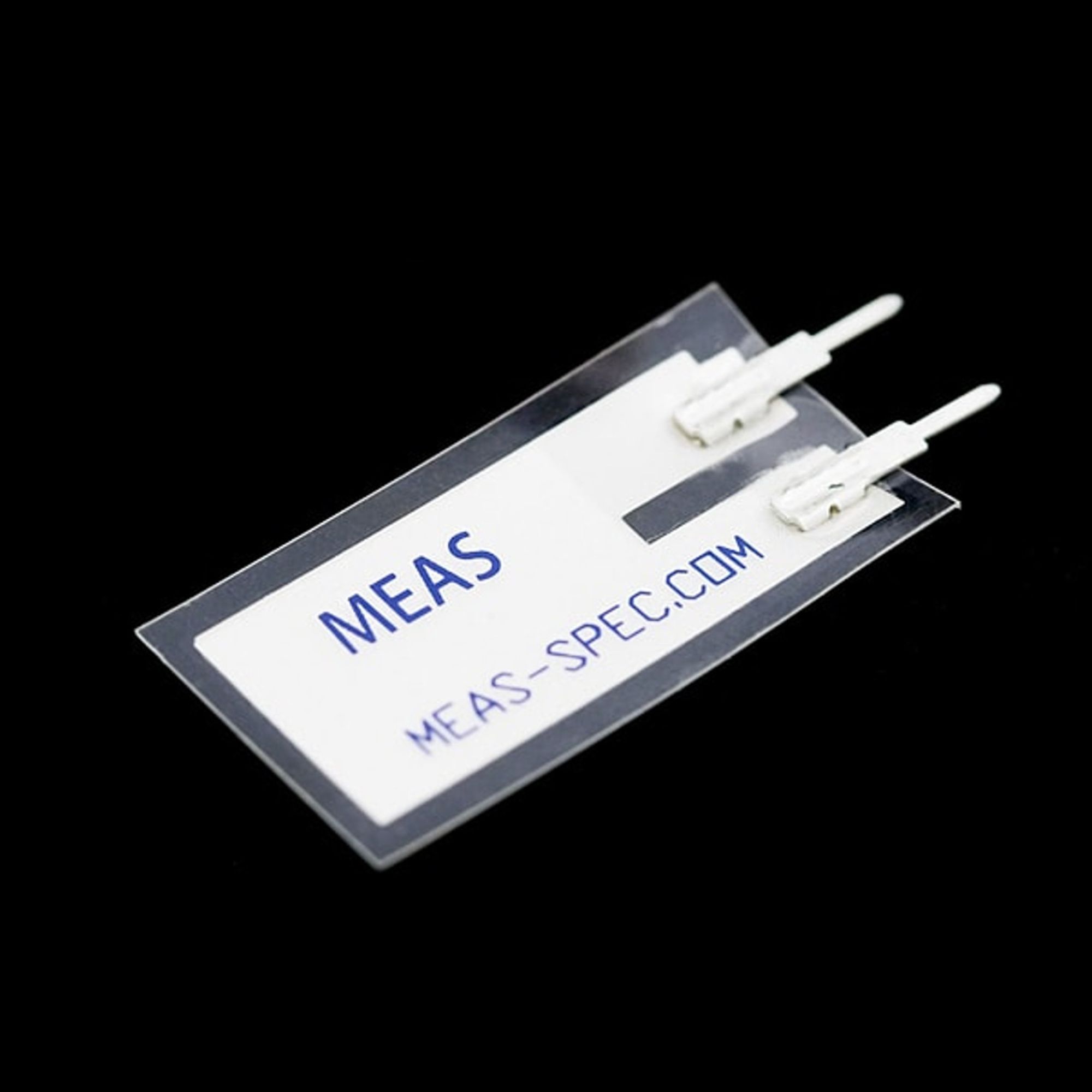

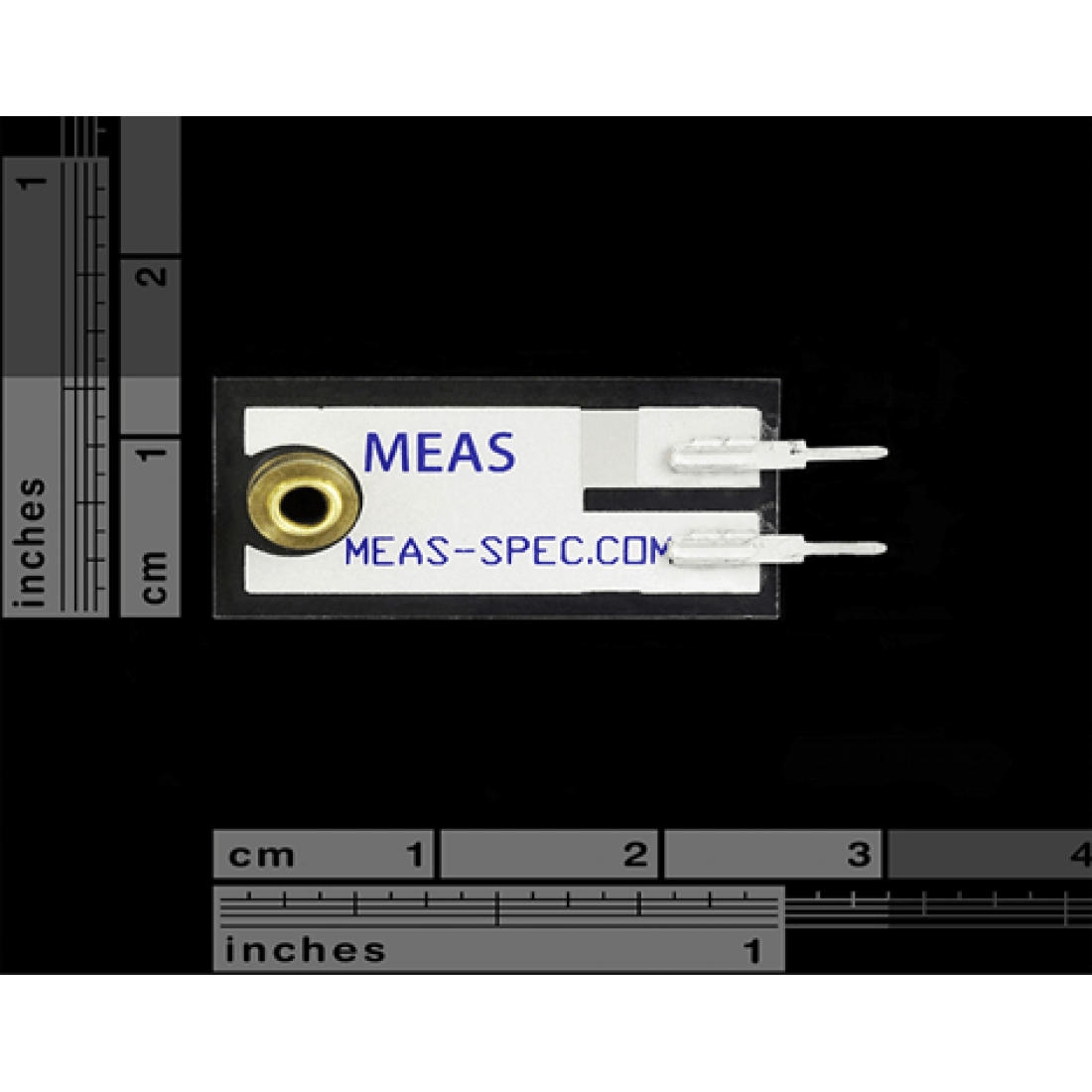

Piezo Vibration Sensor – Large with Mass

The Piezo Vibration Sensor – Large with Mass is a basic piezo sensor often used for flex, touch, vibration and shock measurements. A small AC and large voltage (up to +/-90V) is created when the film moves back and forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.

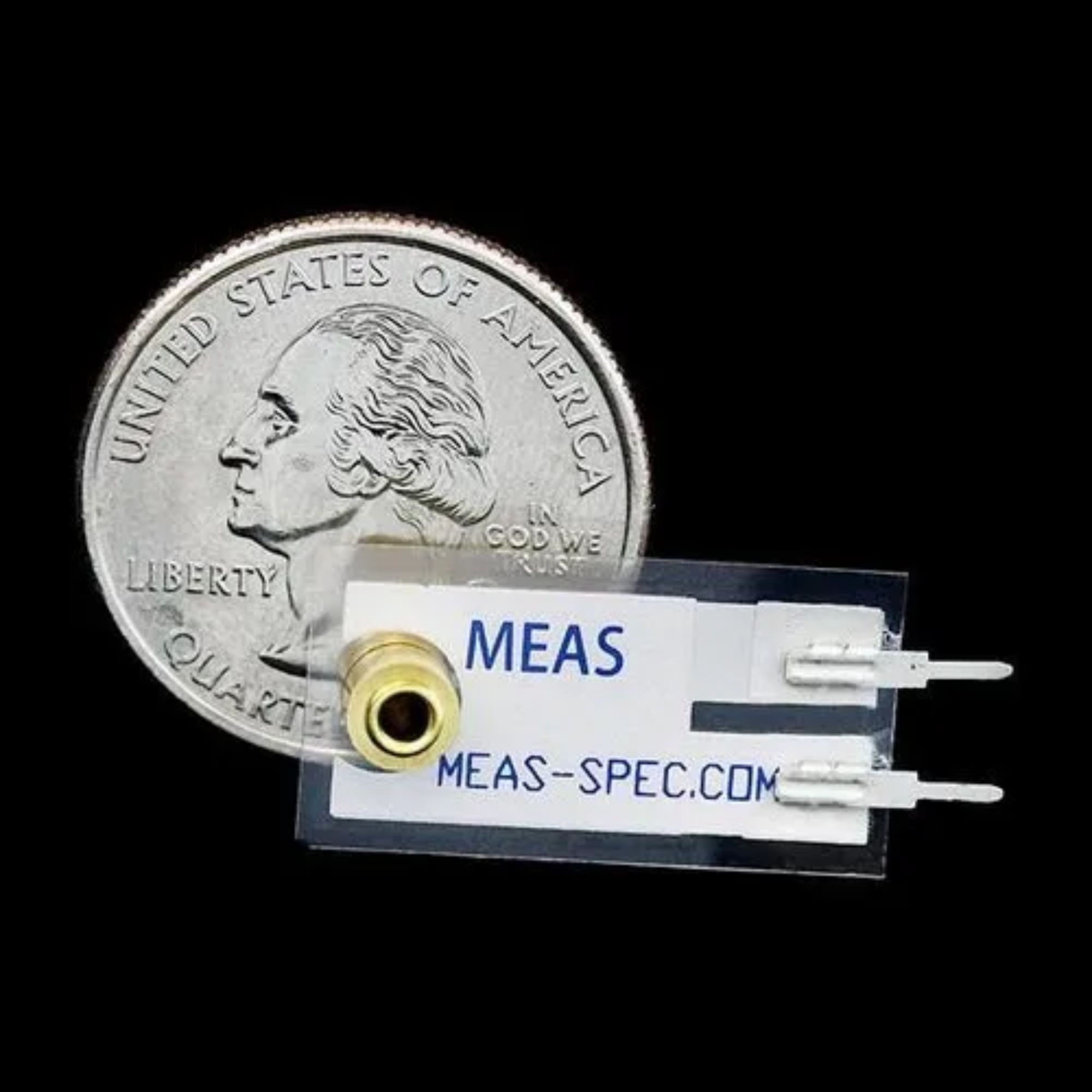

Comes with solderable crimp pins and a mass attached to the tip. This mass increases the sensitivity to motion.

Features:

• Flexible PVDF Piezo Polymer Film
• Wide dynamic range
• Laminated for higher voltage output
• 0.1″ breadboard friendly leads
• Solder Tab Connection
• Withstands High Impact
• Operating Temperature: 0ºC to 85ºC

Applications:

• Vibration Sensing in Washing Machine
• Low Power Wakeup Switch
• Low Cost Vibration Sensing
• Car Alarms
• Body Movement
• Security Systems

Package includes:

• 1 x Piezo Vibration Sensor – Large
