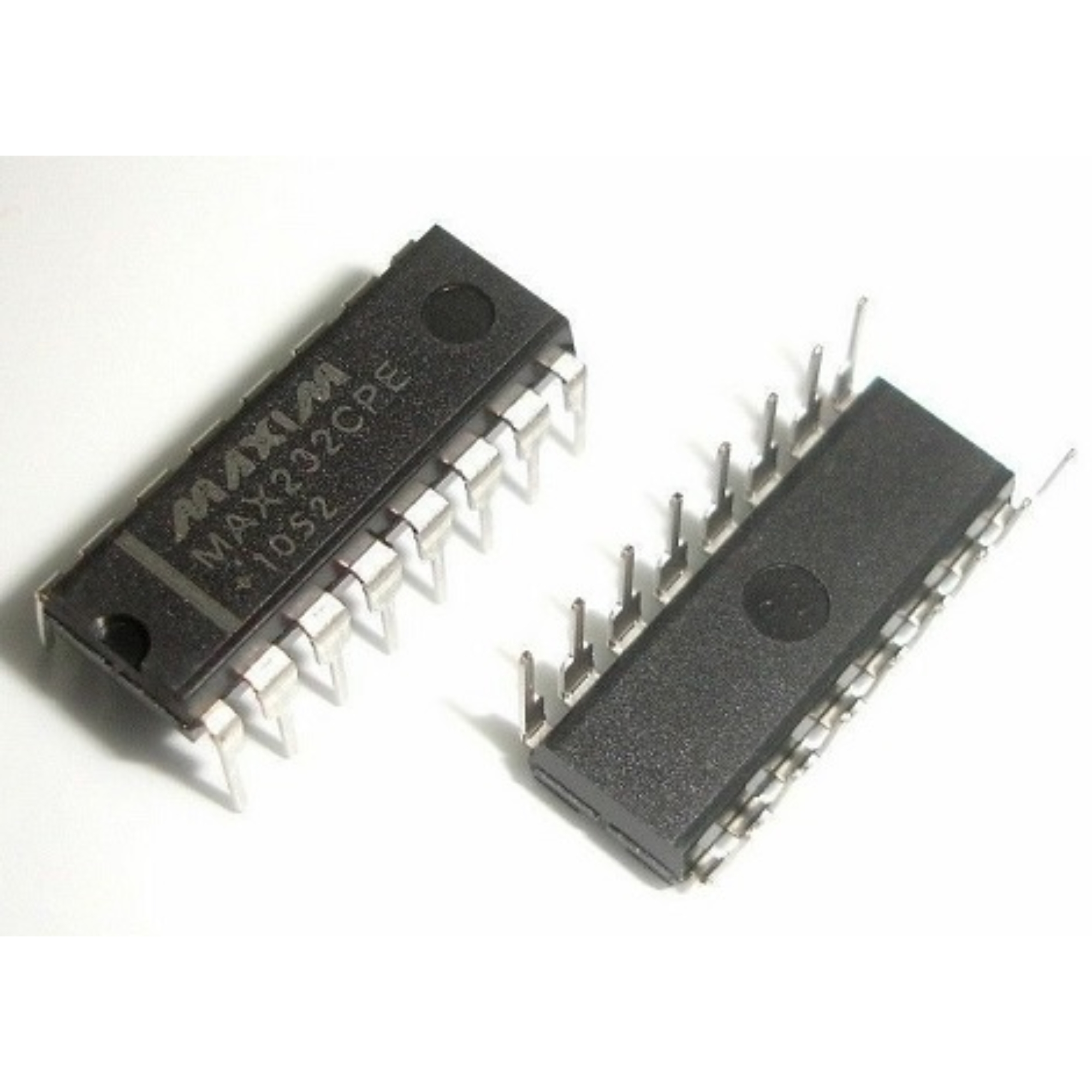

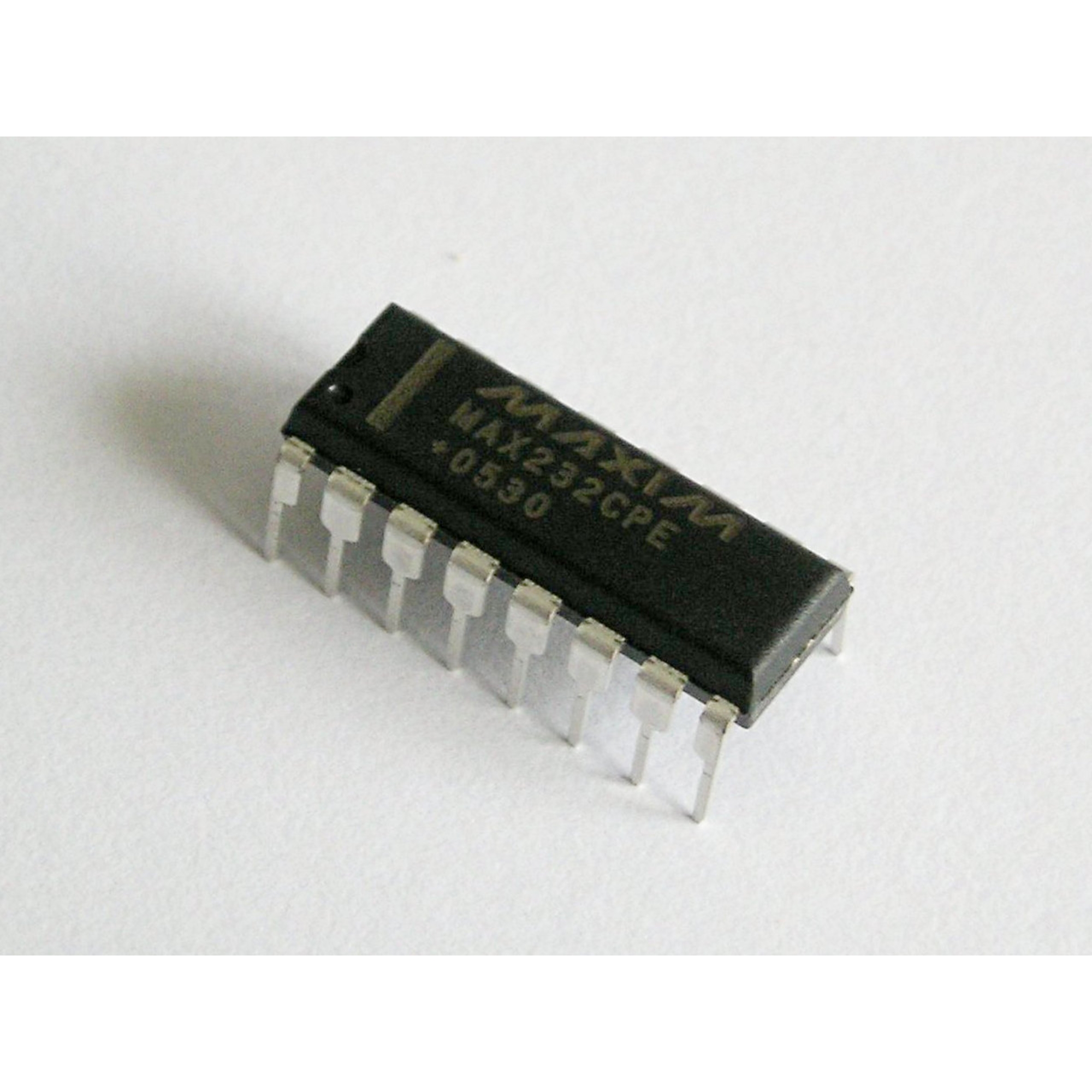

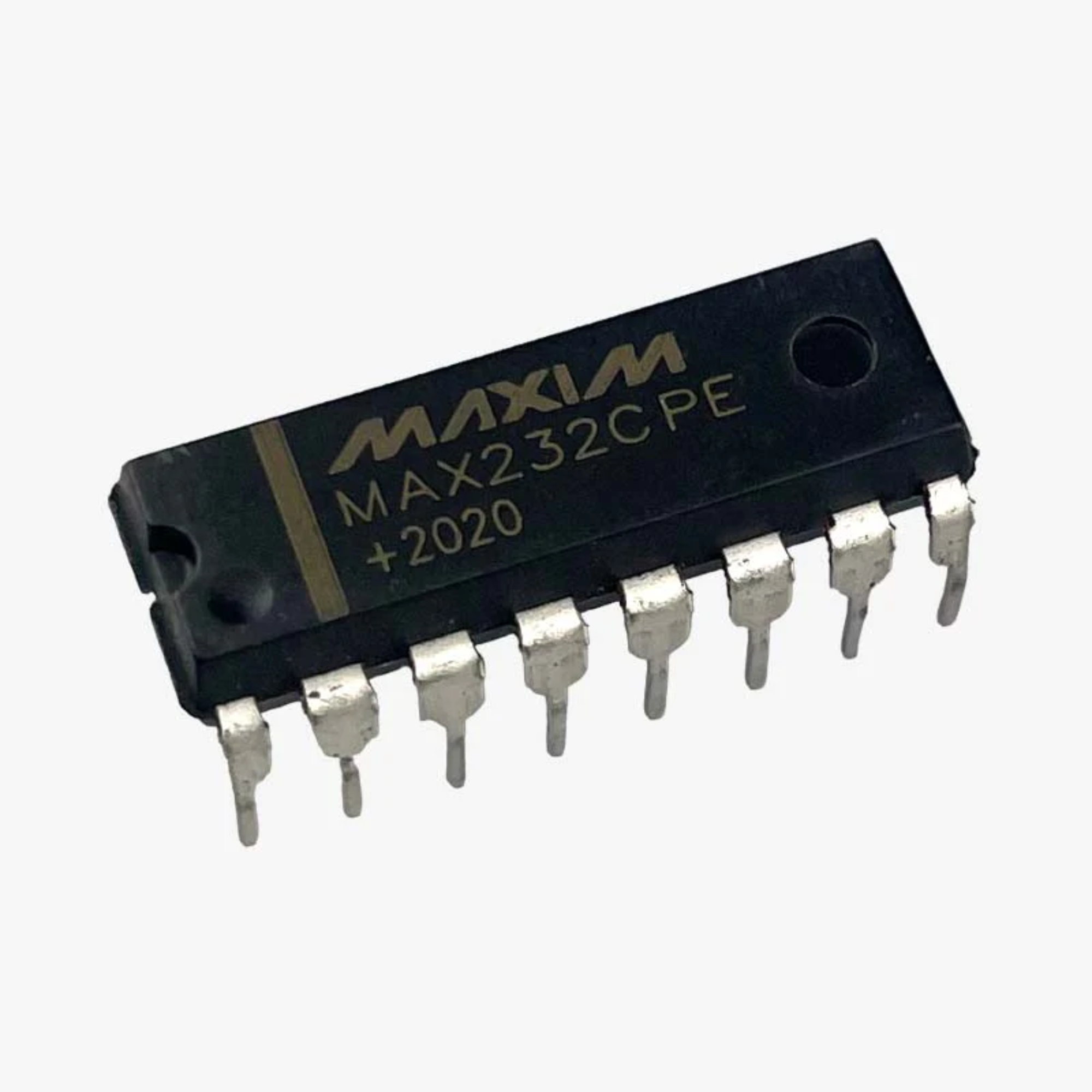

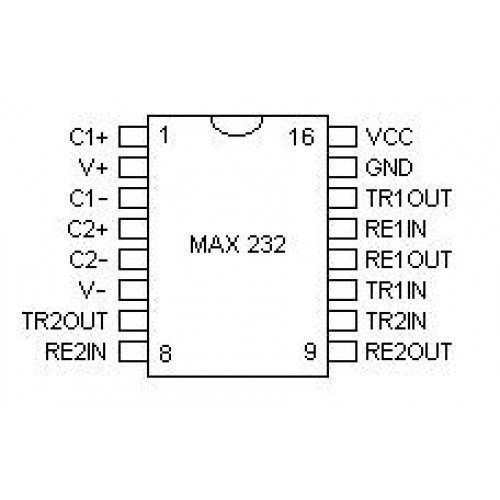

Max232 TTL Converter IC

Max232 TTL Converter IC is a IC that converts signals from a TIA-232(RS-232) serial port to signals suitable for use in TTL- compatible digital logic circuits, typically converts the RX, TX, CTS, RTS signals. This is a dual receiver or dual transmitter. It gives about ±7.5V TIA-232 Voltage level output from 5V input by on-chip charge pumps and external capacitors which makes it useful to implement TIA-232 in devices.

The receiver reduces TIA-232 inputs, which can be up to ±25V, to 5V TTL levels. The typical threshold and hysteresis of the receiver is 1.3V and 0.5V respectively.

Specifications:

• It is TTL/CMOS to RS232 Converter IC
• It Can support two conversions at the same time as it is a Dual drivers and Receivers
• set-up and initialize is easy
• Operating speed: 120kbit/s
• Input Levels: ±30-V
• Operating current: 8mA

Applications:

• Used to Connect Microcontroller with Computers
• TTL/CMOS logic to RS232 converters
• Used in RS232 cables

Package Includes:

• 1 x Max232 TTL Converter IC
