MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module

Name: MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module
Brand: Generic / Other
SKU: ANIL2553
Price: 403.00 INR
Availability: OutOfStock

grade Be the first to review

SKU: ANIL2553 content_copy

Brand: Generic / Other

₹403.00 (Incl. 18.00% GST) Excl. GST: ₹341.53

error Currently Out of Stock

receipt_long GST Invoice with ITC Claim

inventory Wholesale & Volume Pricing Click tier to auto-select

1 – 4 pcs

₹403.00

Regular

5 – 9 pcs

₹382.85

Save 5%

10+ pcs

₹362.70

Save 10%

Currently Out of Stock

This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!

pin_drop Check Delivery & Shipping SLA Free Shipping > ₹2,000

local_shipping

Dispatches in 24h

From Ahmedabad Hub

verified

100% Genuine Part

Tested & Quality Checked

receipt_long

GST B2B Invoice

Input Tax Credit Eligible

support_agent

7-Day Support

Easy Defect Replacement

chat Need Technical Help? Chat on WhatsApp

memory Technical Parameters & Datasheet Summary

SKU: ANIL2553

Component Title MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module

Part Number / SKU ANIL2553

Brand / Manufacturer Generic / Other

Category & Taxonomy Voltage and Current Sensors

Applicable GST Rate 18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)

Packaging Protection Anti-Static Moisture Barrier Shielding Bag (ESD Protected)

Dispatch Hub Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India

Datasheet & Queries? chat Ask an Application Engineer on WhatsApp

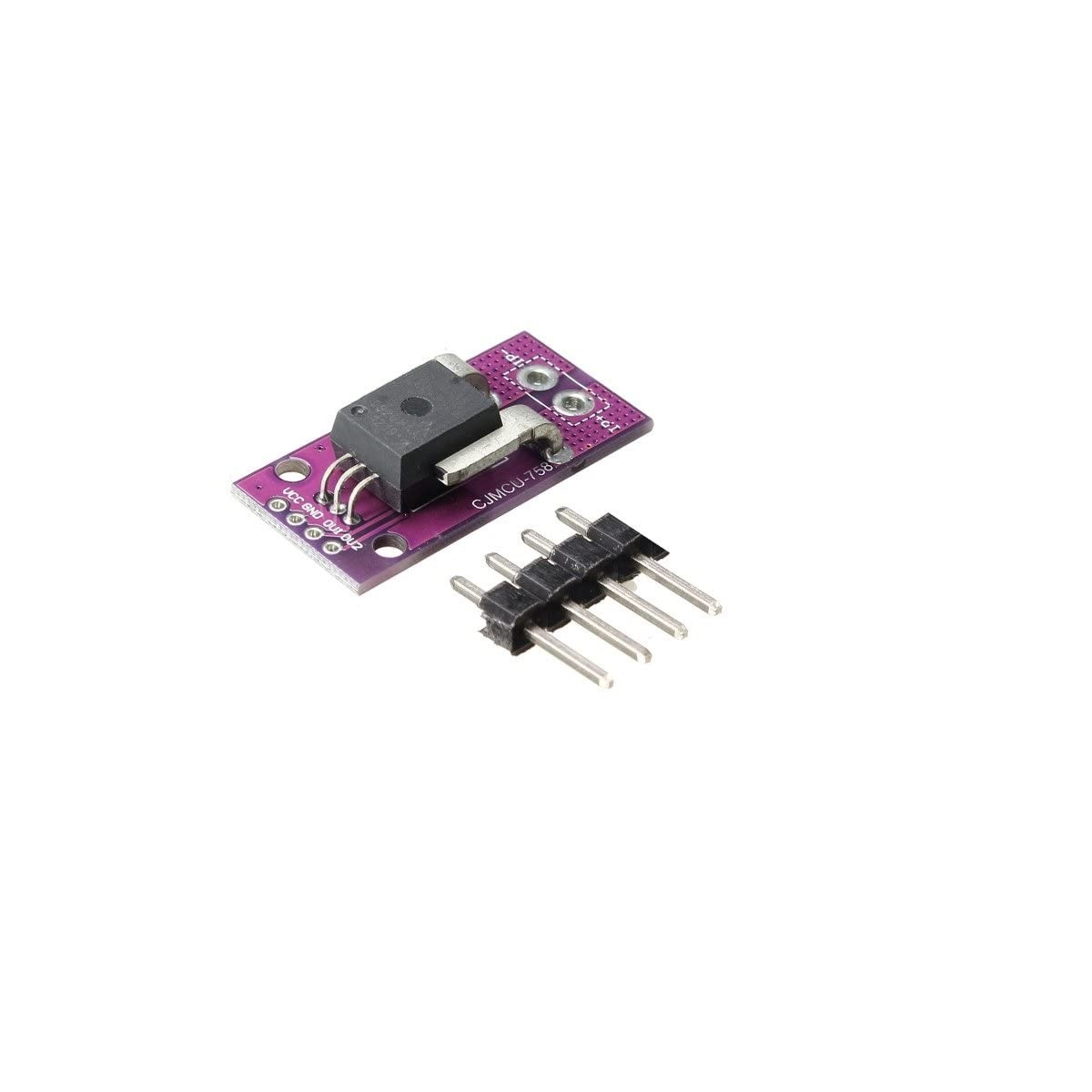

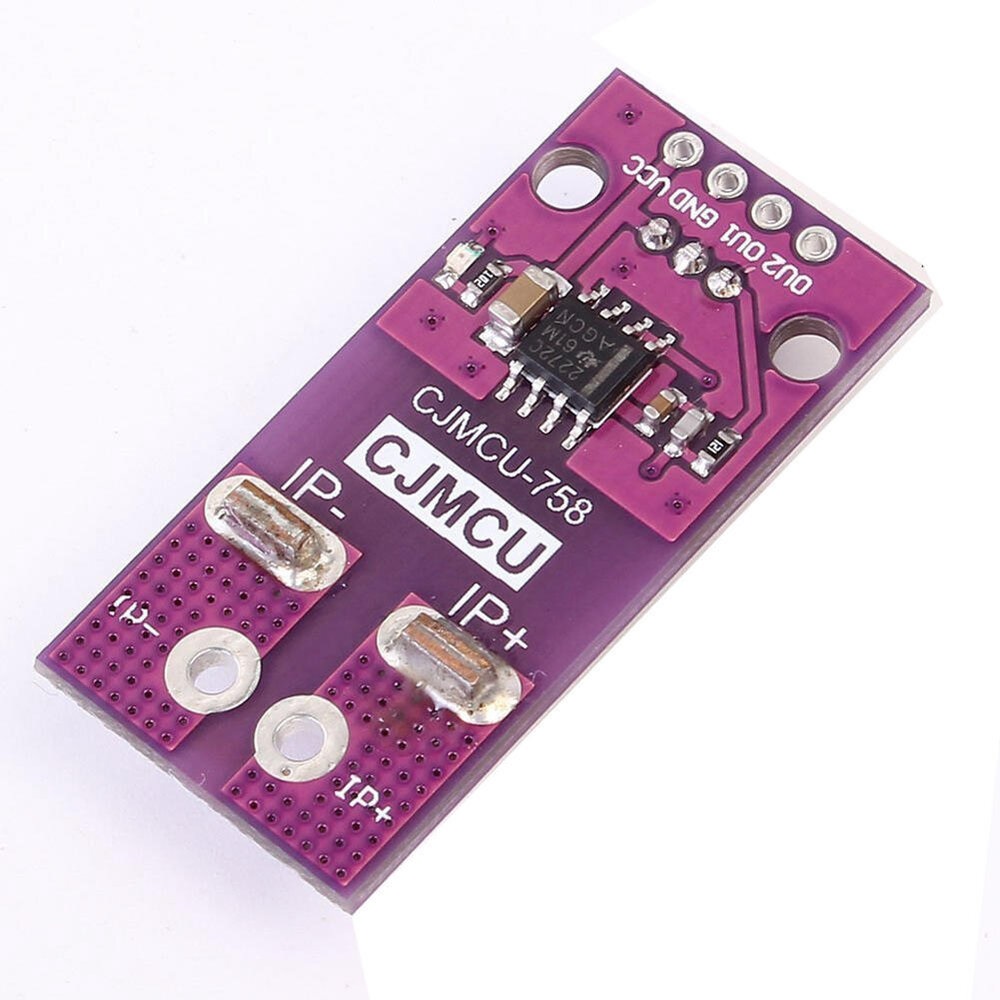

This MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module is based on the Allegro Hall-effect Based Linear Current Sensor IC ACS758LCB-050B. This is 50 Ampere Bi-directional current sensor Module. Features: Small in...

Features:

Small in size, with easy mounting capability.
Monolithic Hall IC for high reliability
Extremely stable output offset voltage
Factory-trimmed for accuracy.
Nearly zero magnetic hystereses.

Specifications:

Model Type: Hall Current Sensor
Operating Current (mA): 13.5 mA
Storage Temperature (°C): -65 °C – 165 °C
Output Current (mA): 3 mA
Bandwidth (KHz): Internal – 120 KHz
Detection range: ±50A
Linearity (mV/A): 40
Operating Temperature (°C): -40 to 150
Weight: 8 g
Module Size: 37 X 18

The relationship between voltage output and current input:

VOUT = VOUT(Q) + Vsens x I VOUT(Q) is the quiescent output voltage, which is VCC/2, which is the output voltage when there is no input. Vsens is a sensor-sensitive scale, also known as a coefficient. I is the current flowing from IP+ to IP-.

For example, suppose the sensor model is 050B, VCC is 5V, and I current is 10A, then the output is 5V / 2+40mV/A x10A=2.9V.

Package Includes:
