High Sensitivity Vibration Sensor Module

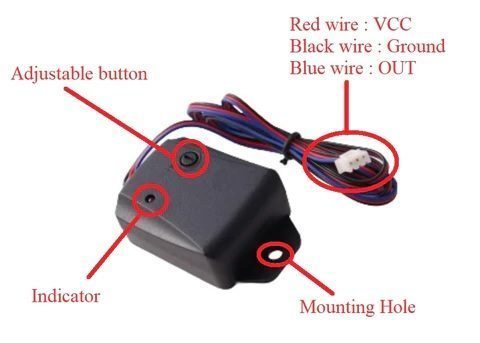

High Sensitivity Vibration Sensor Module is a cost-effective solution with high sensitivity, fast response, and superior performance. It is designed to detect vibration signals through its internal inductance coil and supports a 5~15V power supply. The sensor has a digital signal output, adjustable sensitivity, and an onboard LED indicator that provides feedback on the sensor’s status. When vibration is detected, the sensor outputs a Low signal and the LED indicator turns on. This sensor can be connected to Arduino to create an alarm system or vibration monitor.

Vibration detection can be controlled in a wider range, has been widely applied to automobile, and motorcycle anti-theft systems, the vehicle alarm is 80% with this kind of sensor. The sensor can also be used with MCU, wireless transmitting module, a wired alarm, etc.

Features:

• With signal output indicator indication;
• Single signal output, detecting the vibration output delay 1S signal;
• The output valid signal is low level and can be connected to the controller such as single chip microcomputer;
• With mounting holes, easy to install and flexible;
• The detection vibration sensitivity can be adjusted;
• The output lead of the circuit board is 1 meter long, with standard 2.54-3pin socket for easy connection.

Specifications:

• Working voltage: 5-15VDC
• Output current: ≤100mA (maximum load current)
• Static current: ≤6mA
• Dimensions: 1.9×1.5×0.8 in
• Weight: 10g

Applications:

• Can be used in automobiles to check vibration occasion
• It can be used in motor cycle anti-thief device.
• Can be used in electronic lock
• It can be used in security control.

Package Includes:

• 1 x Vibration Sensor Module High Sensitivity
