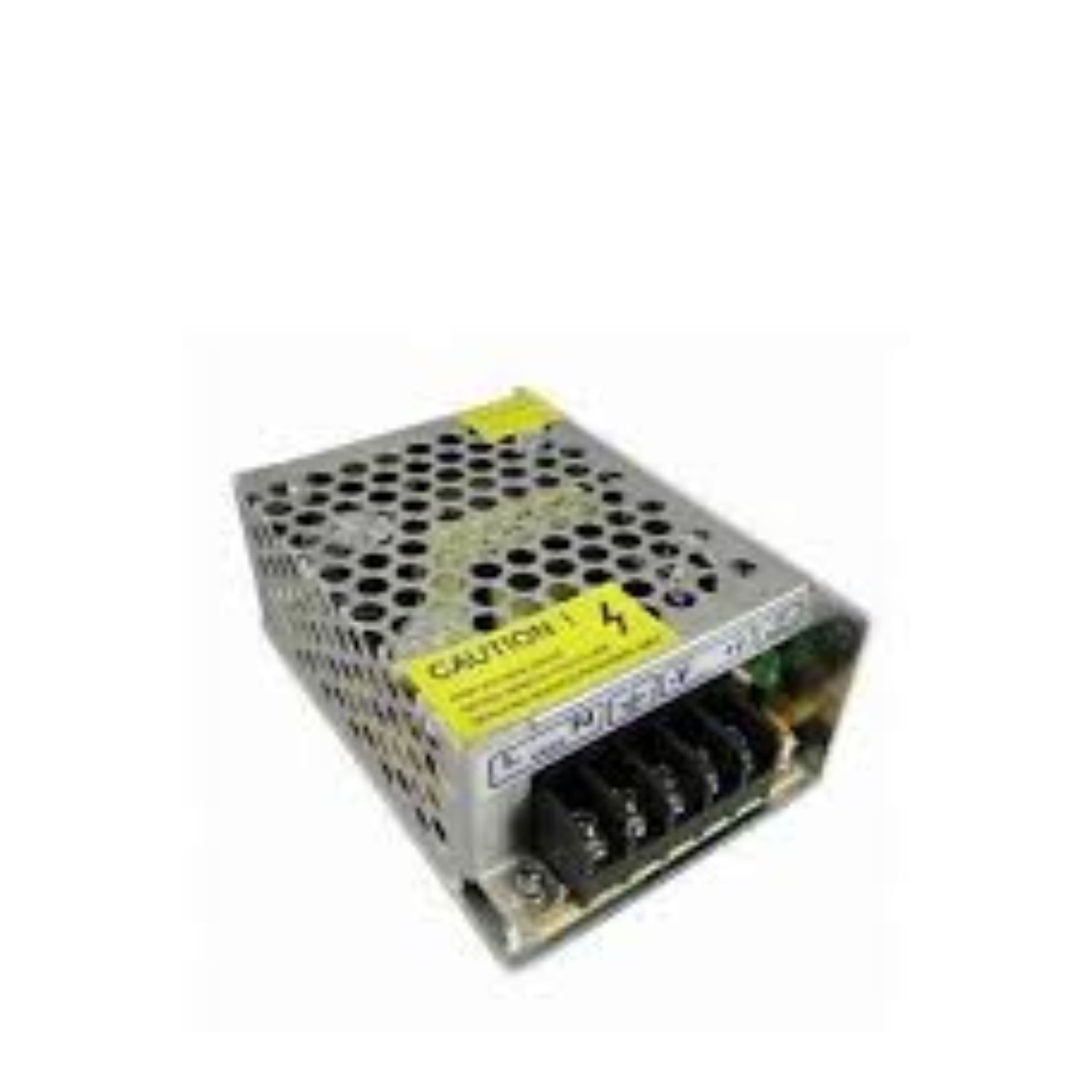

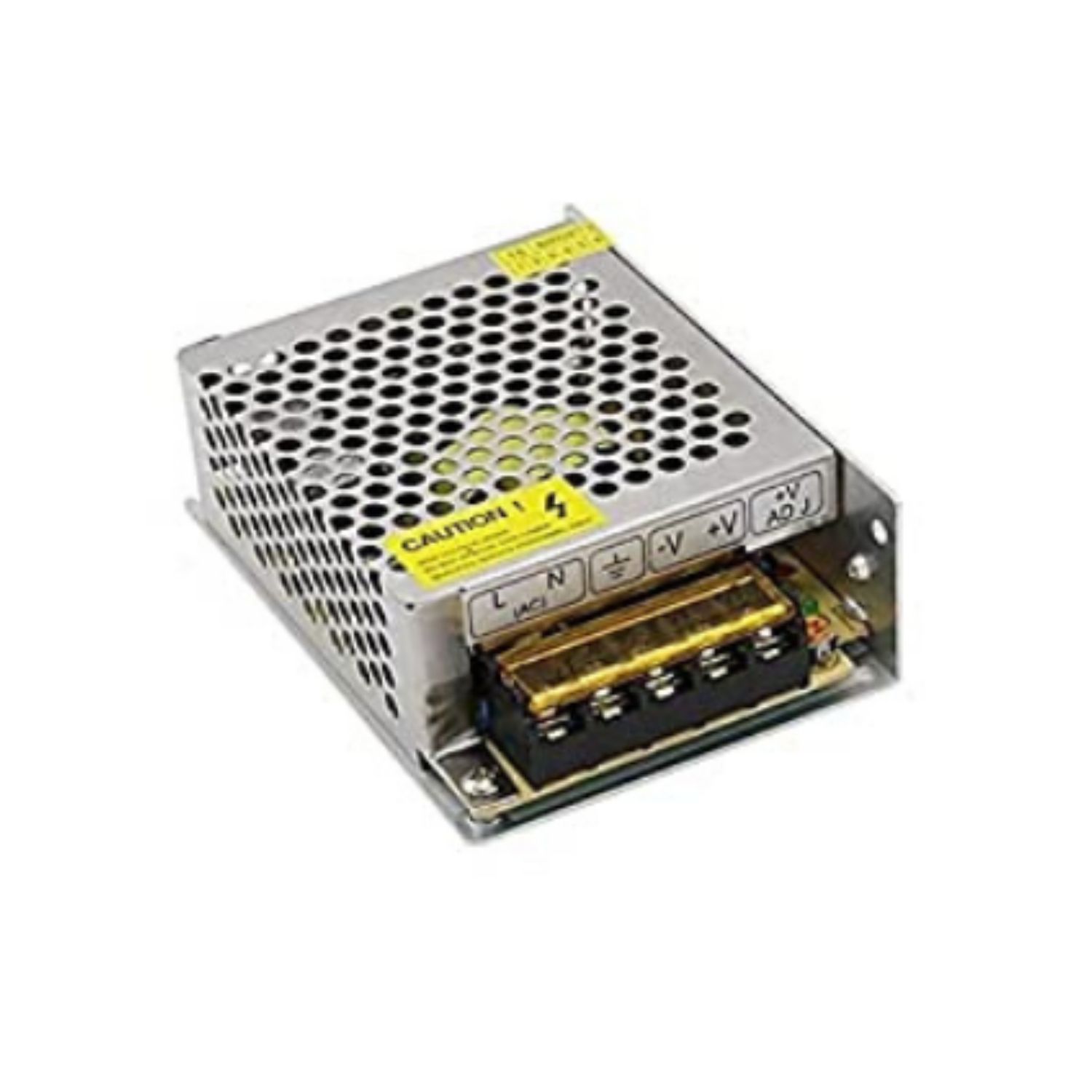

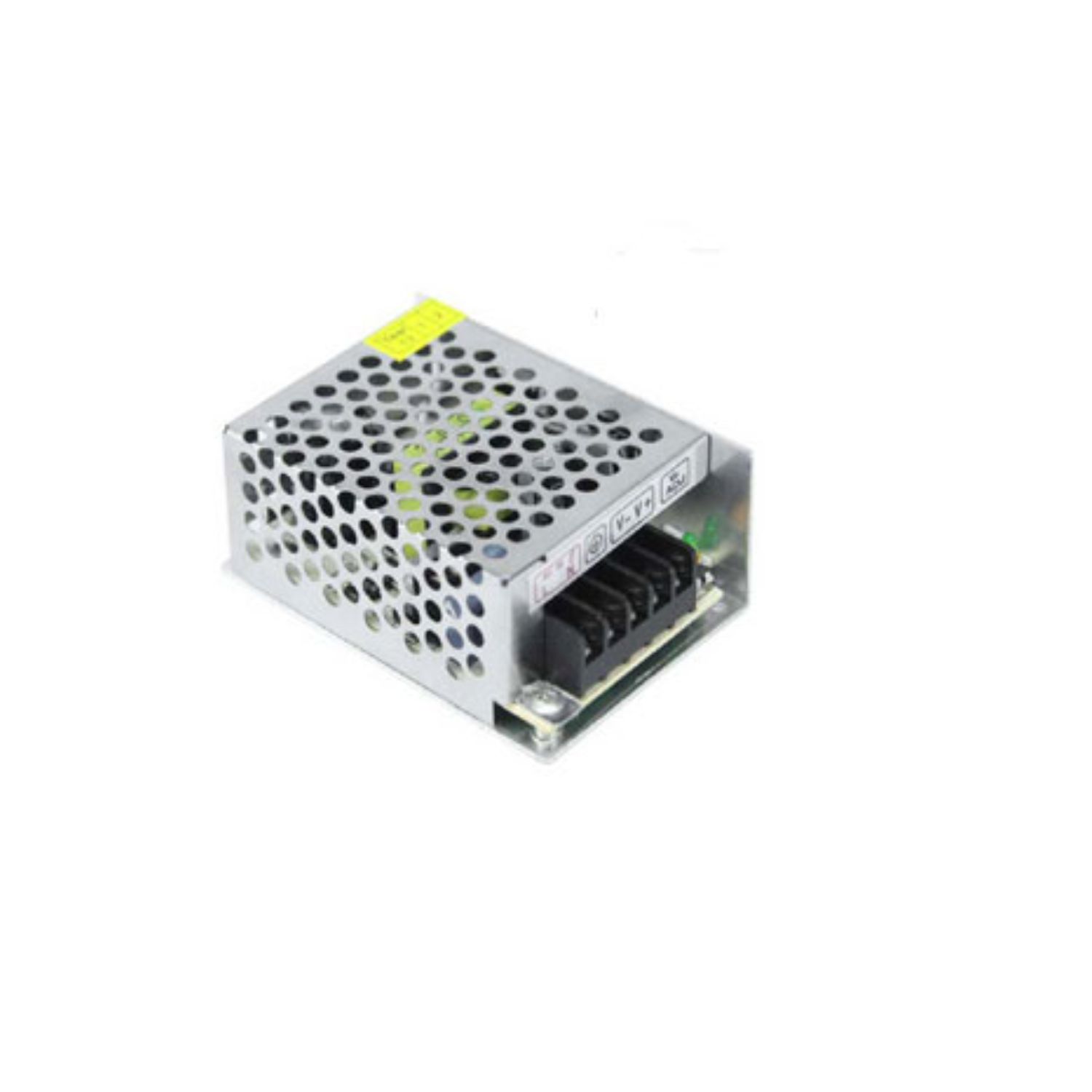

12V 2A 24W Metal SMPS Power Supply

This is a 12V 2A 24W Metal SMPS Power Supply. A switched-mode power supply is an electronic power supply that incorporates a switching regulator to convert electrical power efficiently. Like other power supplies, an SMPS transfers power from a DC or AC source (often mains power) to DC loads, such as a personal computer, while converting voltage and current characteristics. Unlike a linear power supply, the pass transistor of a switching-mode supply continually switches between low-dissipation, full-on, and full-off states, and spends very little time in the high-dissipation transitions, which minimizes wasted energy. Similar name for same type is 12V SMPS, 12V 2A SMPS, 12V Power Supply, 12V 2A Power Supply, 12V 24Watt SMPS, 25Watt 12V SMPS, ME-12V02A-MS.

Features:

• Universal AC input / Full range
• 100% Full Load Burn-in Test
• Cooling by Free Air Convection
• High Quality and High Performance
• LED power supply with a metal body for hidden installation for LED lighting
• Design with Built-in EMI Filter, to improve signal precision.
• No Minimum Load.
• Compact Size Light Weight.
• High Efficiency, Reliability & low energy consumption
• Category – Switch Mode Power Adaptor (SMPS)

Specifications:

• Input Voltage Range: 100VAC ~ 264VAC
• Frequency Range: 50/60Hz
• Output Voltage: 12VDC
• Output Current: 2A
• Power Rating: 24 Watts
• Protections: Overload / Over Voltage / Short Circuit
• Shell Material: Metal Case / Aluminum Base
• Color: Silver
• Length: 87 mm
• Width: 58 mm
• Height: 33 mm
• Weight: 100 gm

Package Includes:

• 1 x 12V 2A 24W SMPS Metal Power Supply Non Water Proof

Note: Product Images are shown for illustrative purposes only and may differ from the actual products.
