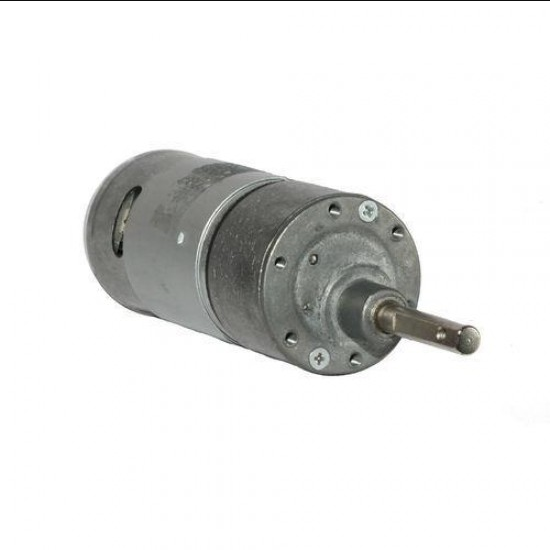

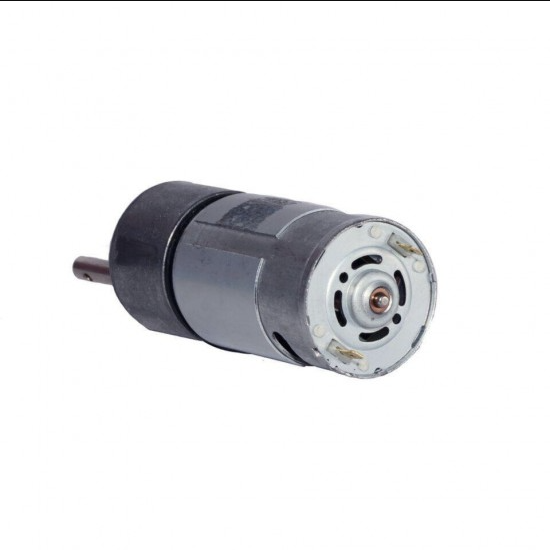

12V DC RS-37-555 Side Shaft Geared Motor - 300 rpm
12V DC RS-37-555 Side Shaft Geared Motor - 300 rpm
RS-37 Gear motor is widely used for Industrial Applications. Carries torque greater as compared to Johnson Geared Motors and consumes less current as well. This motor has higher durability and is able to work for hours at a time. Base motor RPM is 4500.
12V DC RS-37-555 Side Shaft Geared Motor - 300 rpm are always in demand from the DIY project makers as well as small business machines like a popcorn maker, Floor cleaning machine. Other than that RS-37 gear motor with different torques and RPM rating used in variety of applications such as auto shutter, welding machines, water meter, household appliances, Slot machines, Money Detector, automatic actuator, coffee machine, Towel disposal, lighting, Coin refund devices, Mechanical weighing machine, Peristaltic pump and many more.
Features:
- Widely used for Industrial Applications
- Carries torque greater than Johnson Geared Motors
- Consumes less current
- Higher durability
- Best for DIY project makers
Specifications:
|
Operating Voltage Range |
6V to 15V DC |
|
Recommended Voltage (DC) |
12V |
|
Shaft Diameter (mm) |
6 |
|
Rated RPM (at 12V) |
300 |
|
Rated Torque (Kg-cm) |
4 |
|
No- Load Current (A) |
0.2 |
|
Full Load Current (A) |
3 |
|
Full (Stall) Load Torque (Kg-cm) |
20 |
|
Gearbox Length (mm) |
27 |
|
Base Motor Length (mm) |
65 |
|
Motor Body Diameter (mm) |
37 |
|
Motor Shaft Length (mm) |
31 |
|
Motor Shaft Type |
D type with hole |
|
Weight (in gm) |
480 |
Package Includes:
- 1 x 12V DC RS-37-555 Side Shaft Geared Motor - 300 rpm
No reviews yet. Be the first to review this product!
