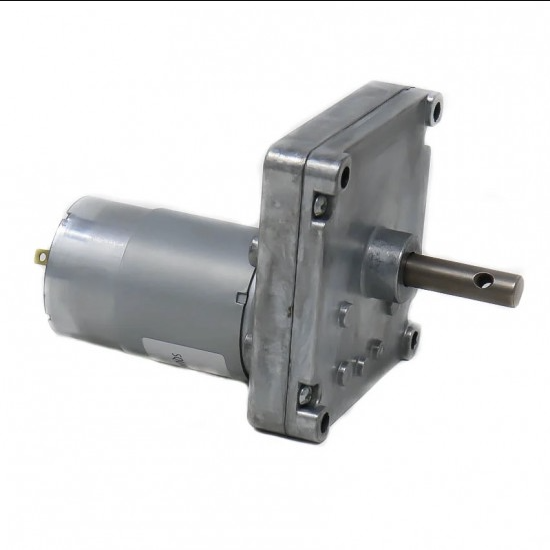

12V DC Square Gear / Geared Motor 60 RPM - High Torque
12V DC Square Gear / Geared Motor 60 RPM - High Torque
12v DC Square Gear / Geared Motor 60 RPM - High Torque is a very high torque motor which should be used to make big robots or robotised platform. Gear box is built to handle the stall torque produced by the motor. Drive shaft is supported from with metal bushes.
FEATURES:
- Heavy Duty Metal Gears.
- Uniformity of parts.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- Relatively low coefficient of friction.
- Corrosion-resistance; elimination of plating, or protective coatings.
SPECIFICATIONS:
|
Operating Voltage |
12 V DC |
|
No Load Current |
≤220 mA |
|
No load Speed |
60 RPM (at 12V) |
|
Full Load Current (mA) |
≤1300 |
|
Rated Current |
≤4800 mA |
|
Rated Torque (Kg-cm) |
40 |
|
Shaft Length (mm) |
27 |
|
Shaft Diameter (mm) |
8 |
|
Length (mm) |
92 |
|
Dimension Overall |
70 X 70 (Sq.) X 90 (Length) |
|
Mounting Holes |
M5 threading (60 X 60 Square) |
|
Weight (gm) |
490 |
Application:
- Robotic purposes.
- Central air – conditioning valve
- Coin refund devices
- Industrial applications.
Package Includes:
- 1 x 12V DC Square Gear / Geared Motor 60 RPM - High Torque
