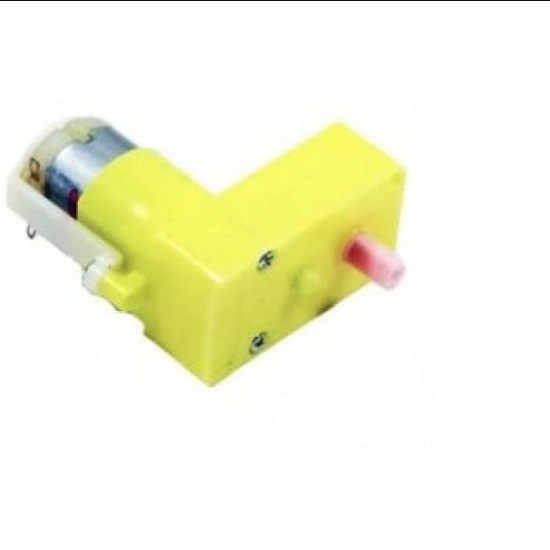

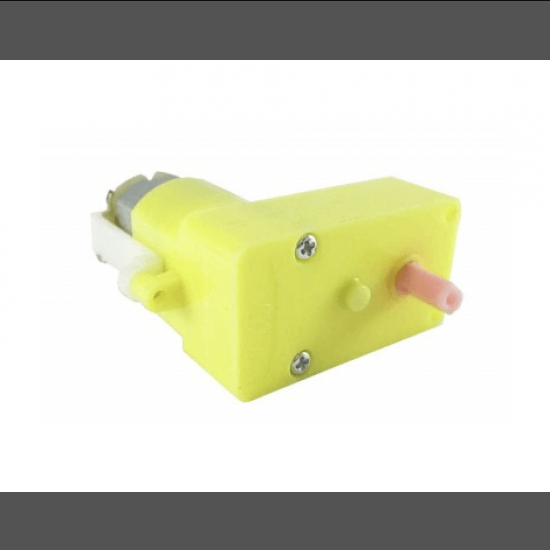

150 RPM BO Motor L-Shape
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil603-2150 RPM BO Motor L-Shape is a Plastic geared Single Shaft L Shaped BO Motor also known as TT Motor. These are light weight plastic body and plastic geared. Just give it 3 volt to 12 volt supply and off it goes. These motors work quite well at low voltages and are quite low weight as compared to DC geared Motors.
This Right Angled BO Motor is perfect for low cost DIY projects, Battery operated toys, RC Toys and other robotics and hobby project.
Features :
- Cost-effectiveness of the injection-molding process.
- Elimination of machining operations.
- Low density: lightweight, low inertia.
- Uniformity of parts.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Corrosion-resistance; elimination of plating, or protective coatings.
- The quietness of operation.
- Tolerances often less critical than for metal gears, due in part to their greater resilience.
- Consistency with the trend to greater use of plastic housings and other components.
Specifications:
|
Operating Voltage(VDC) |
3~12 |
|
Shaft Length (mm) |
8.5 |
|
Shaft Diameter (mm) |
(Double D-type) 5.5 |
|
No Load Current |
40-180mA. |
|
Rated Speed(After Reduction) |
150 |
|
Rated Torque |
0.8 kg-cm |
|
Weight (gm) |
30 |
|
Dimensions in mm (LxWxH) |
42 x 55 x 22 |
|
Gearbox Shape |
L-Shape |
Note: These Motors are available in three different colors i.e. Yellow, Black, and white, we will ship it randomly.
Package Includes :
- 1 x 150 RPM BO Motor L-Shape
