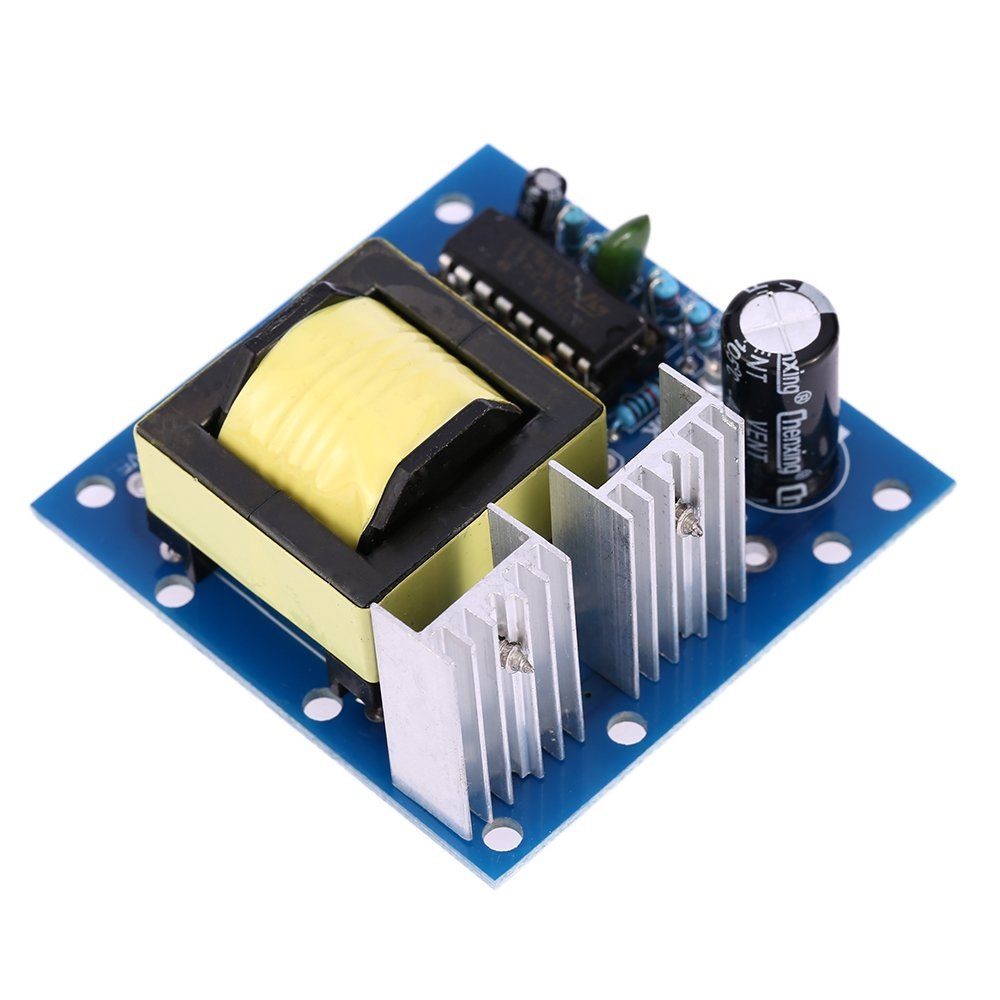

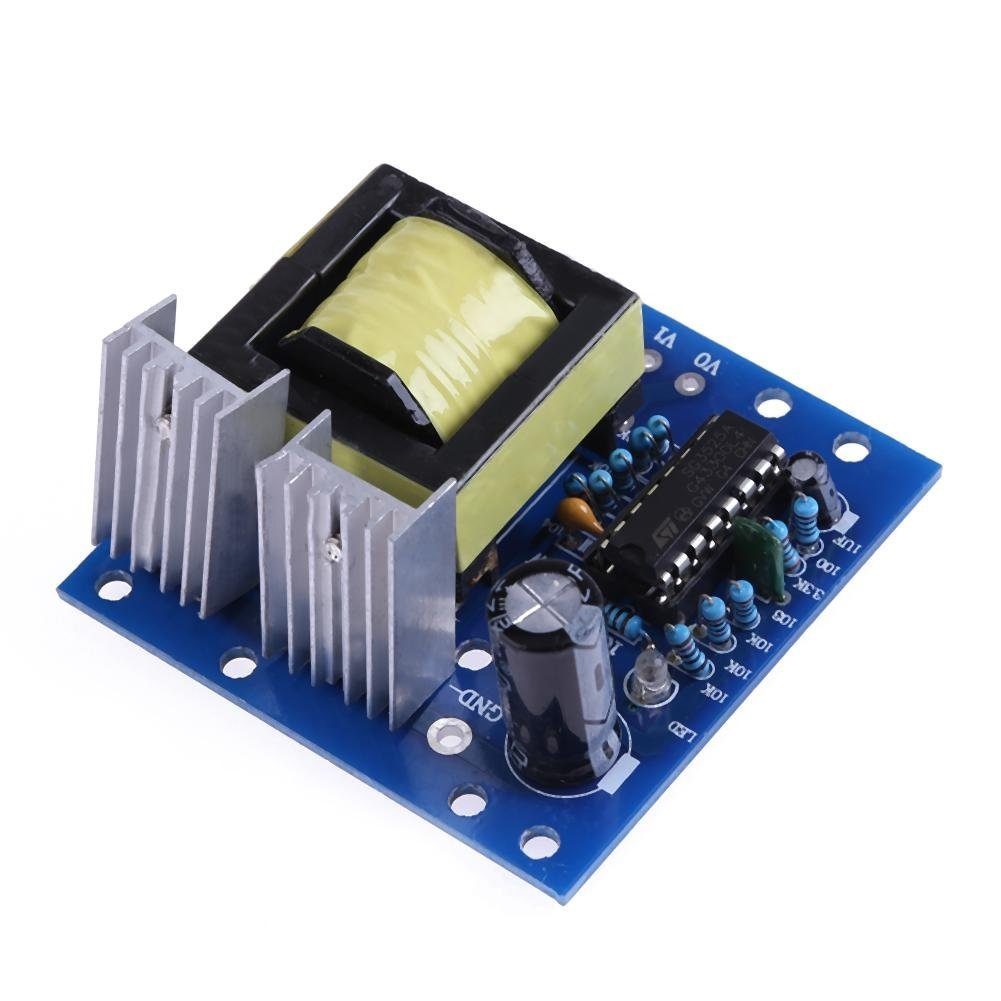

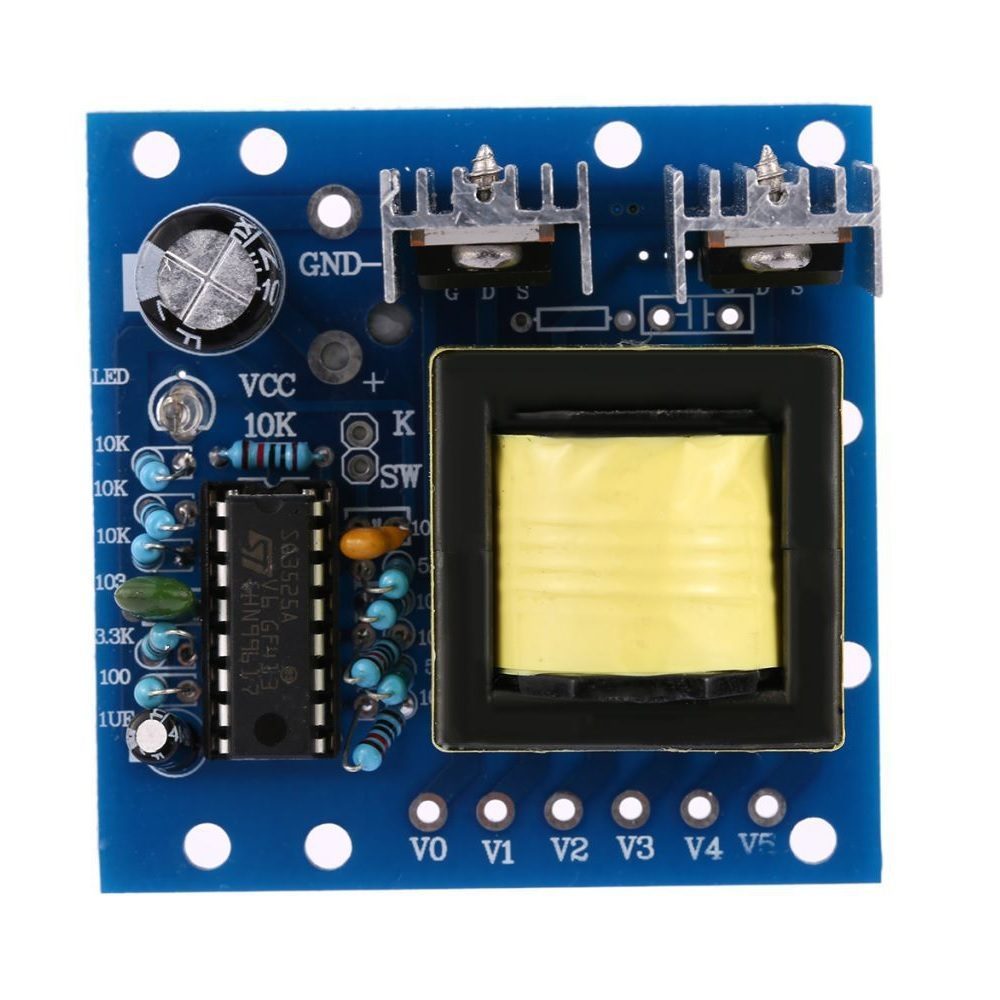

150W DC 12V to AC 110V 220V Inverter Boost Module Board Transformer Power Car Converter

The 150W DC 12V to AC 110V 220V Inverter Boost Module Board Transformer Power Car Converter is a versatile electronic device designed to efficiently convert direct current (DC) power from a 12V source, such as a car battery, into alternating current (AC) power at either 110V or 220V.

Features:

• This dc to ac converter module is capable of delivering a continuous power output of up to 150 watts.
• The module accepts a DC input voltage of 12V making the inverter ideal for use in vehicles, such as cars, trucks, RVs, and boats.
• The inverter provides the flexibility to choose between two output voltage options: 110V and 220V.
• The module is designed with efficiency in mind, ensuring that the conversion process from DC to AC minimizes energy losses and heat generation.
• The conversion voltage is converted from 12v dc to 220v ac converter, and the output waveform is a frequency square wave.
• Using high-quality PCB board, this inverter module is very durable after long time use.
• This inverter module is mainly used in the inverter stage before electronic DIY work.
• This inverter module is used in night market vendors, driving, household power outages, etc.
• With small in size and light in weight, this inverter module is very easy to install.

Specifications:

• Model : 150W Boost Inverter
• Input: DC12V
• Output: AC 0-110V-172V-200V-220V
• Quiescent Current: About 0.05A
• Output Waveform: High frequency square wave
• Output Frequency: About 20KHz
• Dimensions: 58x58x28mm
• Weight: 120g

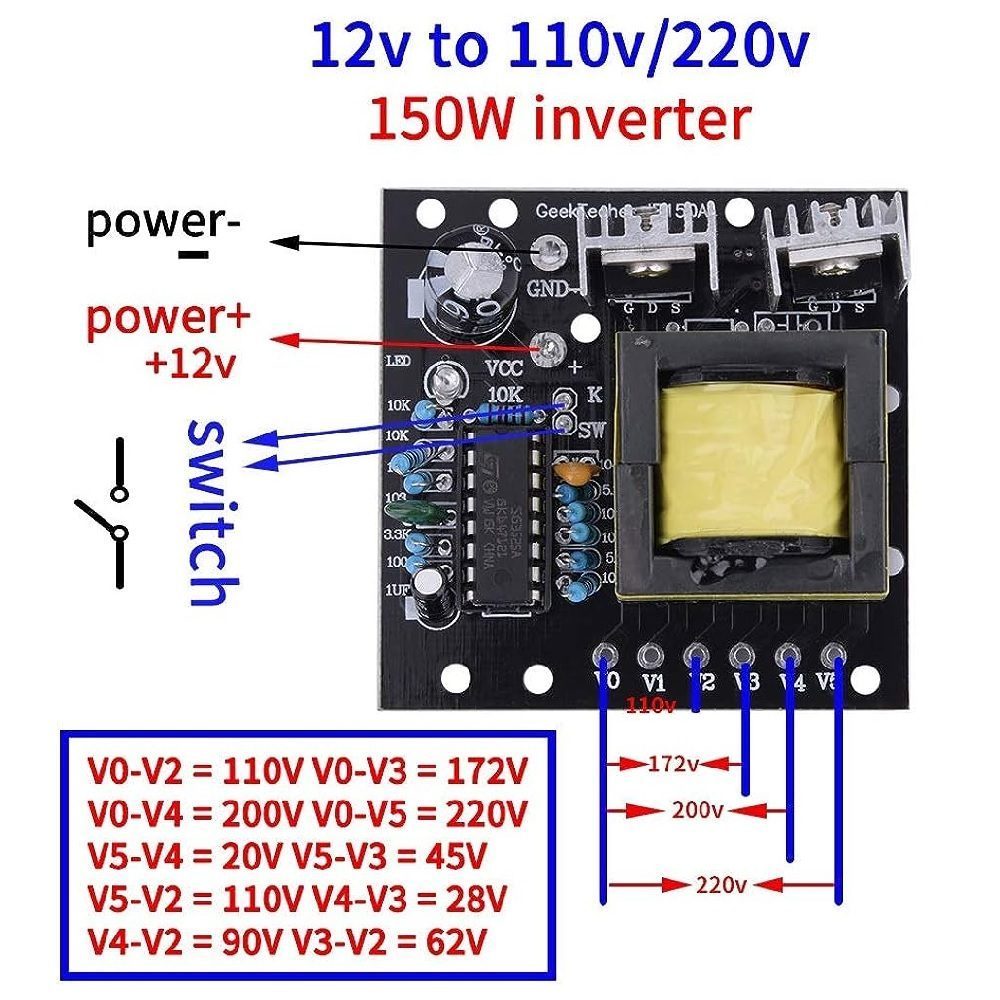

The Output Wiring Voltage as Follows:

• V0–V2=110V
• V0–V3=175V
• V0–V4=200V
• V0–V5=220V
• V5–V4=20V
• V5–V3=45V
• V5–V2=110V
• V4–V3=28V
• V4–V2=90V
• V3–V2=62V

Note:

• This board is a high‑frequency square wave AC output, so general inductive appliances cannot carry “motors, fans, coils, , etc.”
• When connecting to a small load (LED lights, mobile phone chargers, DVD set‑top boxes, etc.), it is recommended to connect to a gear with a low output voltage, such as 172V 110V or lower.
• It is recommended to increase the heat sink to work for a long time under heavy load (≥100W),
• The power supply cannot be reversed. In addition, the power supply and the power cord should have enough current
• Do not overload the output and do not short‑circuit.
• The output high frequency no‑load voltage multimeter measurement will show high (it is incorrect, not the actual voltage)

Special Instruction:

• For electronic products, it’s best to connect a high‑frequency diode to the output of our board to rectify it into a DC output, because the rectification part of many switching power supplies uses ordinary rectifiers in order to save costs, so it is connected to the “high‑frequency AC “Output” will cause the rectifier diode of the conductor to heat up and damage it, and the diode will break down. Eventually cause the board to burn out.
• Module once soldered will not be eligible for return.

Package Includes:

• 1 x 150W DC 12V to AC 110V 220V Inverter Boost Module Board Transformer Power Car Converter
