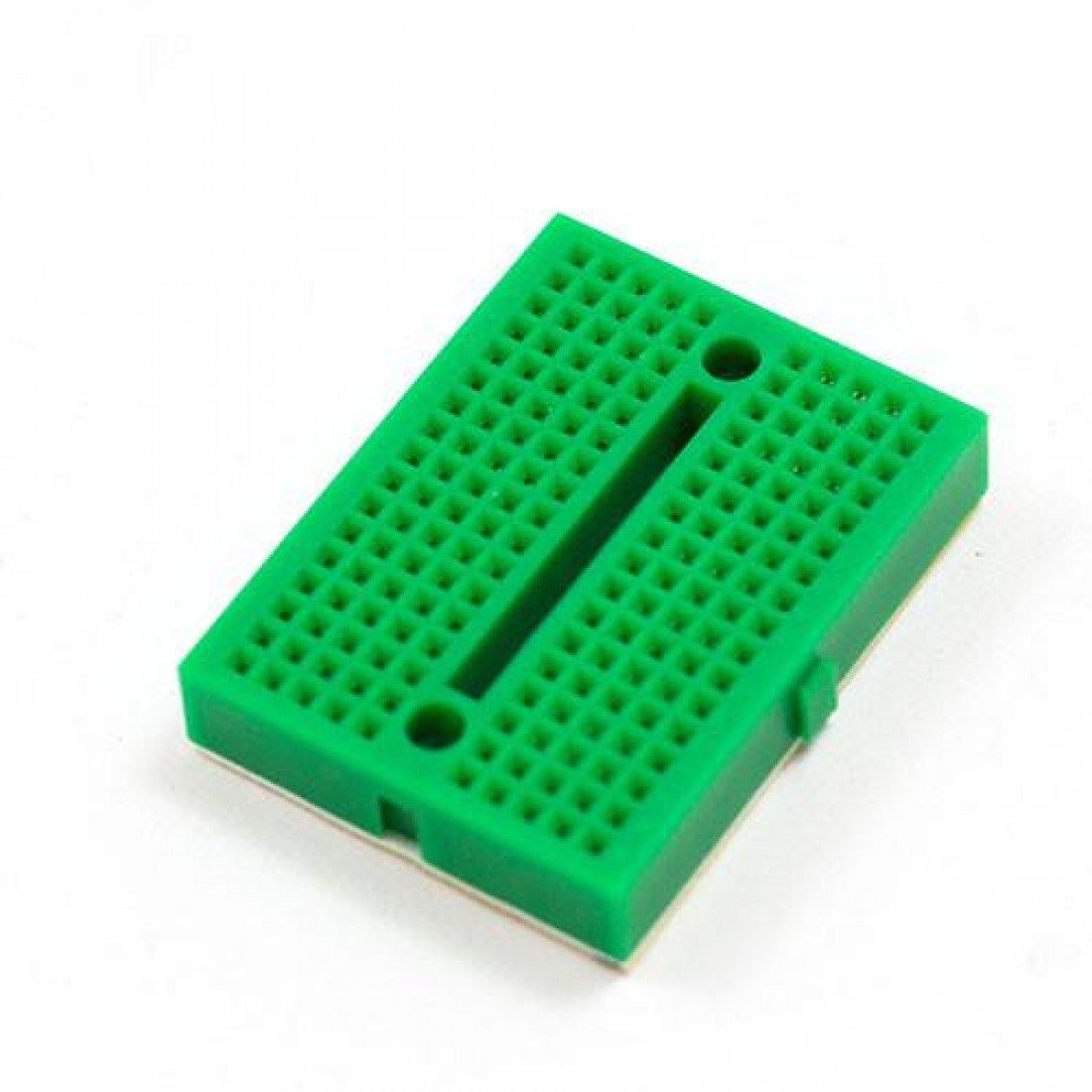

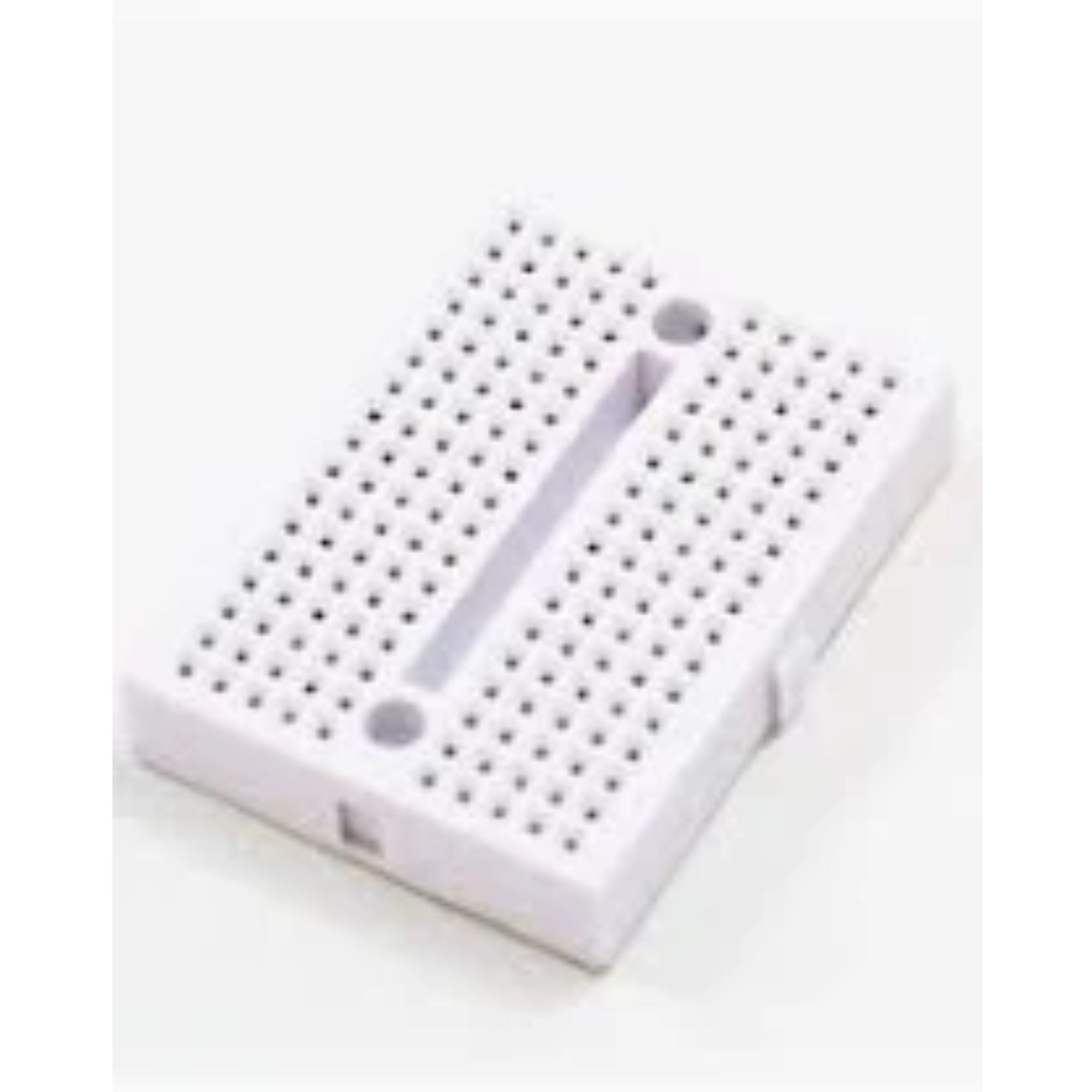

170 pts Mini Breadboard Solderless SYB-170

170 pts Mini Breadboard Solderless SYB-170 Tie Points is named for its 170 tie points. It has 17 columns of 10 holes, which are separated into two pairs by a central notch, and labeled 1 to 17. Each column is also labeled, with a letter from A to J to that they can be easily referenced in instructions ( like the squares on a chess board ). These holes contain small metal clips which both secure components to the breadboard and form electrical connections between them.

A breadboard is used to make up temporary circuits for testing or to try out an idea. No soldering is required so it is easy to change connections and replace components. It has a peel and sticks adhesive backing as well as two mounting holes for M2 screws so you can anchor it down.

Features:

• Use: experimental, testing, robot
• Matching jumper, diameter 0.8mm
• Accepts 20-29 AWG wire sizes.
• Adhesive-backed for permanent mounting.
• Phosphor bronze nickel plated spring clips
• Color: Green, Yellow, Black.

Specifications:

• Points: 170 (10×17)
• Material: ABS
• Colors: Green, Yellow, Black
• Length (mm): 48
• Width (mm): 35
• Height (mm): 9
• Weight (gm): 14

Package Includes:

• 1 x Mini Solderless Breadboard -170 Tie Points

Note : Color of the breadboard will be random.
