20A Intelligent LCD Solar Controller with USB Output Port

Name: 20A Intelligent LCD Solar Controller with USB Output Port
Brand: Generic / Other
SKU: Anil557
Price: 401.00 INR
Availability: InStock

grade Be the first to review

SKU: Anil557 content_copy

Brand: Generic / Other

MRP: ₹682.50 Save ₹281.50 (41% OFF)

₹401.00 (Incl. 18.00% GST) Excl. GST: ₹339.83

In Stock (5 units ready to dispatch from Ahmedabad Hub)

receipt_long GST Invoice with ITC Claim

inventory Wholesale & Volume Pricing Click tier to auto-select

1 – 4 pcs

₹401.00

Regular

5 – 9 pcs

₹380.95

Save 5%

10+ pcs

₹360.90

Save 10%

Qty

pin_drop Check Delivery & Shipping SLA Free Shipping > ₹2,000

local_shipping

Dispatches in 24h

From Ahmedabad Hub

verified

100% Genuine Part

Tested & Quality Checked

receipt_long

GST B2B Invoice

Input Tax Credit Eligible

support_agent

7-Day Support

Easy Defect Replacement

chat Need Technical Help? Chat on WhatsApp

memory Technical Parameters & Datasheet Summary

SKU: Anil557

Component Title 20A Intelligent LCD Solar Controller with USB Output Port

Part Number / SKU Anil557

Brand / Manufacturer Generic / Other

Category & Taxonomy Chargers

Applicable GST Rate 18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)

Packaging Protection Anti-Static Moisture Barrier Shielding Bag (ESD Protected)

Dispatch Hub Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India

Datasheet & Queries? chat Ask an Application Engineer on WhatsApp

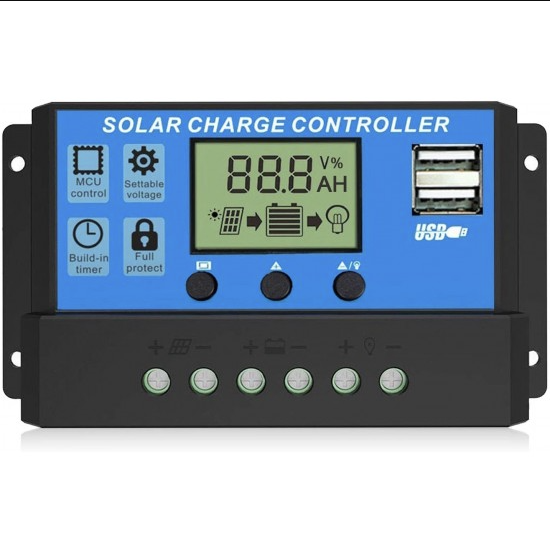

20A Intelligent LCD Solar Controller with USB Output Port

20A Intelligent LCD Solar Controller with USB Output Port is a Digital PWM Solar Charge Controller for the lead-acid batteries connected to a solar power system. When connected to the battery, this charge controller automatically detects the battery voltage from 12V-24V. This charge controller has some advanced features like built-in short circuit protection, open-circuit protection, reverse voltage protection, overload protection, etc which makes it ideal for grid power systems.

Features:

Built-In Industrial Micro Controller
Big LCD Display
Full 4 Stage PWM Charge Management
Low Heat Production
Automatic identification of system voltage level
Adjustable parameters of battery charge-discharge control
Settable operating modes of load
With dual USB 5V output
Battery type setting
Dual Mosfet reverse current protection

Specifications:

Model	SY2024H
Battery Input	12-24V Auto
Charging Current (A)	20
Discharge Current (A)	20
Max. Solar Input (V)	<50
Stop battery charge voltage	13.7V / 27.4V
Load ON voltage	12.6V / 25.2V
Load OFF voltage	10.7V / 21.4V
USB	2A@5V
Operating Temperature (°C)	-35 to 60
Length (mm)	150
Width (mm)	78
Height (mm)	35
Weight (gm)	150

Protections:

Short circuit protection
Over temperature protection
Battery low voltage protection
Battery reverse polarity protection
Battery overcharge protection

Package Includes:

1 x 20A Intelligent LCD Solar Controller

Note :

Suitable for solar panels regulation only
Pay attention to polarity at wiring connecting
Install the charge controller to the battery as close as possible to avoid losses
Please connect controller to the battery first and then to the solar panel and to the load. The disassemble in the reverse order
When installing for the first time, please make sure the battery has sufficient voltage so that the charge controller can recognize the battery type
Charge controller heats up during operation. Please be careful and install it in the well-ventilated place
