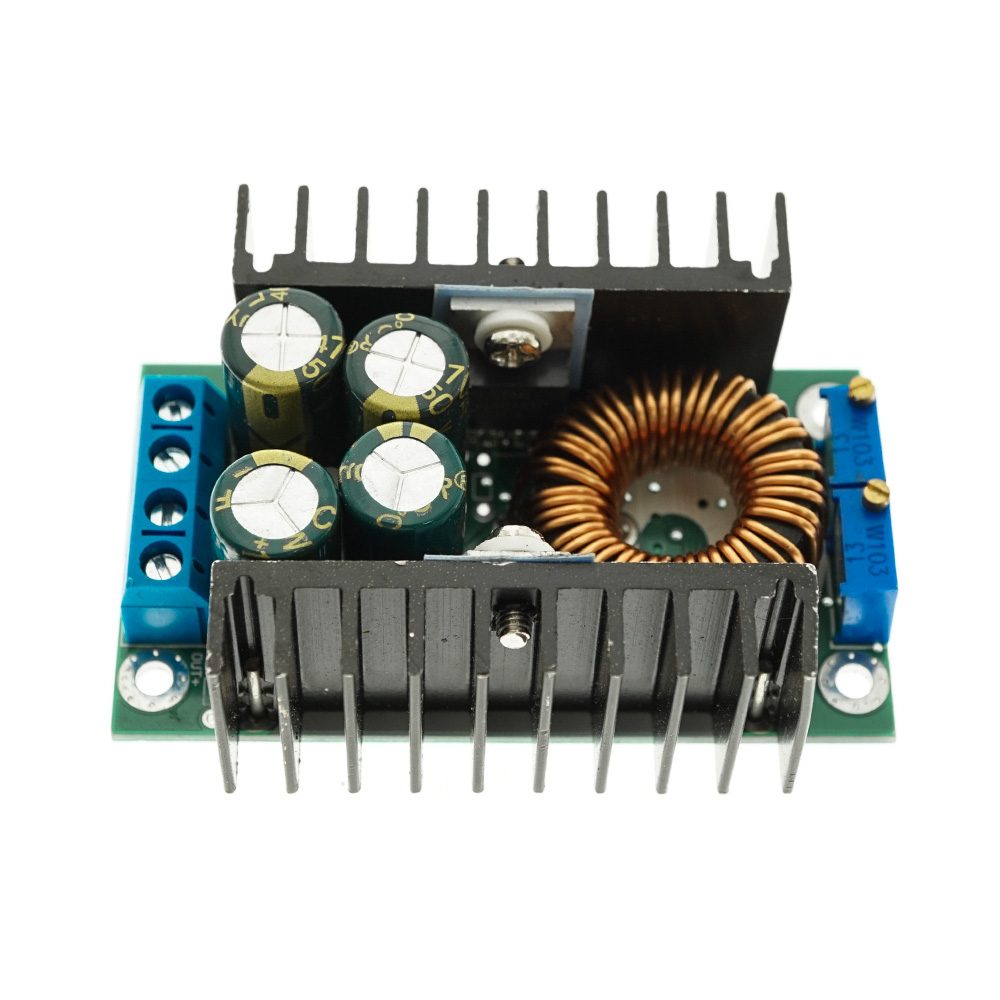

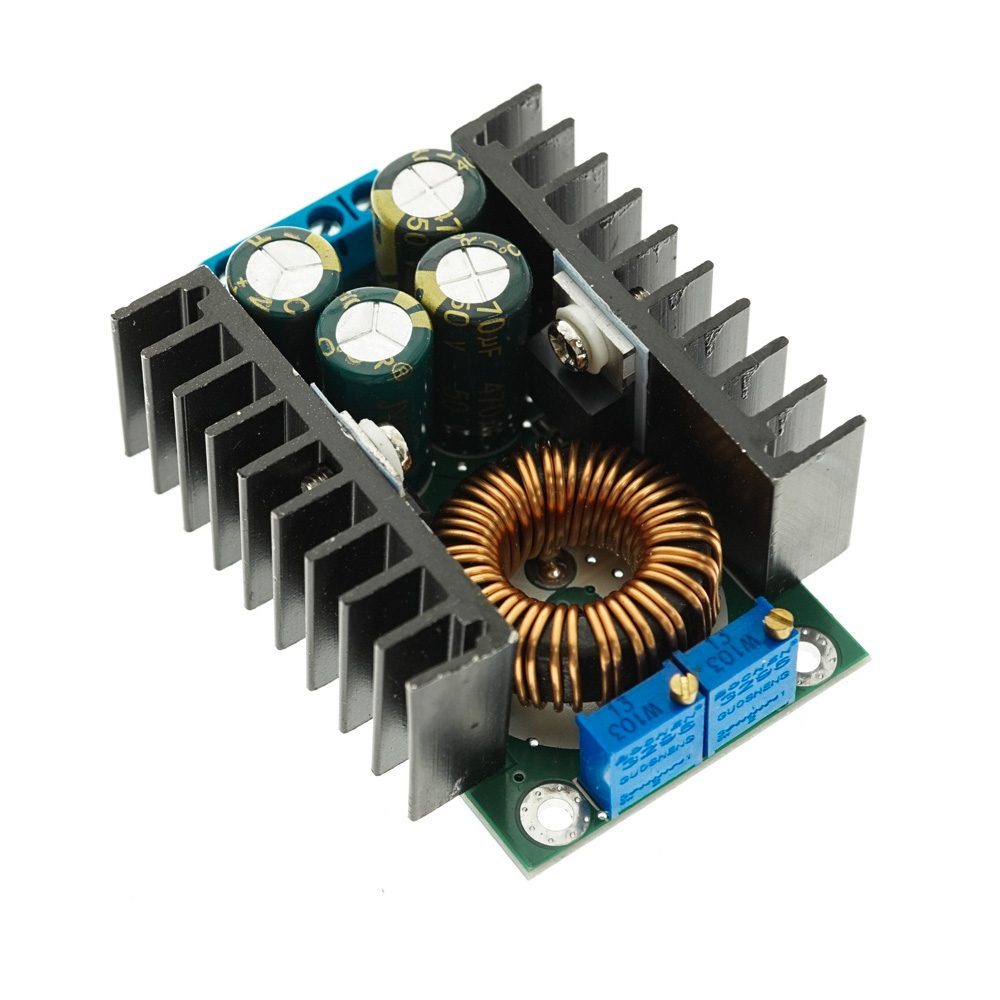

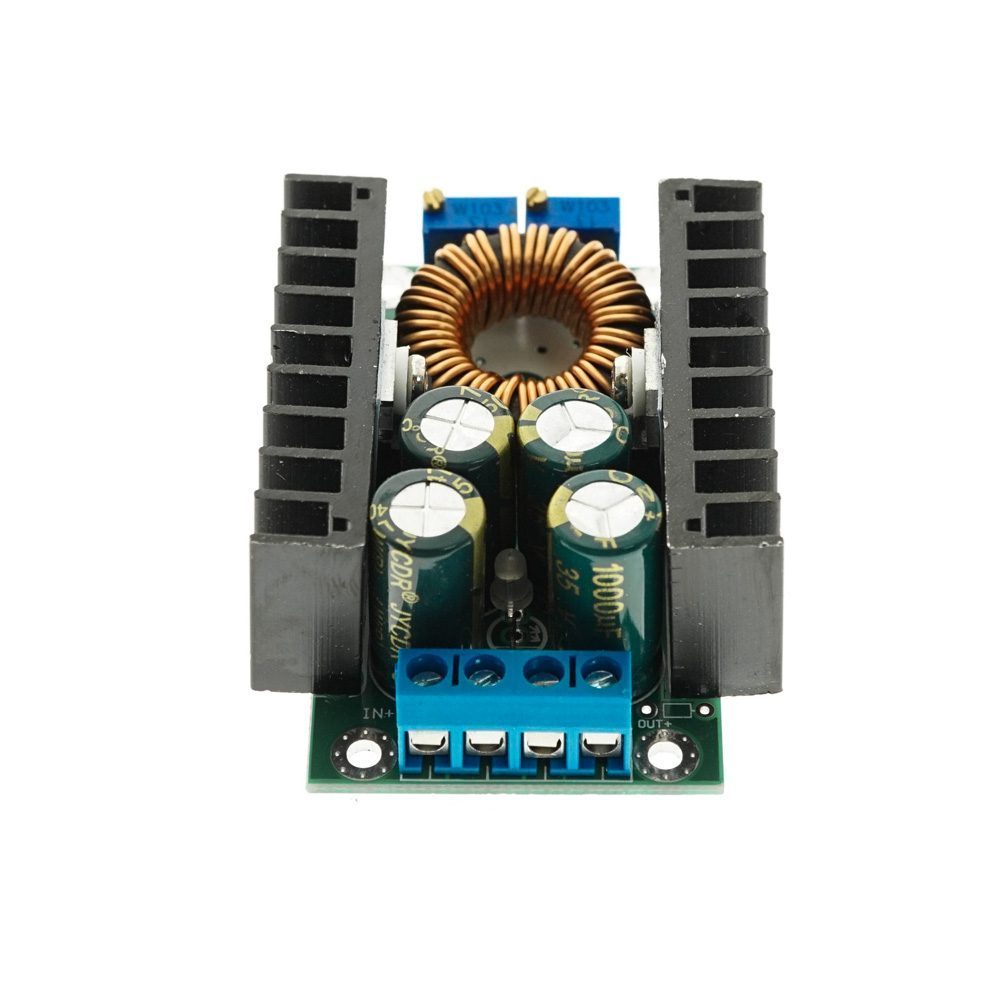

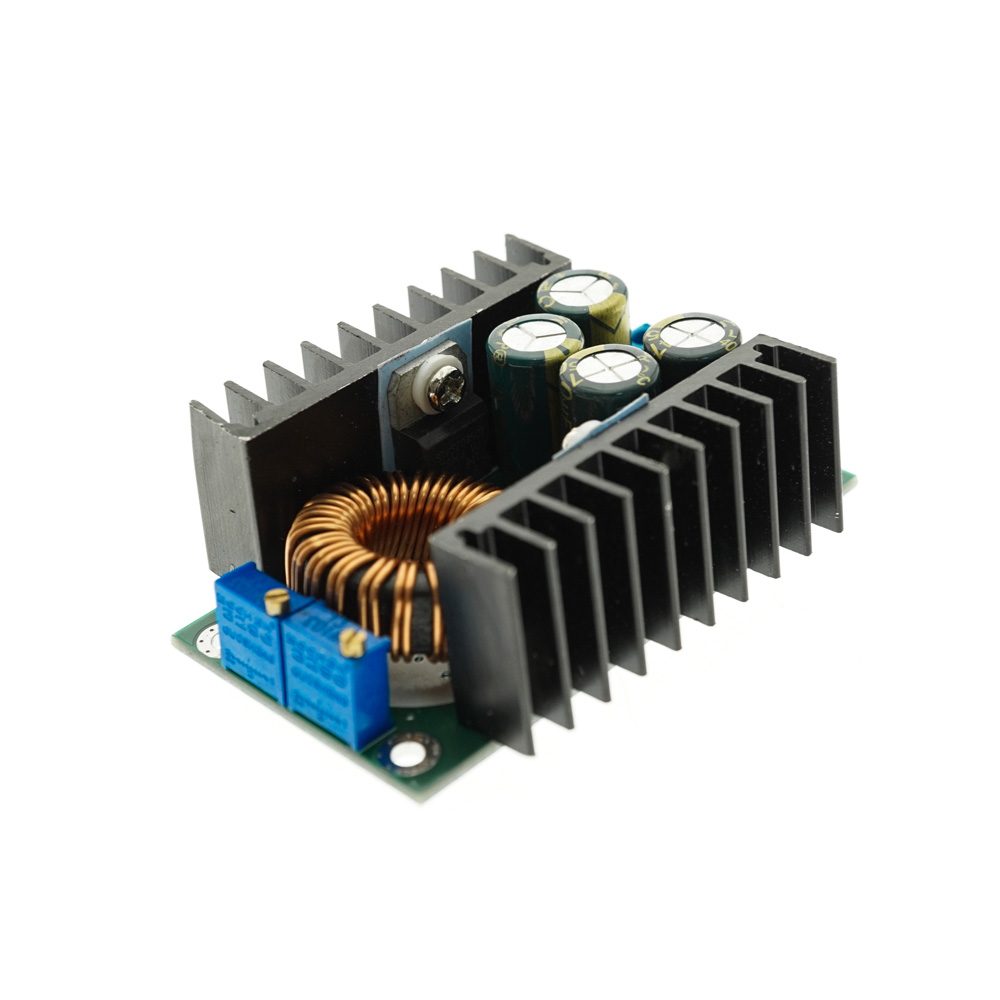

300W 10A DC-DC Step Down Buck Converter Input 7-40V to Output 1.2-35V Module

300W 10A DC-DC Step Down Buck Converter Input 5-40V to Output 1.2-35V Module is an adjustable +1.2 to 35vdc output, 10A current capacity. It is ideal for battery operated projects requiring a higher current regulated power supply.

This 10A  Buck Converter Module can be used to get adjustable output voltage ranges from 1.5V to 35V. The module provides a wide range of current output up to 10 A. With heat sink mounted it can easily manage to run high power application continuously (provided that for continuous high power output you need to use a cooling fan on the heat sink).

Features:

• Fixed lamp current is 0.1 times of constant current value (used to identify whether the battery is full when charging);
• A dedicated reference IC and a high-precision sampling resistor are used to make the constant current more stable (the temperature drift is less than 5% at a constant current of 5 degrees from 20 degrees to 60 degrees). Particularly suitable for LED drivers
• The output current is large, and the maximum output current can reach 10A, which meets most needs.
• 4 high frequency capacitors to effectively reduce output ripple and improve working stability
• Double heat sink design, MOS tube Schottky diode independent heat sink, good heat dissipation, mutual influence
• 3296 multi-turn potentiometer, high voltage and current regulation accuracy, good stability.
• Dedicated current sampling resistor The current sampling precision is high, the stability is good, and the temperature is small. LED is a must.
• Two-color indicator light, the working status is clear at a glance. Rechargeable.
• The voltage and current are all adjustable, and the adjustable power supply is good. The 10A current is large and the power is sufficient.

Specifications:

• Input Supply voltage (V): 7 ~ 40
• Output voltage (V): continuously adjustable (1.25 ~ 35)
• Output Current (A): 8A (10A maximum)
• Conversion efficiency:: 0.95
• Operating frequency (KHz): 300
• No-load current: Typical 20mA
• Load regulation: ± 1%
• Voltage Regulation: ± 1%

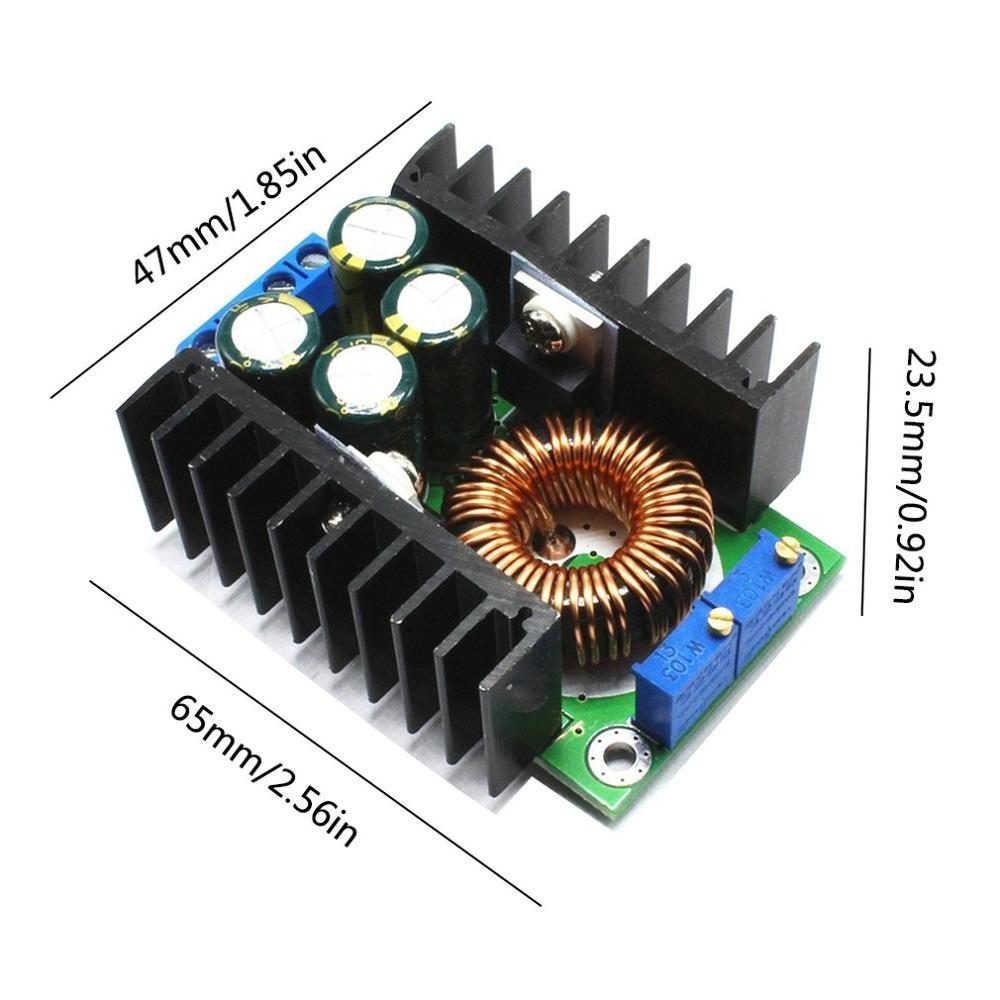

• Length (mm): 65
• Width (mm): 47
• Height (mm): 22
• Weight (gm): 70

Applications:

• High-power LED driver.
• Lithium battery(or lead accumulator) charge.
• Vehicle-mounted power supply.
• Low voltage system power supply.
• 6V, 12V, 14V, 24V battery charge.
• On-board laptop power supply.
• regulated power supply.
• Low voltage power supply system.

Package Includes:

• 1 x 300W 10A DC Step Down Converter Module
