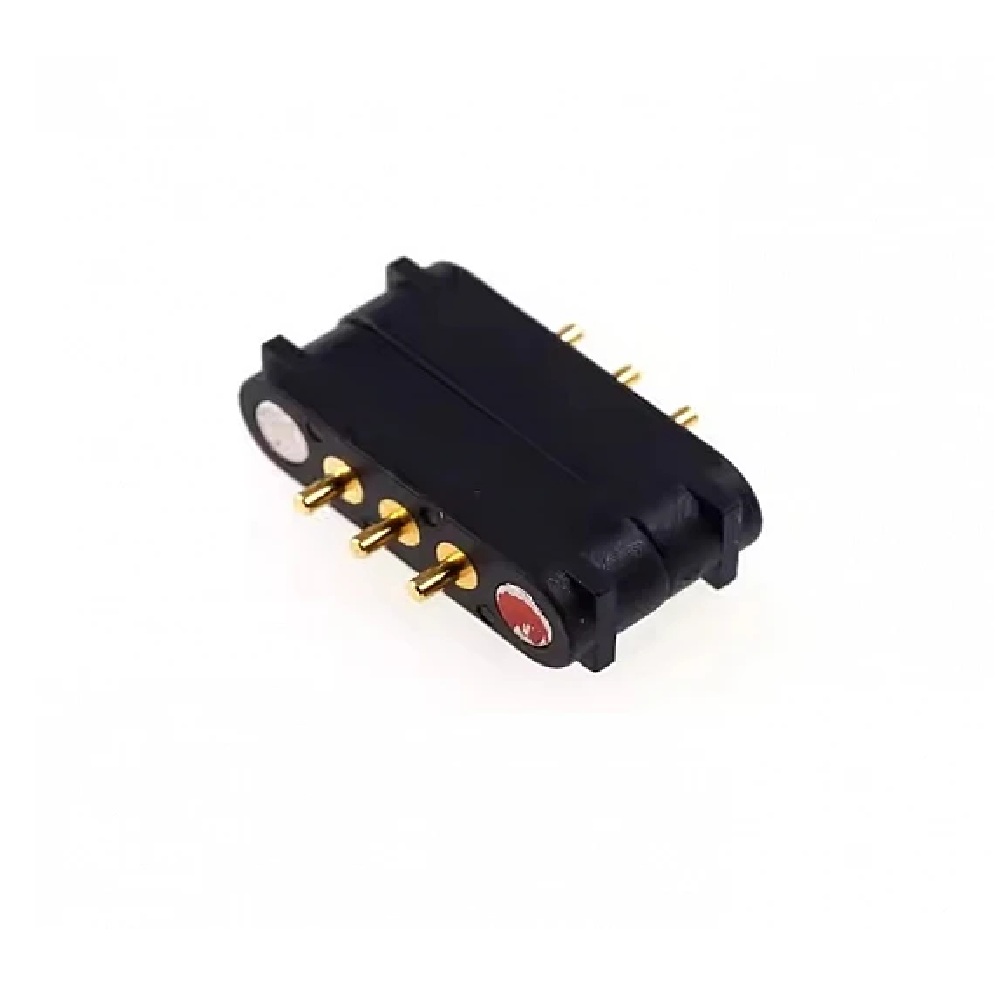

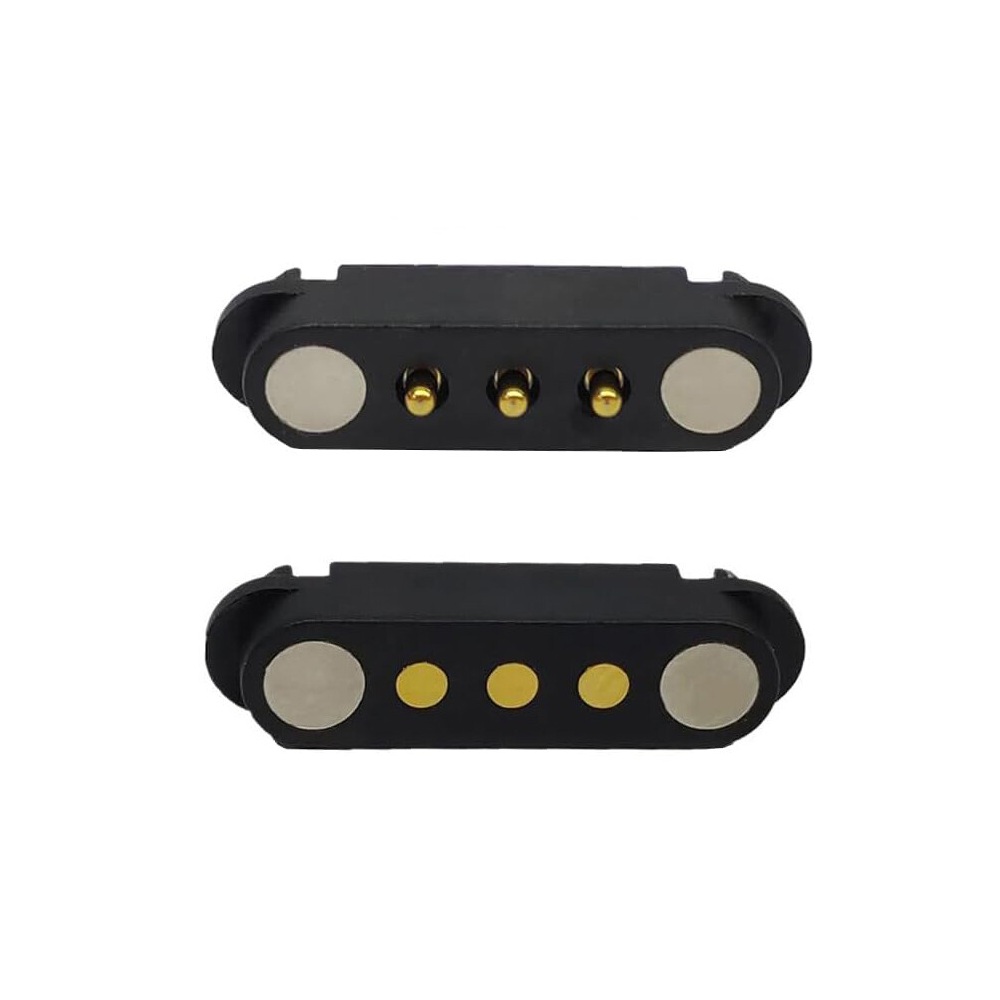

3Pin Magnetic Spring Loaded Pogo Pin Connector Pair

3Pin Magnetic Spring Loaded Pogo Pin Connector Pair sockets are reliable contact devices that create quick and secure electrical connections between two devices. Equipped with strong magnets on both male and female sockets, they automatically align and lock together when placed nearby, eliminating the need for manual adjustment. This ensures stable and durable connections, making them highly suitable for prototyping, testing, and consumer product integration.

The Magnetic Spring Loaded 3-Pin Connector Socket features a single-row design with 2.54mm pitch spacing and through-hole (DIP) mounting, making it easy to integrate into PCBs. Its gold-plated pins ensure excellent conductivity, wear resistance, and long service life.

Note: Magnetic spring-loaded pogo pin connector sockets are available in different pin counts.

Features:

• Compact 3-pin magnetic connector with 2.54mm pitch.
• Strong magnetic coupling for quick, hassle-free connections.
• Gold-plated spring-loaded pins ensure excellent conductivity and durability.
• Built from high-temperature, corrosion-resistant materials for reliability.
• Long service life with stable performance in repeated use.

Specifications:

• Product: Magnetic Pogo Pin Connector Socket
• Model: 3P
• Pin Configuration: 3P
• Pin Spacing: 2.54mm
• Mount Type: DIP (Through-Hole)
• Spring Loaded: Yes
• Magnetic Connection: Yes
• Material: Plastic + Metal
• Rated Voltage: 5V
• Rated Current: 1A

Applications:

• Consumer electronics like smartphones, tablets, wearables.
• Industrial testing and prototyping setups.
• Automotive electronics and communication devices.
• Medical devices such as docking stations and portable instruments.

Package Includes:

• 1 × 3P Magnetic Spring Loaded Pogo Pin Male Female Connector Socket
