7 inch Official Raspberry Pi Display with Capacitive Touchscreen
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil467-2This 7 inch Official Raspberry Pi Display with Capacitive Touchscreen gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects.
The 800 x 480 display connects via an adapter board which handles power and signal conversion. Only two connections to the Pi are required; power from the Pi’s GPIO port and a ribbon cable that connects to the DSI port present on all Raspberry Pis (except Raspberry Pi Zero and Zero W). Touchscreen drivers with support for 10-finger touch and an on-screen keyboard will be integrated into the latest Raspbian OS for full functionality without a physical keyboard or mouse.
Features:
- Turn your Raspberry Pi into a touch screen tablet, infotainment system, or standalone device.
- Truly interactive – the latest software drivers will support a virtual ‘on-screen’ keyboard, so there is no need to plug in a keyboard and mouse.
- Make your own Internet of Things (IoT) devices including a visual display. Simply connect your Raspberry Pi, develop a Python script to interact with the display, and you’re ready to create your own home automation devices with touch screen capability.
- A range of educational software and programs available on the Raspberry Pi will be touch enabled, making learning and programming easier on the Raspberry Pi.
- Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port.

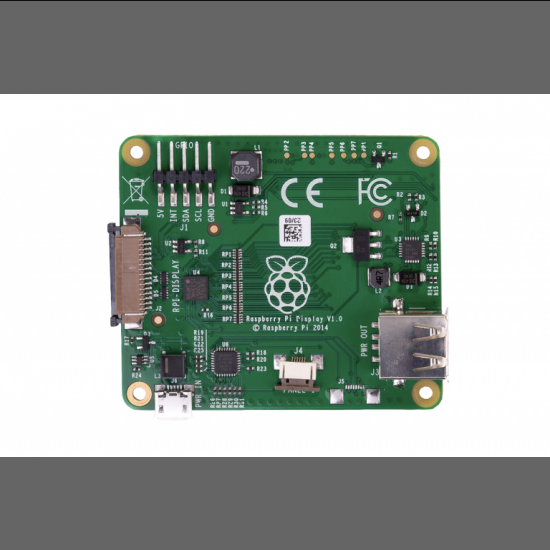

- Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi.
- Will require the latest version of Raspbian OS to operate correctly.
Specifications:
| Display | 7” Touchscreen |
| Screen Dimensions (mm) | 194 x 110 x 20 |
| Viewable screen size (mm) | 155 x 86 |
| Screen Resolution (pixels) | 800 x 480 |
| Touch | 10 finger Capacitive |
| Weight (gm) | 350 |

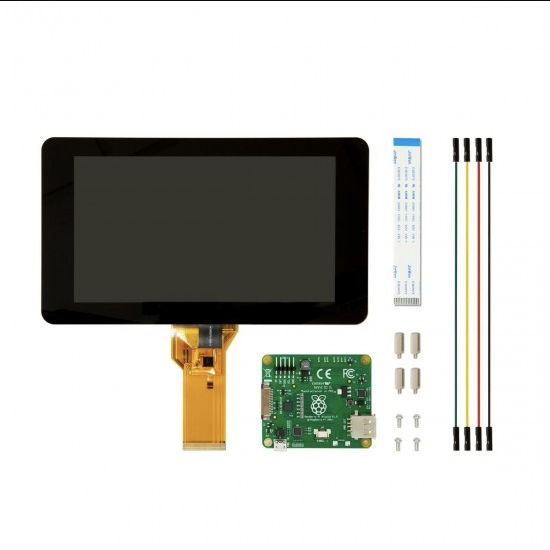

Package Includes:
- 1 x 7” Touchscreen Display.
- 1 x Adapter Board.
- 1 x DSI Ribbon cable.
- 4 x stand-offs and screws (used to mount the adapter board and Raspberry Pi board to the back of the display.
- 4 x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the 2Amp power is shared across both units).
