Advanced Johnson Geared DC Motor L Clamp (Bracket)

Advanced Johnson Geared DC Motor L Clamp (Bracket) is a Mounting Bracket designed for Johnson Geared Motor to mount it on the application firmly and securely. This Brackets are made from high-quality Hardened Mild Steel that gives them good strength and makes them sturdy.

Clamps are the fundamental chassis parts. You can fix your motors with these clamps according to your own wish, based on the type and size of the base you decide to make of the bot. This Mounting Brackets are designed with one thing in mind, boosting the speed of our customer’s design process by avoiding regular searches for the quality mechanical products at an affordable price.

The L Clamp bracket for Johnson Gear Motor is made up of 1.5mm thick Hardened Mild Steel which gives them excellent strength and stability. It has 3 mm diameter holes for attaching the motor to the bracket and 4mm diameter holes for mounting the bracket to the chassis or application.

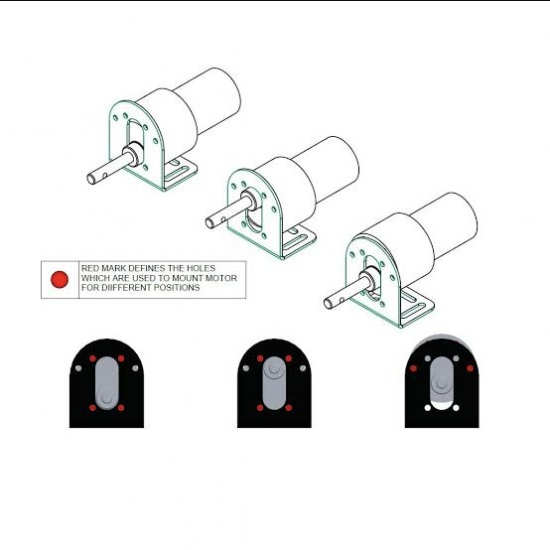

You can attach your Johnson Motor with this Bracket in 3 different ways depending upon your needs by utilizing the set of the six motor mounting holes. (for clear understanding, refer to the Mounting Position image)

Features :

• Made from High-Quality MS.
• Specially designed for Johnson Geared Motor.
• Possess good stability and durability.

Mounting :

• Motor mounting side: Height 48mm, Width 40mm;
• Bracket mounting side: Length 30mm, Width 40mm
• Motor Mounting Hole Dia. (mm) : 3 mm
• Weight (gm) : 32 grams
• The holes for Motor mounting: M3.
• Holes for Bracket mounting: M4.

Applications :

• DC motor position / velocity control
• Position and velocity servomechanisms
• Factory automation robots
• Numerically controlled machinery
• Computer printers and plotters

Note: Package includes only bracket. If you want Motor, then purchase it separately from techtonics.in

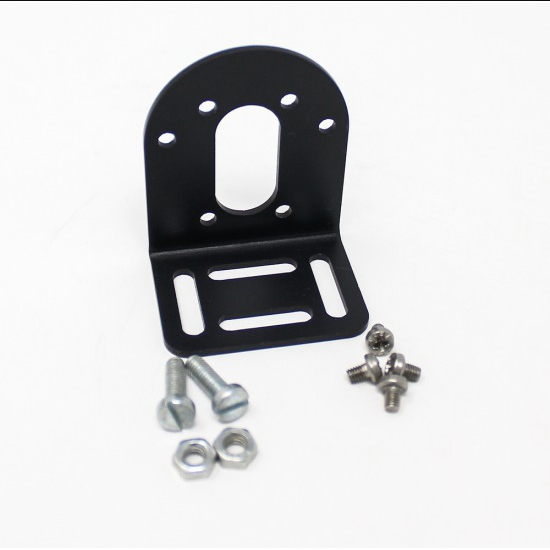

Package Includes :

• 1 x Bracket
• 4 x M3 x 4 Bolt for Motor Mount.
• 2 x M4 x 12 Bolt and Nut Set for Bracket Mount.
