Arduino Mega 2560 Atmega2560-16au + Cable for Arduino Mega 2560 + Transparent acrylic case for Arduino Mega 2560

Arduino Mega 2560 Atmega2560-16au + Cable for Arduino Mega 2560 + Transparent acrylic case for Arduino Mega 2560

Arduino is an open-source physical computing platform based on a simple i/o board and a development environment that implements the Processing/Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).

The Arduino Mega is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. Never fear for accidental electrical discharge, either since since the Mega also includes a plastic base plate to protect it!

The Mega 2560 R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Mega 2560 R3 works with all existing shields but can adapt to new shields which use these additional pins.

Specifications and Features :

Arduino Mega 2560:

• Programmer: Atmel
• ATmega2560 microcontroller.
• 54 digital input/output terminals (14 of which have programmable PWM outputs).
• 16 analog inputs.
• 4 UARTs (hardware serial ports).
• 16 MHz crystal clock.
• Boot-loader to allow downloading of  sketches via USB without having to go through other external writers.
• Powered by USB or via external PSU (not supplied). The device will automatically switch between power inputs.
• Heavy gold plate construction.
• Clock speed: 16 MHz.
• Flash Memory: 256 KB of which 8 KB used by bootloader.
• Operating voltage: 6 ~ 12v.
• Dimensions: 110 x 53 x 15 mm.
• Weight: 35 gm.

Cable for Arduino Mega 2560:

• Length 1 foot
• Hot Pluggable.
• Fully compatible with the PC.
• Molded strain relief and PVC overmolding to ensure a lifetime of error-free data transmissions.
• Aluminum under-mold shield helps meet FCC requirements on KMI/RFI interference.
• Foil and braid shield complies with fully rated cable specifications reducing EMI/FRI interference.
• For Error-Free High-Performance Transmission.

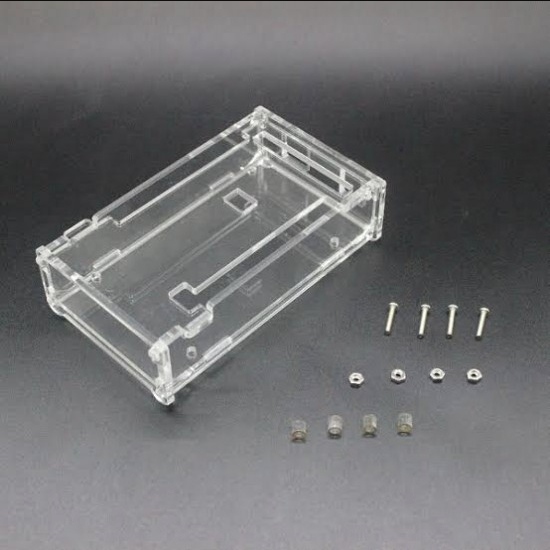

Transparent acrylic case:

• Compatible with Arduino MEGA2560 R3 (unassemble).
• The cover can be adjusted.
• Color: Transparent.
• Material: Acrylic.

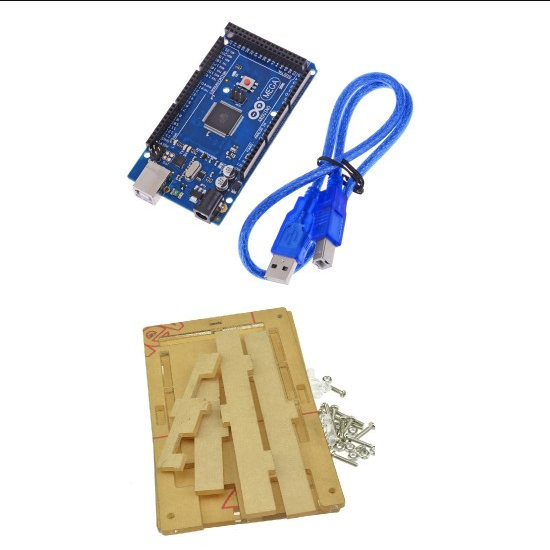

Package Includes :

• 1 x Arduino Mega 2560 ATMEGA2560-16AU Board.
• 1 x Cable for Arduino Mega 2560.
• 1x Transparent Acrylic case for Arduino Mega 2560.
