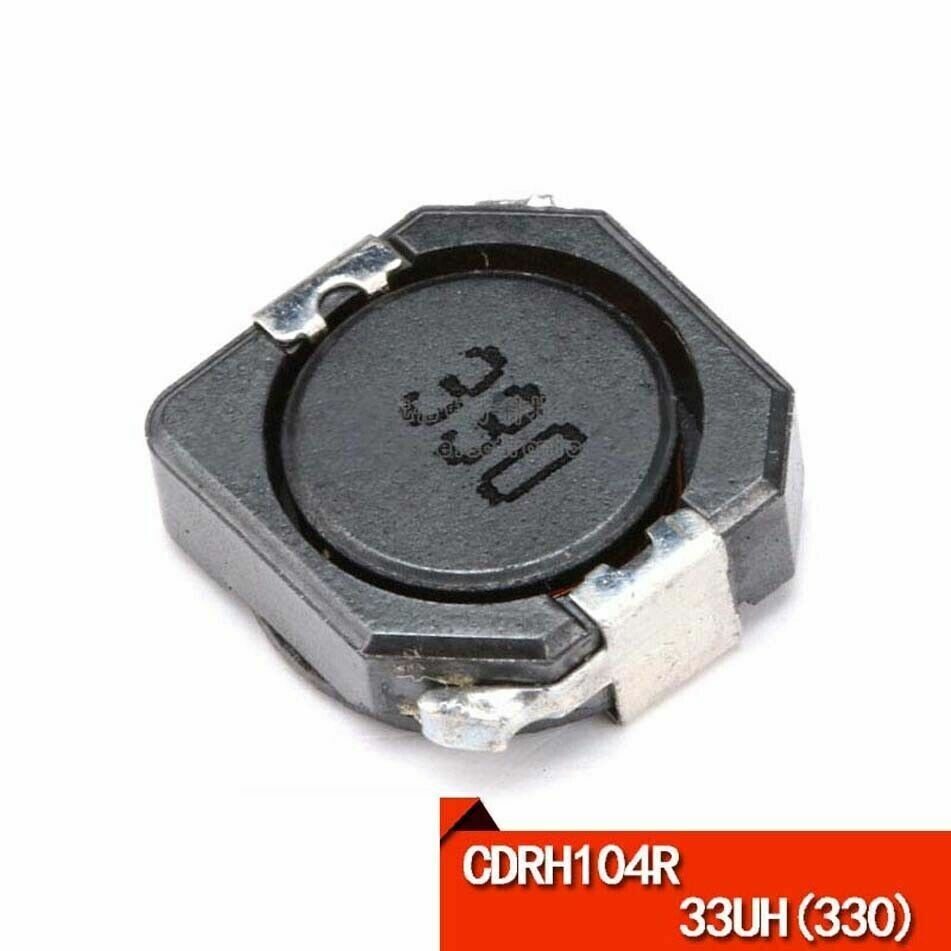

CDRH104R 33uH Power Inductor

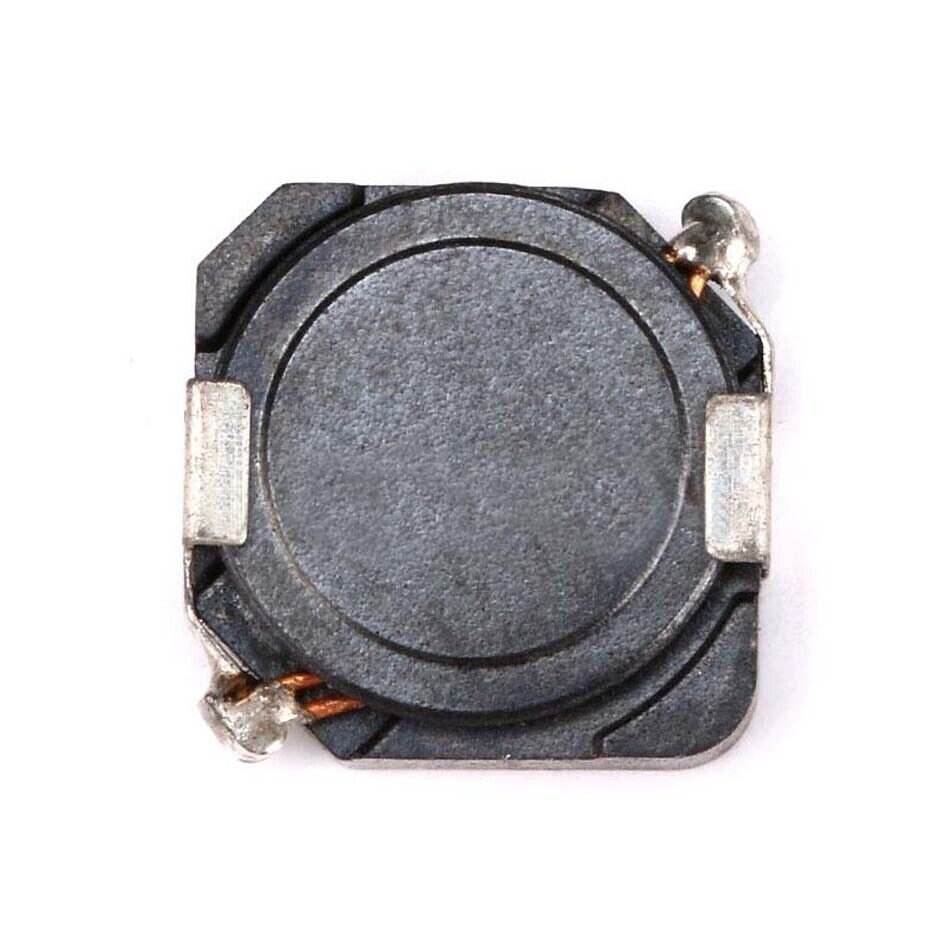

CDRH104R 33uH Power Inductor is a passive electronic device. It has a ferrite drum and copper wire wound on it. Terminals of this inductor, also called pads are designed for surface mounting. Also, the inductor has magnetic shielding.

Moreover, this inductor has the highest moisture sensitivity level of 1.

Features:

• Ferrite core drum construction.
• Magnetically shielded.
• Moisture sensitivity level: 1.
• Operating temperature range: -40℃～+100℃  (including coil’s self temperature rise)
• Storage temperature range: -40℃～+100℃

Specifications:

• Core: Ferrite
• Inductance (μH): 33
• Tolerance (%): 30
• Current Rating (A): 2.2
• DC Resistance (DCR) (mΩ) at 20℃ : 93

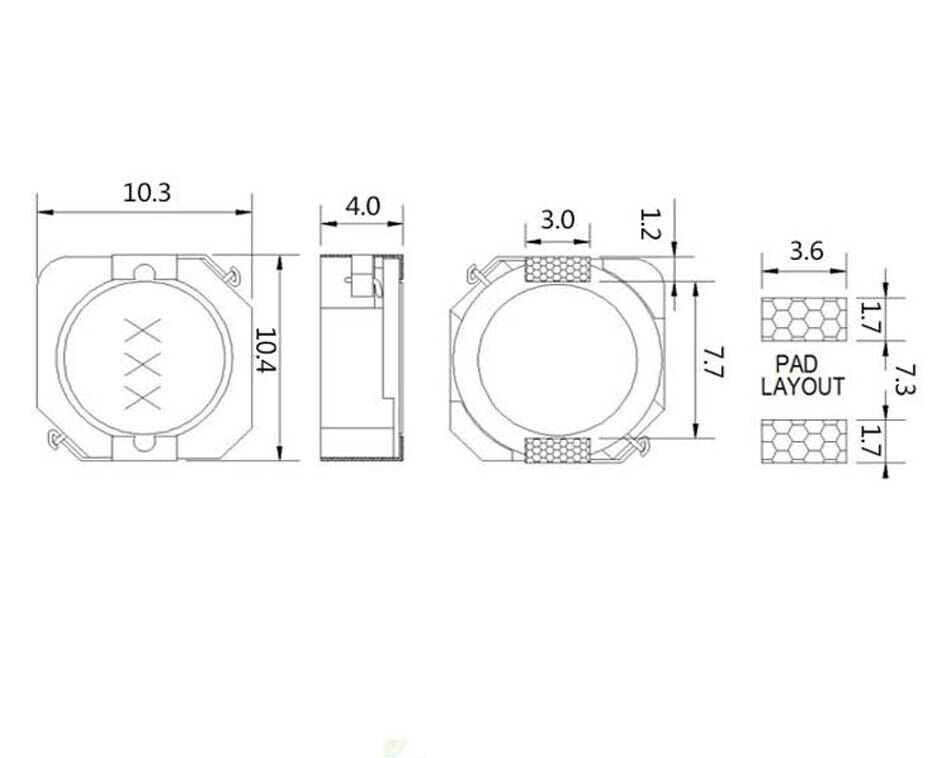

• Length (mm): 10
• Width (mm): 10
• Height (mm): 4
• Weight (gm): 1 (approx)

Applications:

• Ideally, this inductor finds its use in notebook PCs, Game Machines, etc. as DC-DC converter inductor.

Package Includes:

• 1 x CDRH104R 33μH Power Inductor
