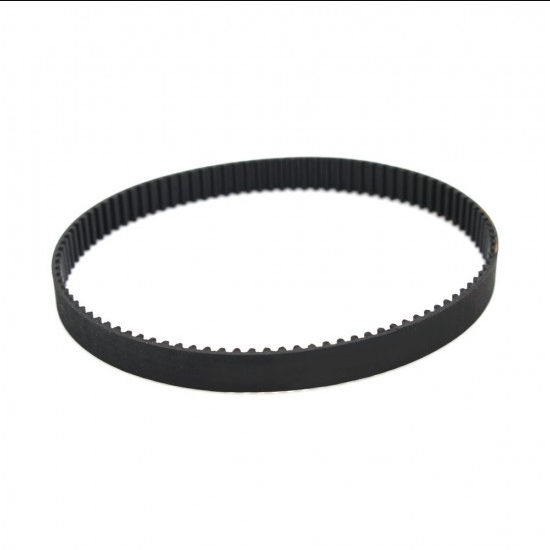

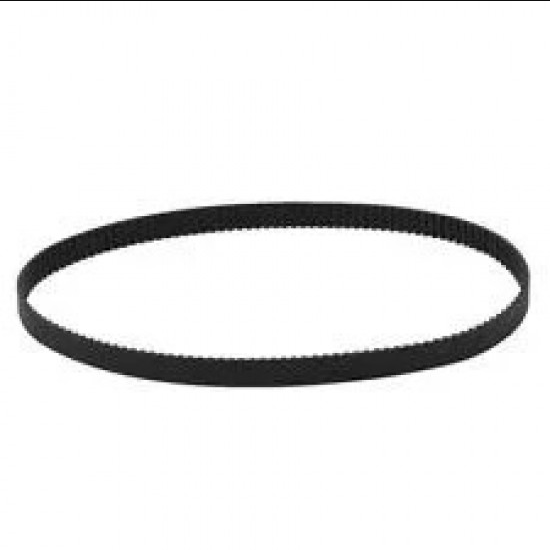

Closed Loop 200mm Length 6mm Width GT2 Timing Belt for 3D Printer
Closed Loop 200mm Length 6mm Width GT2 Timing Belt for 3D Printer
This is GT2 Timing Belt 200mm Width-6mm Closed-Loop Rubber Belt for 3D Printer. The Power Grip GT2 system is an extension of the HTD system with greater load-carrying capacity.
HTD drive clearance, using small diameter pulleys, is approximately four times greater than an equivalent GT2 timing belt drive.
As smaller diameter pulleys are used, the clearance required to operate properly is increased. Circular arc tooth profile, tooth space is small, suitable for straight line driving.
Specifications:
|
Material |
Neoprene Rubber With Fiberglass Core |
|
Shape |
Closed Loop |
|
Width (mm) |
6 |
|
Total Length(mm) |
200 |
|
Teeth Quantity |
100 |
|
Belt Height (mm) |
1.52 |
|
Tooth Height (mm) |
0.76 |
|
Pitch (mm) |
2 |
Package Includes :
- 1 x GT2 Timing Belt 200mm Width-6mm Closed-Loop Rubber Belt for 3D Printer
