Combo Kit - MY1016Z2 24V 250W Geared Motor Ebike, Electric Bicycle Kit
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary

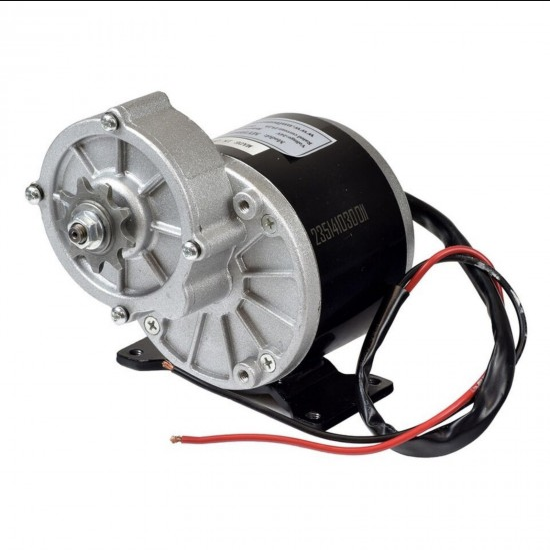

SKU: Anil863MY1016Z2 24V 250W Motor with E-Bike Combo Kit is the complete set of e-Bike Motor, Motor controller, Twist throttle gear and Brake Lever. This combo made with compatibility with each other so you do not need to put efforts to choose them individually for your project.
This popular reduction motor is simply the most commonly used motor for Scooters, Bikes and quad's available in the market! It is normally found in the better quality quads and scooters on the market and is classed as a mid range combination.
They are quite powerful for their small size and extremely reliable. We've sold these for so many different applications that they were never designed for, but the robustness of the build makes them just go and go and go etc!
Features :
- 24 Volt DC Operation
- Permanent Magnet DC Motor
- Direct Drive (No Free Spooling)
- Suitable for forwarding and Reverse Operations
- Base Mount Model
- 9 Tooth Sprocket for 1/2″ x 1/8″ Pitch Chain
- This motor is capable of rotation in either clockwise or counterclockwise by reversing the motor’s power wires.
- For Chain Size: Pitch 0.5in; Roller Diameter 0.3in; Roller Width 0.16in
Specifications MY1016Z
|
Model |
MY1016Z2 |
|
Rated Current(A) |
Full load current: 13.4A. No Load Current: 2.2A. |
|
Voltage |
24V |
|
No Load RPM (Base Motor) |
3850 RPM |
|
Rated Load RPM (After Gear Reduction) |
400 RPM |
|
Rated Wattage |
250 Watt. (0.33 Horsepower) |
|
Gear Ratio |
9.78:1 |
|
Rated Torque |
22 N.m (220 kg-cm) |
|
Min. Reduction Ratio |
9.78 |
|
Gearbox |
Yes. |
|
Efficiency |
>78% |
Package Includes -
- 1pcs x MY1016Z2 DC 24V 250W motor
- 1pcs x Motor controller
- 1pcs x Chain

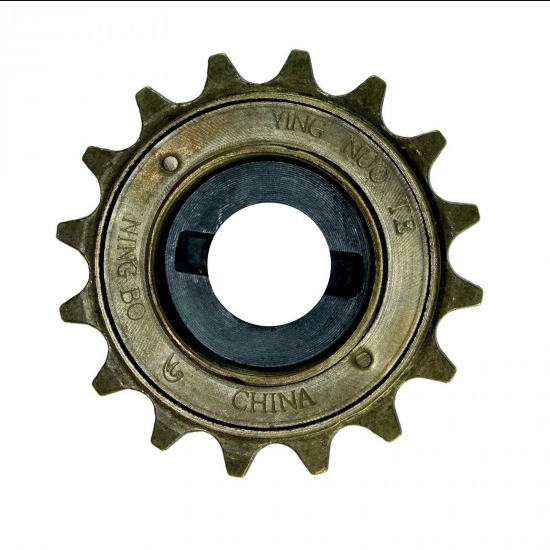

- 1pcs x Freewheel
- 1pcs x Freewheel adapter
- 1pcs x Mounting plate with bolts
- 1pcs x Throttle handle & Brake lever
- 1pcs x Headlight
- 1pcs x Switch & key
- 1pcs x 18cm axis
Please note - This kit does not include batteries and charger.
