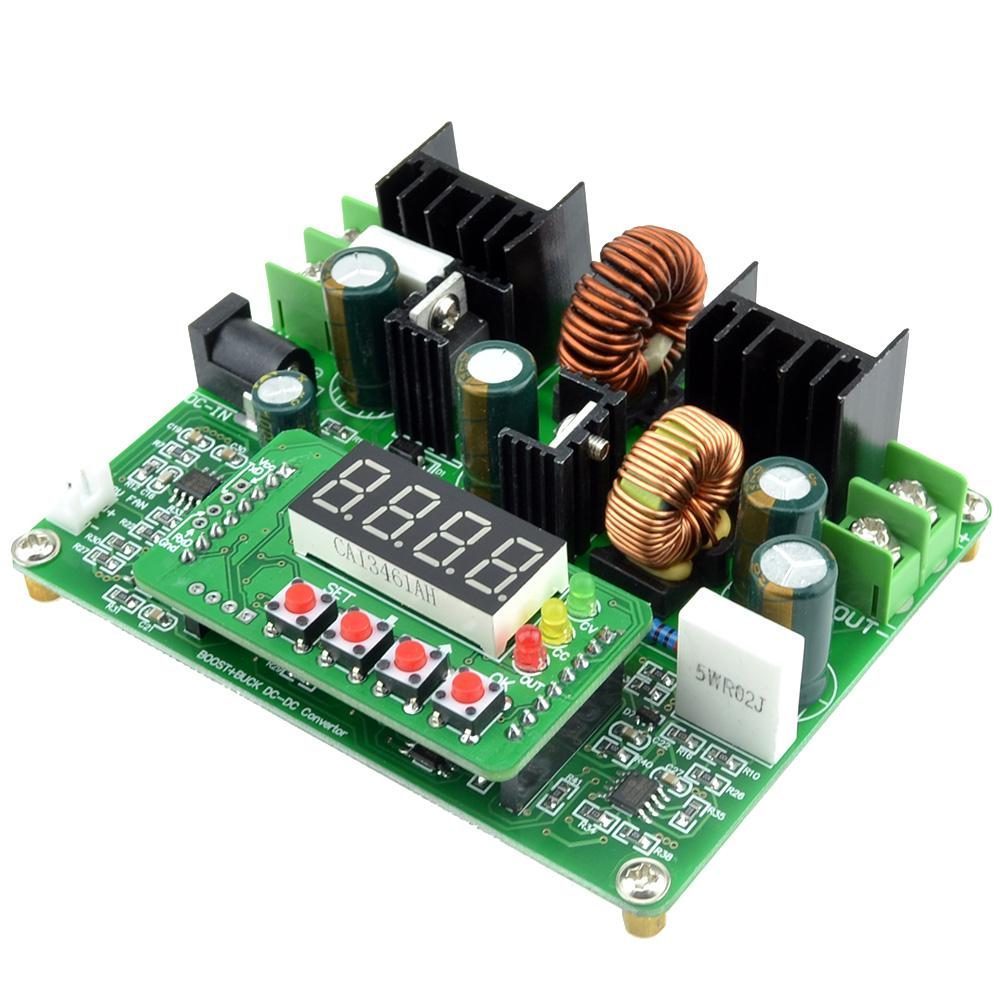

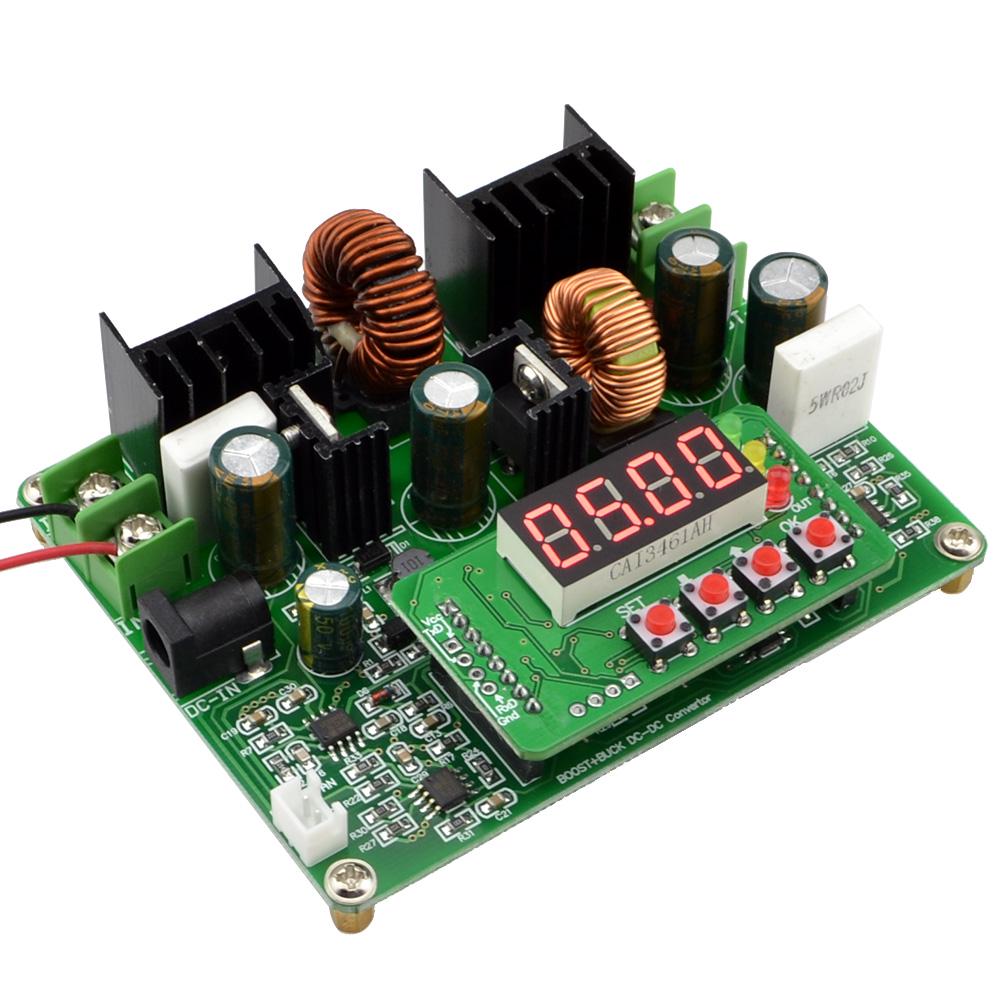

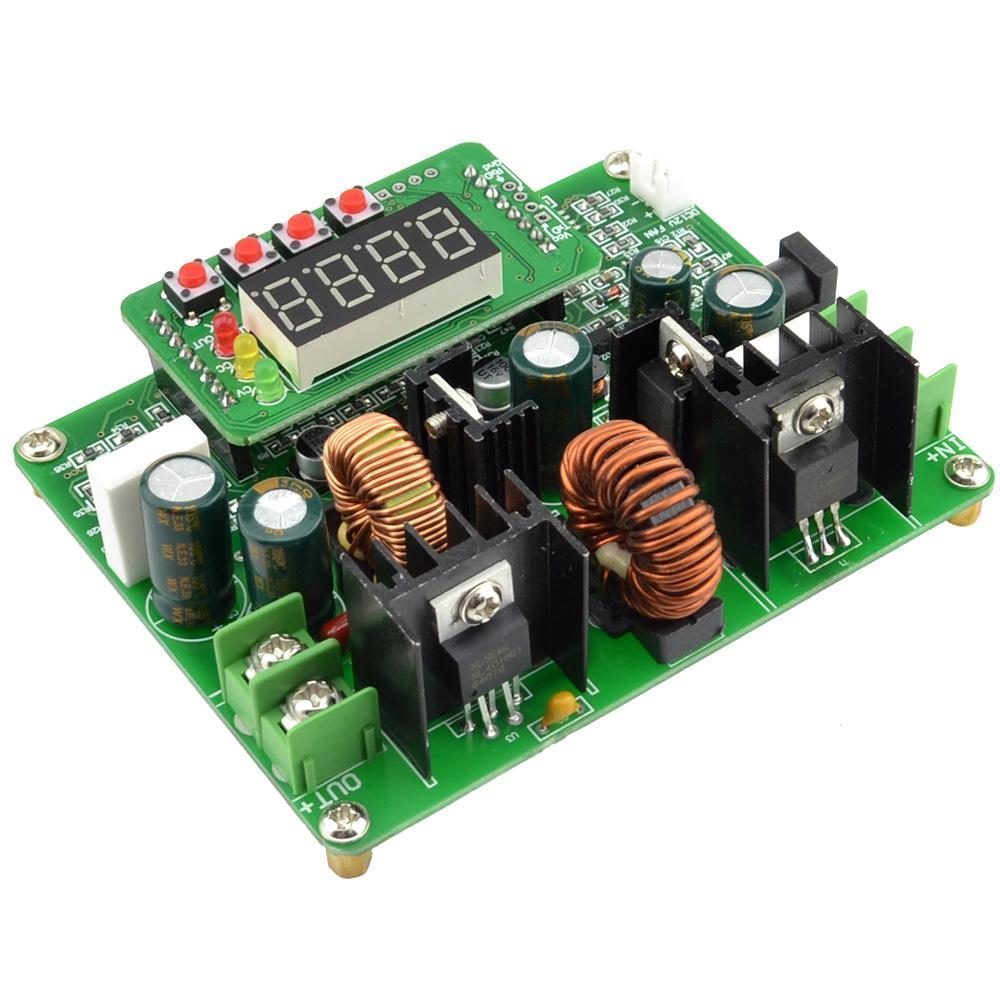

D3806 CNC DC Stabilized Constant Current Power Supply Adjustable Boost Module 38V 6A Charger

This is a D3806 CNC DC Stabilized Constant Current Power Supply Adjustable Boost Module 38V 6A Charger. The input voltage of this Module is about 10- 40 volt and the output voltage is about 0-38 Volt. The module has 10 groups of storage location, can store and bring up the parameters at any time. It equipped with four of the eight period LED digital tube, which can real-time display voltage, current, power, capacity and other parameters. At the same time, the machine has automatic output after electrify, automatic take turns to display parameters and other functions, you can open or close it according to the needs.

Features:

• Digital display, convenient and easy to use
• Constant voltage and constant current state
• OUT,CV and CC indicator light
• Adjust output voltage and current value accurately
• Automatic/manual switch voltage, current, power, capacity and other parameters display
• It can be set whether automatic output or not after electrify
• It can be set whether take turns to display voltage, current, power and capacity or not after output
• 10 groups of storage location, free storage and bring up
• One key to save voltage and current value

Specifications:

• Model: D3806
• Input voltage: 10V ~ 40V
• Input current: 0~8A
• Output voltage: 0 ~ 38V
• Output current: 0 ~ 6A
• Voltage regulation/display resolution: 0.01 V
• Current regulation/display resolution: 0.001A
• minimum display resolution of power: 0.001 W
• minimum display resolution of capacity: 0.001AH
• Conversion efficiency: up to 80%
• output ripple: ≦50 mV
• Working temperature: – 40℃~ + 85 ℃
• Working frequency: 150 KHz
• Length (mm): 100
• Width (mm): 80
• Height (mm): 29
• Weight (gm): 146

Package Includes:

• 1 x D3806 CNC DC Stabilized Constant Current Power Supply Adjustable Boost Module 38V 6A Charger
