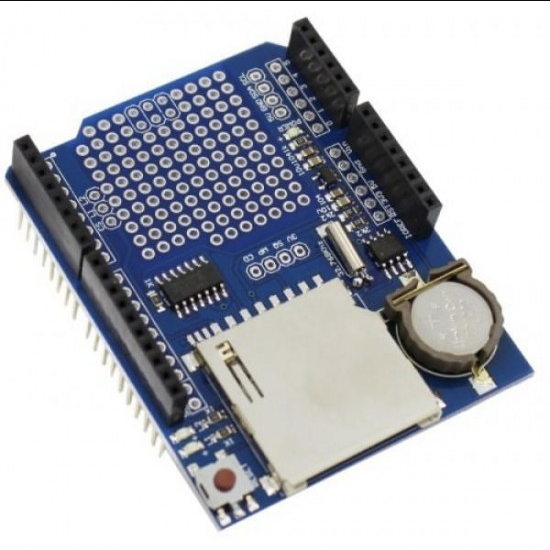

Data Logger module Logging Shield data Recorder Shield

A dedicated and well-designed data logging shield for Arduino. Data Logger module Logging Shield data Recorder Shield is easy to assemble and customize, also equipped with extensive documentation and libraries. SD card interface works with FAT16 or FAT32 formatted cards. 3.3v level shifter circuitry prevents damage to your SD card. Real time clock (RTC) keeps the time going even when the Arduino is unplugged. The battery backup lasts for years. Works with Arduino UNO, Duemilanove, Diecimila, Leonardo or ADK/Mega R3 or higher. ADK/Mega R2 or lower are not supported

Features:

• SD card interface works with FAT16 or FAT32 formatted cards. 3.3v level shifter circuit prevents damage to your SD card
• Real time clock (RTC) keeps the time going even when the Arduino is unplugged. The battery backup lasts for years
• Included libraries and example code for both SD and RTC mean you can get going quickly Prototyping area for soldering connectors, circuitry or sensors.
• Onboard 3.3v regulator is both a reliable reference voltage and also reliably runs SD cards that require a lot of power to run
• Works with Arduino UNO, Duemilanove, Decimila, Leonardo or ADK/Mega R3 or higher. ADK/Mega R2 or lower are not supported
• Size: 68 x 53 x 23 mm (approx)

Note: Battery is CR1220 3V, we ship without battery

Package Includes:

• 1 x Data Logger module Logging Shield data Recorder Shield

Useful Resources:

• User Manual
