DC 3-6V Micro Submersible Mini Water Pump For Fountain Garden
memory Technical Parameters & Datasheet Summary

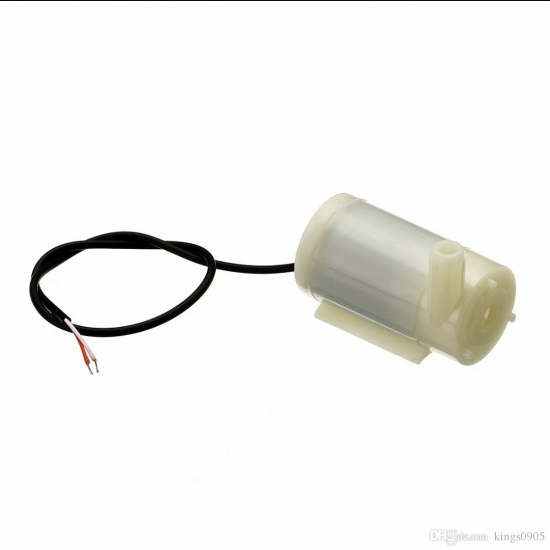

SKU: Anil707Micro DC 3-6V Micro Submersible Mini Water Pump is best for making DIY project and also used for Fountain Garden. This is a low cost, small size Submersible Pump Motor which can be operated from a 3 ~ 6V power supply. It can take up to 120 liters per hour with very low current consumption of 220mA. Just connect tube pipe to the motor outlet, submerge it in water and power it.
Make sure that the water level is always higher than the motor else Dry run may damage the motor due to heating and it will also produce noise.
Features:
- DC 3V to 6V submersible pump
- Micro mini submersible water pump 3v to 6v
- DC water pump for DIY
- DC pump for HOBBY kit
Specifications:
|
Operating Voltage(VDC) |
3 to 6 |
|
Operating Current (mA) |
130 to 220 |
|
Flow Rate (L/H) |
80 to 120 |
|
Maximum Lift (mm) |
40 to 110 |
|
Continuous Working Life (hours) |
500 |
|
Driving Mode |
DC, Magnetic Driving |
|
Material |
Engineering Plastic |
|

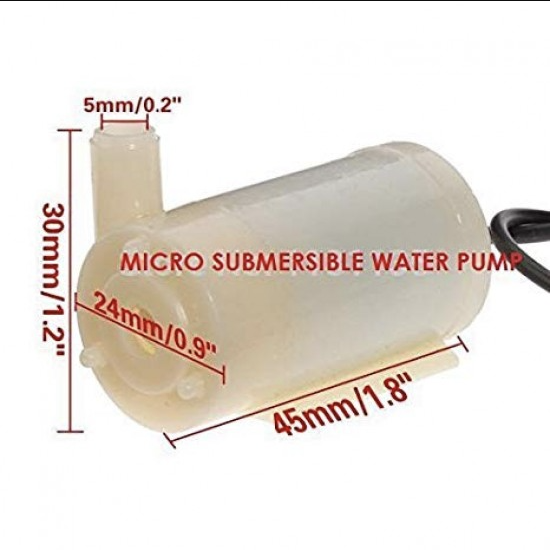

Outlet Outside Diameter (mm) |
7.5 |
|
Outlet Inside Diameter (mm) |
5 |
|
Weight |
20 grams |
Package Includes :
- 1 x DC 3-6V Micro Submersible Mini Water Pump
